Jung 42911 ST Series Operating Instructions Manual

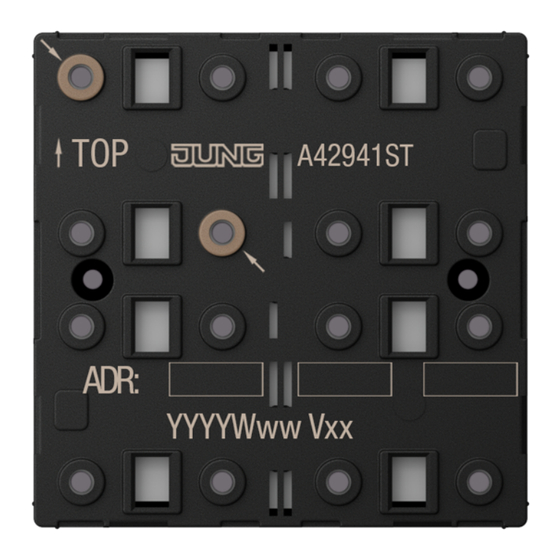

Universal push-button module, 1-gang
Hide thumbs

Advertisement

Quick Links

Download this manual

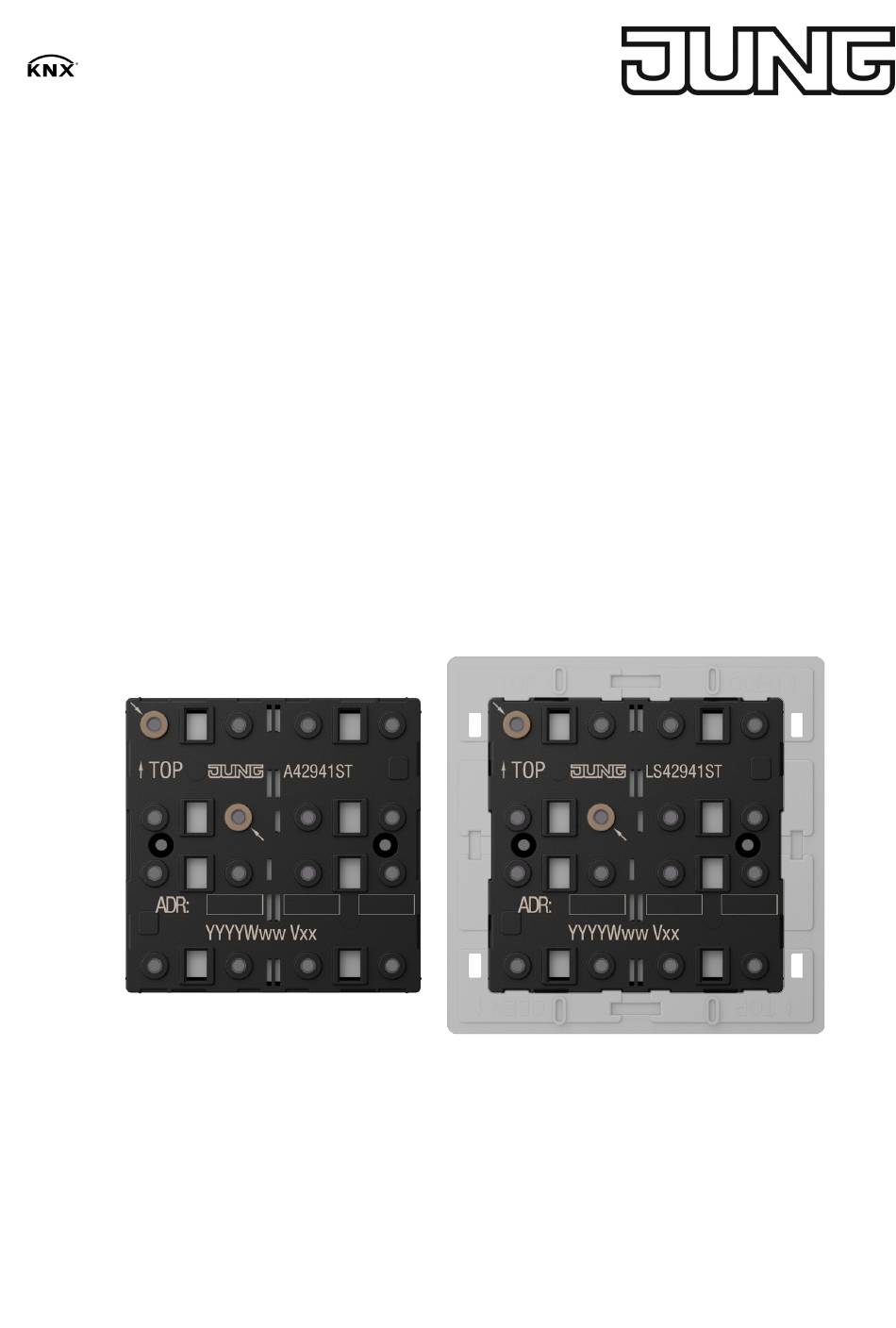

Operating instructions
Universal push-button module, 1-gang
Art. no. xx 42911 ST
Universal push-button module, 2-gang
Art. no. xx 42921 ST
Universal push-button module, 3-gang
Art. no. xx 42931 ST
Universal push-button module, 4-gang
Art. no. xx 42941 ST
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Product image non-binding
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
kundencenter@jung.de
04.10.2024
32407623 j0082407623
www.jung.de

Advertisement

loading
Need help?

Need help?

Do you have a question about the 42911 ST Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jung 42911 ST Series

Summary of Contents for Jung 42911 ST Series

  • Page 1 Art. no. xx 42921 ST Universal push-button module, 3-gang Art. no. xx 42931 ST Universal push-button module, 4-gang Art. no. xx 42941 ST ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Product image non-binding Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
  • Page 2 Universal push-button module Table of contents Safety instructions ...................... 3 System information ...................... 3 Intended use ........................ 3 Product characteristics .....................  4 Operation ..........................  4 Information for electrically skilled persons ................  5 Mounting and electrical connection................  5 Commissioning ......................  7 6.2.1 Safe-state mode ..................
  • Page 3 The device can be updated. Firmware can be easily updated with the Jung ETS Ser- vice App (additional software).
  • Page 4 Universal push-button module Product characteristics – The push-button sensor functions switching, dimming, controlling blinds, value transmitter, calling up moods, etc. – Measurement of the room temperature – Temperature measurement optionally with internal device sensor and external sensor connected via communication object –...
  • Page 5 Universal push-button module Information for electrically skilled persons Mounting and electrical connection DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Cover up live parts in the installation environment. Snapping on the adapter frame ￭ With the adapter frame (3) in the correct orientation, snap it from the front onto the push-button sensor module (4) (see figure 1).
  • Page 6 Universal push-button module When the push-button sensor extension module is used (see figure 2): preferably mounted vertically. Use large supporting frame (14). When mounting on only one ap- pliance box, countersink the lower screws into the wall, e.g. with a ø 6 x10 mm hole. Use supporting frame as template.
  • Page 7 Universal push-button module The device should be used in an air-tight appliance box. Drafts cause incorrect temperature values ​ ​ t o be measured. Commissioning Preconditions in secure operation – Secure commissioning has been activated in the ETS. – Device certificate entered/scanned or added to the ETS project. A high resolu- tion camera should be used to scan the QR code.
  • Page 8 Universal push-button module ￭ Programming the physical address. The operation LED (13) returns to its previous state – off, on, or flashing slowly. ￭ Programming the application program. The operation LED flashes slowly (approx. 0.75 Hz) while the application pro- gram is programmed.
  • Page 9 Universal push-button module Performing a master reset Prerequisite: The safe-state mode is activated. ￭ Press and hold the button at the top left and the button at the bottom right (see figure 3) for more than five seconds until the operation LED flashes quickly (approx.
  • Page 10 Universal push-button module State of operation Operation LED Status LED Full-surface operation Approx. 8 Hz Approx. 8 Hz Technical data KNX medium TP256 Safety KNX Data Secure (X-mode) Commissioning mode S mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX Without extension module 5 ...
  • Page 11 Universal push-button module ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 32407623 11 / 11 04.10.2024 j0082407623...
