Jung KNX 5091 TSM Operating Instructions

Universal push-button module
Universal push-button module, 1-gang
Art. No. 5091 TSM
Universal push-button module, 2-gang
Art. No. 5092 TSM
Universal push-button module, 3-gang
Art. No. 5093 TSM
Universal push-button module, 4-gang
Art. No. 5094 TSM
Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Use only the enclosed plastic screws for fastening to the supporting frame! Otherwise
safe operation cannot be ensured. Electrostatic discharges can cause defects in the
device.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Status LED
(2) Operation LED
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest versions of product database and
the technical descriptions are available on our website.
32587403
J:0082587403

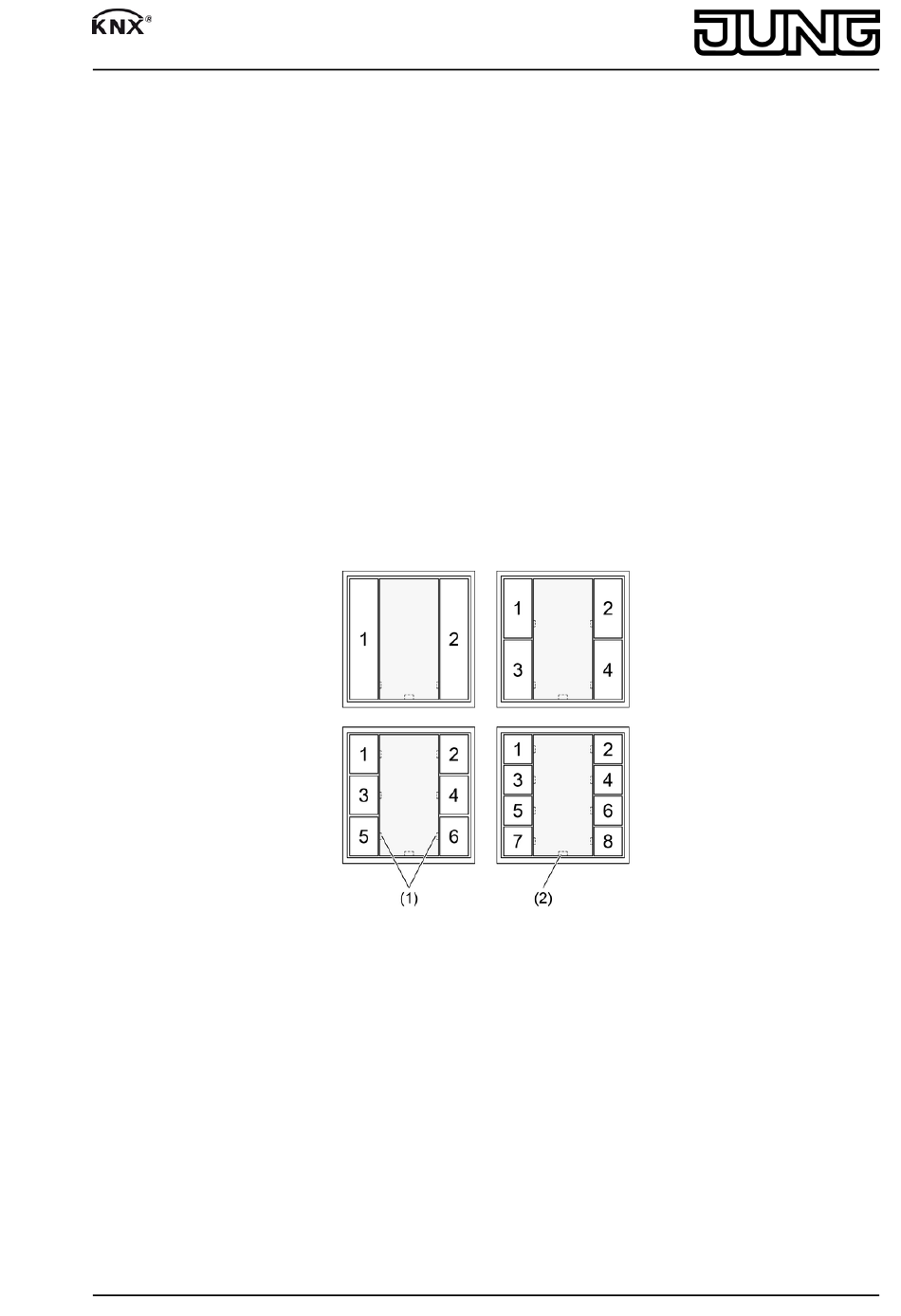

Figure 1: Push button modules Universal – front view
