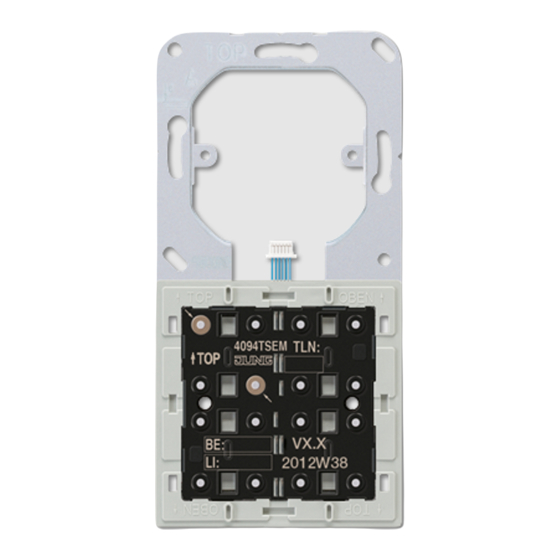

Universal push-button module with integrated bus coupler
Universal push-button module with BCU, 1-gang
4091 TSM
Universal push-button module with BCU, 2-gang
4092 TSM
Universal push-button module with BCU, 3-gang
4093 TSM
Universal push-button module with BCU, 4-gang
4094 TSM
Operationsmanual
1 Safety instructions
Electrical equipment must be installed and fitted by qualified electricians.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Electrostatic discharges can cause defects in the device. Use only the supplied plastic
screws.
These instructions are an integral part of the product, and must remain with the end cus-
tomer.
2 Function
System information
This device is a product of the KNX/EIB system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper understand-
ing.
The function of this device depends upon the software. Detailed information on loadable soft-
ware and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database.
Planning, installation and commissioning of the device are carried out with the aid of KNX-certi-
fied software. Full functionality with KNX commissioning software version ETS3.0d onwards.
An updated version of the product database, technical descriptions and conversion programs
and other auxiliary programs are available on our Internet website.
Intended purpose
-
Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperat-
ures, calling up and saving light moods, etc.
-
Installation in appliance box to DIN 49073
Product characteristics
-
The push-button functions switching, dimming, controlling blinds, valuators, calling up
moods, etc.
-
Completion with keyset
-
Two red status LEDs for each control surface
-
A blue operation LED as an orientation light and to indicate the programming status
-
Integrated bus coupling unit
-
One or two functions per control surface
-
Push-button function or rockers function, vertical or horizontal
-
Connection of push-button expansion module to expand the universal push-button sensor
module to include four additional buttons
3 Operation
Operating a function or load
Depending on the programming, a control surface can have up to three functions assigned to
it – upper/left, lower/right, entire surface. Operation depends on the specific function.
o
Switching: Short press on the corresponding control surface.
32566703
J:0082566703
1/6
22.04.2008
Advertisement
Table of Contents
Related Manuals for Jung 4091 TSM
Summary of Contents for Jung 4091 TSM

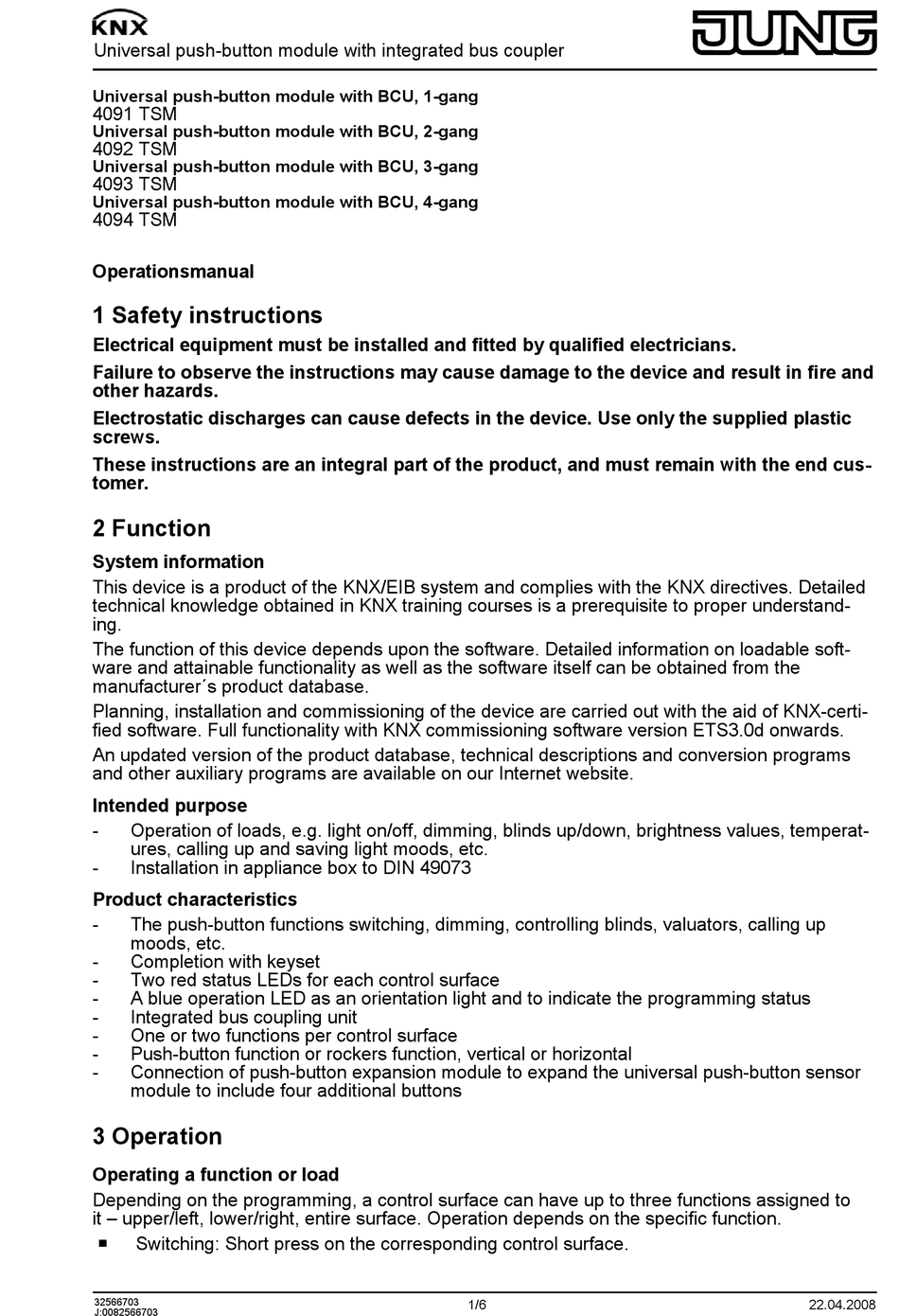

- Page 1 Universal push-button module with integrated bus coupler Universal push-button module with BCU, 1-gang 4091 TSM Universal push-button module with BCU, 2-gang 4092 TSM Universal push-button module with BCU, 3-gang 4093 TSM Universal push-button module with BCU, 4-gang 4094 TSM Operationsmanual 1 Safety instructions Electrical equipment must be installed and fitted by qualified electricians.
