Jung KNX 2193 REG Operation Manual

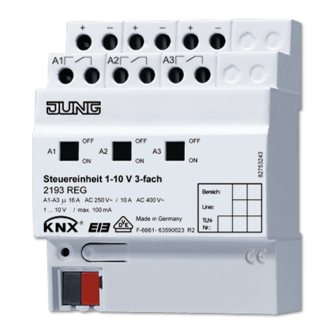

Control unit 1-10 V, 3-gang
Control unit 1-10 V, 3-gang
Art.-No.: 2193 REG
Operationsmanual

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. The 1...10 V control voltage is a functional extra-low voltage
(FELV), and can be connected to mains potential. On installing, ensure safe separation to
SELV/PELV systems. In order to disconnect the connected luminaires, disconnect both
the mains voltage and control voltage circuits.
These instructions are an integral part of the product, and must remain with the end
customer.

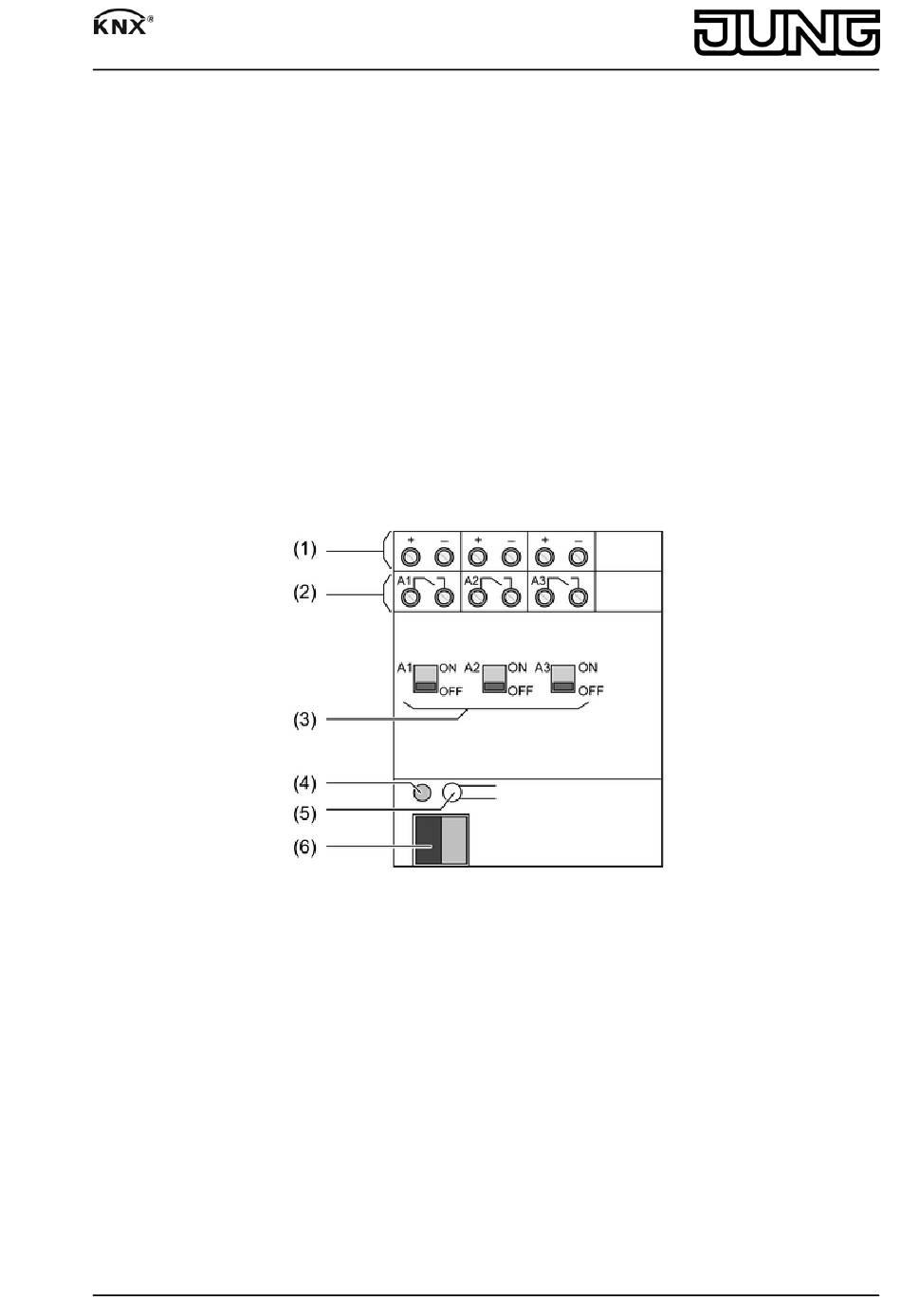

2 Device components

(1) Connection for control outputs
(2) Connection for switching outputs
(3) Slide switch/Status indication
(4) Programming LED
(5) Programming button
(6) KNX connection

3 Function

System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
82506533
J:0082506533
picture 1
1/6 13.08.2010
