Push-button sensor module
Ref.-no.: 4008 TSM

Safety instructions

Caution! Electrical devices may only be installed and fitted by electrically skilled persons.
Non-compliance with the installation information could cause damage to the device, fire or other hazards.
Connect the push-button sensor module exclusively to the universal relay or dimming station (no mains potential!).
To fasten radio to the supporting ring, only use the enclosed plastic screws.
These instructions are a component part of the product and must remain with the end customer.
Correct use
Operation of consumers, e.g. light on/off, dimming, blinds/shutters up/down, calling up and saving light scenes etc.
Connection to relay station or dimming station
Installation in appliance box according to DIN 49073
Product characteristics
8 channels of the relay and dimming station can be controlled: switching, contact, dimming, blind/shutter.
16 channels for stations connected in parallel in conjunction with the push-button sensor expansion module.
All channels of the stations can be connected in the state as delivered.
Central function: all selected channels of the stations are controlled centrally
Light scenes: up to 4 light scenes can be freely configured.
Buttons can be configured corresponding to the cover kit.
Programming without additional aids
Free assignment of the buttons to the channels
Red LED as status indicator (can be switched off)
Blue orientation light (can be switched off)
Feedback of switching states on all connected push-button sensor modules and sensor modules
Up to 4 push-button sensor modules with up to 4 push-button sensor expansion modules can be connected to a single relay station (appli-
cation e.g. in two-way circuits or cross connections)
Cloning of push-button sensor modules: transmitting the button assignment of a push-button sensor module to other push-button sensor
modules (application e.g. in changeover or cross connections)
Push-button sensor modules and push-button sensor modules with expansion module can be cloned
Easy installation using 2-wire cable
Covers can be labelled using the laser labelling tool on the Internet under www.jung-lasern.de
Operation
Each button can be operated over its entire surface or top/bottom, depending on the programming. The function depends on the setting of
the station.
Switching / momentary contact: press button briefly.
Move blind/shutter: press and hold button.
Stop or adjust blind/shutter: press button briefly
Dimming: press and hold button

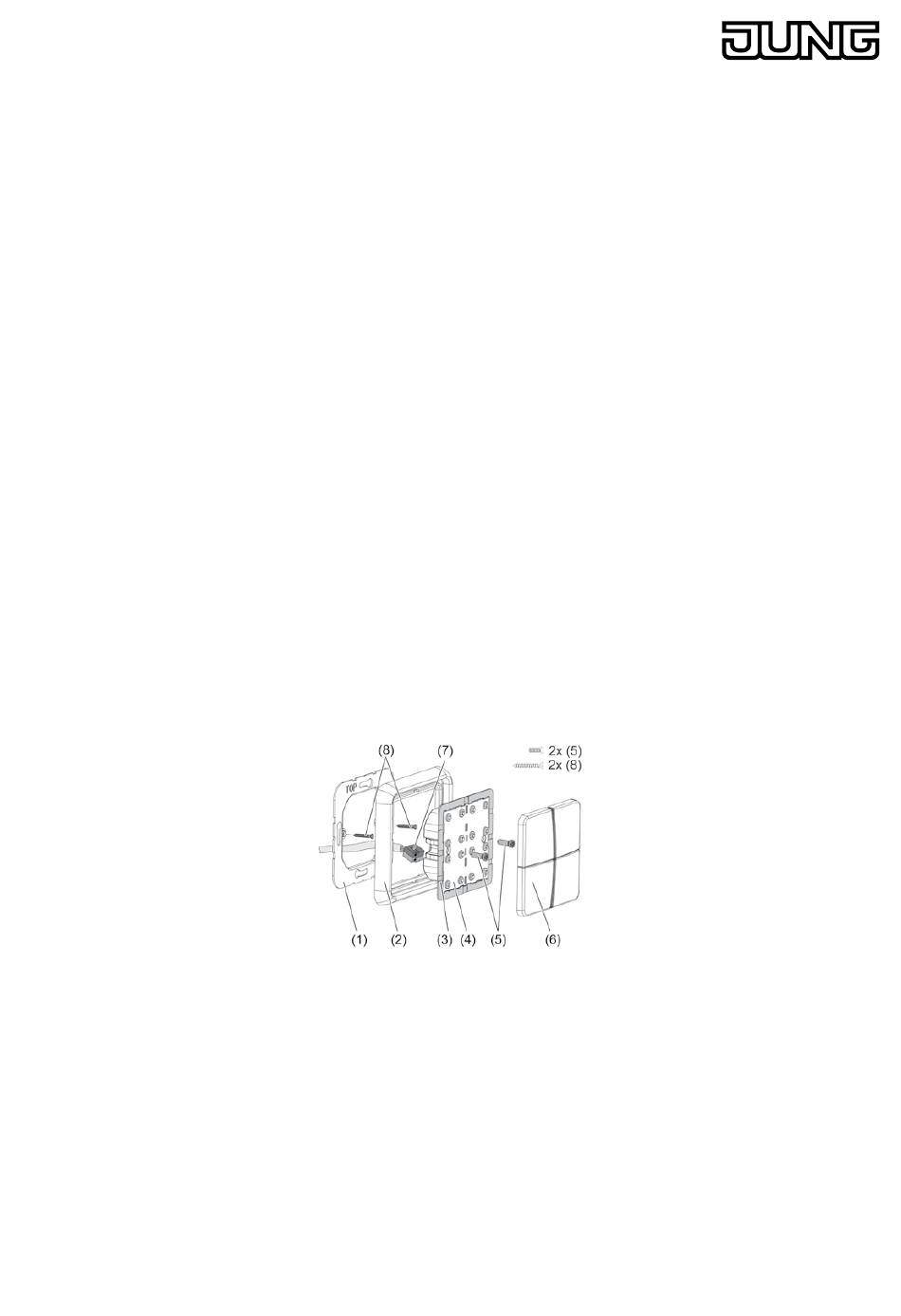

Structure of the device
(1) Supporting ring
(2) Frame
(3) Adapter frame
(4) Push-button sensor module
(5) Locking screw
(6) Button set
(7) Connecting terminal
(8) Box screws
Bild 1: Installation
Page 1
0024015020 12.10.2012
