Light Management
825 587 03
Stand: Jan-09

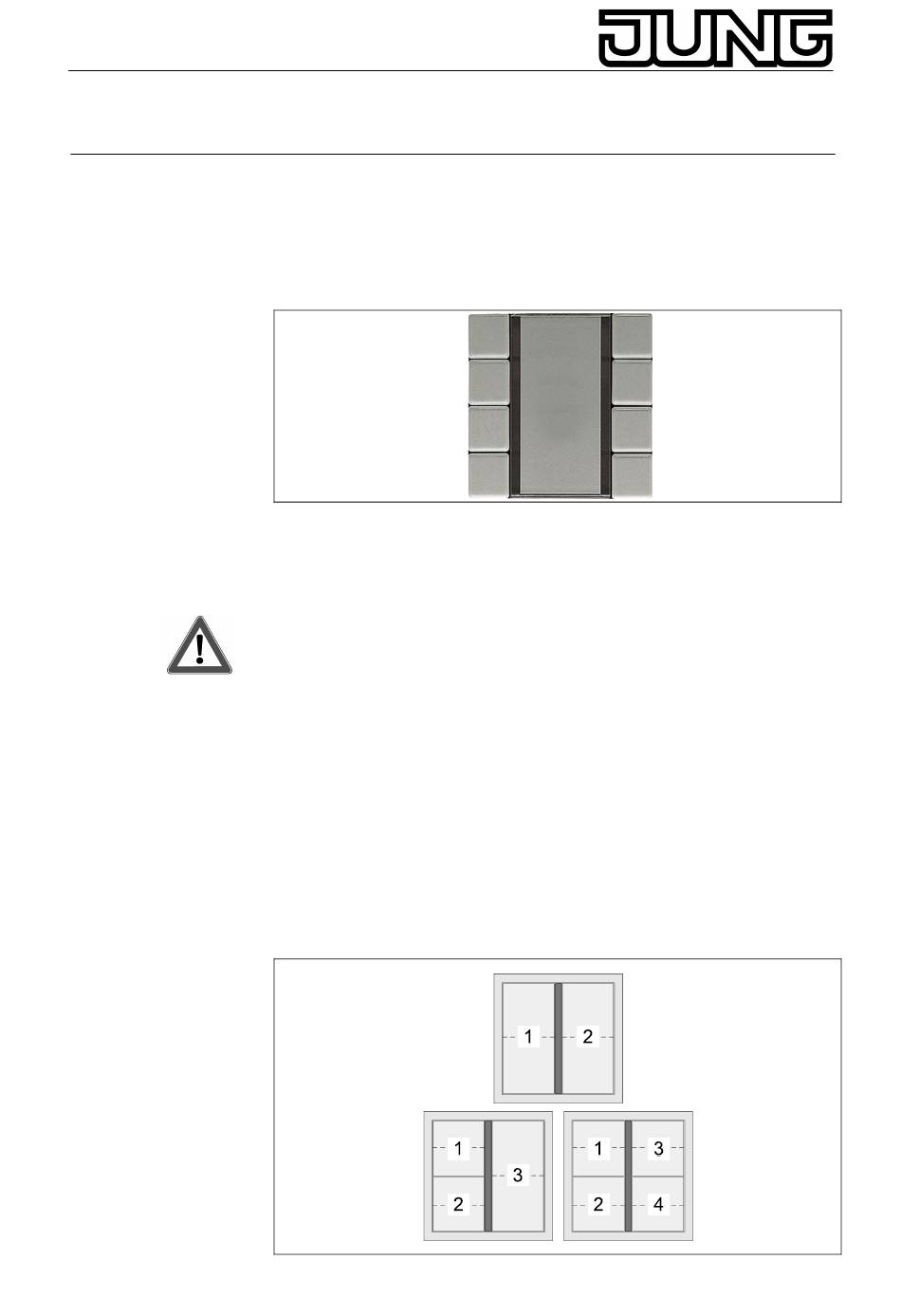

Operating Instructions
Touch sensor module AC/DC 24 V
2-channel, 3-channel, 4-channel
1. Safety warnings
Attention: Electrical equipment must be installed and fitted by
qualified electricians only.
Failure to observe any of the installation instructions may cause
damage to the device and result in fire or other hazards.
The sensor is a safety class III device. Connect only SELV circuits of
24 V to the device (no mains potential!).
2. Function
Touch sensors intended for connection to the 8- channel relay station,
Art. no. RS8 REG HE or other control systems. Each sensor is equipped
with two red LEDs for status indication purposes. Connection to the
device is made at the back by means of a terminal block. The touch
sensor rockers are "divided" into an upper and a lower half and generally
control two consumers (or other functions). To actuate the rockers, the
device must be equipped with the corresponding touch sensor module
covers (must be ordered separately):

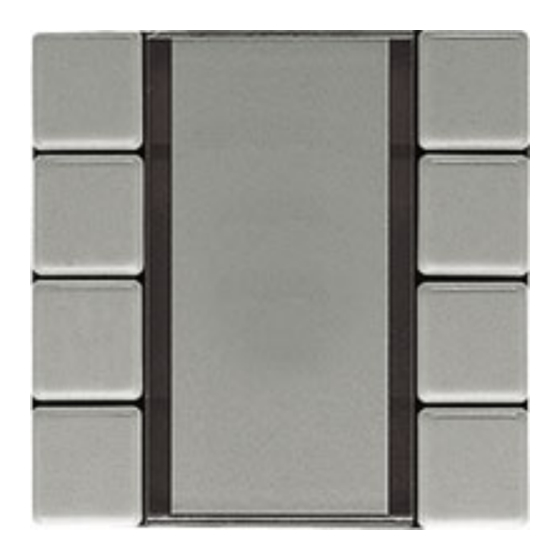

Touch sensor module AC/DC 24 V
Ref.-no.: 2224 TSM,
2236 TSM, 2248 TSM
Advertisement
Table of Contents
Related Manuals for Jung 2224 TSM
Summary of Contents for Jung 2224 TSM
- Page 1 Light Management Touch sensor module AC/DC 24 V Ref.-no.: 2224 TSM, 2236 TSM, 2248 TSM Operating Instructions Touch sensor module AC/DC 24 V 2-channel, 3-channel, 4-channel 1. Safety warnings Attention: Electrical equipment must be installed and fitted by qualified electricians only.
- Page 2 Light Management Touch sensor module AC/DC 24 V Ref.-no.: 2224 TSM, 2236 TSM, 2248 TSM 2-channel 2224 TSM 2 x FD..902 TSA.. 3-channel 2236 TSM 1 x FD..902 TSA.. and 2 x FD..904 TSA.. 4-channel 2248 TSM 4 x FD..904 TSA..
- Page 3 Light Management Touch sensor module AC/DC 24 V Ref.-no.: 2224 TSM, 2236 TSM, 2248 TSM 4. Installation • Fit the supporting ring (1) in the correct position on a flush-mounting box (observe the TOP marking). • Place the decorative frame (2) on the supporting ring.
-
Page 4: Technical Data
The covers with Art. no. FD..90x TSA NA.. can be equipped with labels. Commercial-grade transparencies can be inscribed with the help of the JUNG labelling software and inserted as labels into the covers. The JUNG labelling software is available in the Internet under the following address: www.jung-beschriftungsservice.de.
