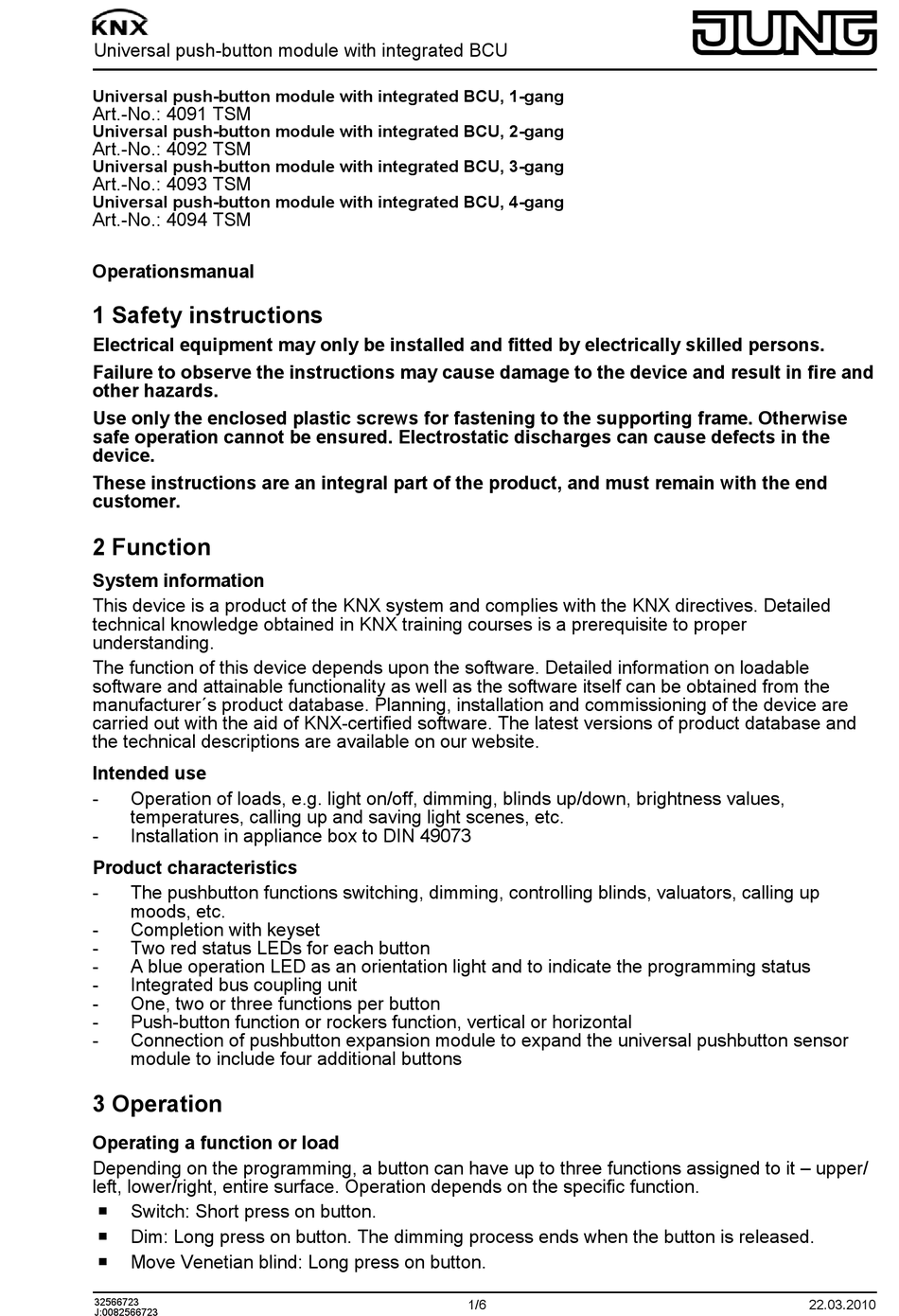

Jung 4092 TSM Operation Manual

Universal push-button module with integrated BCU

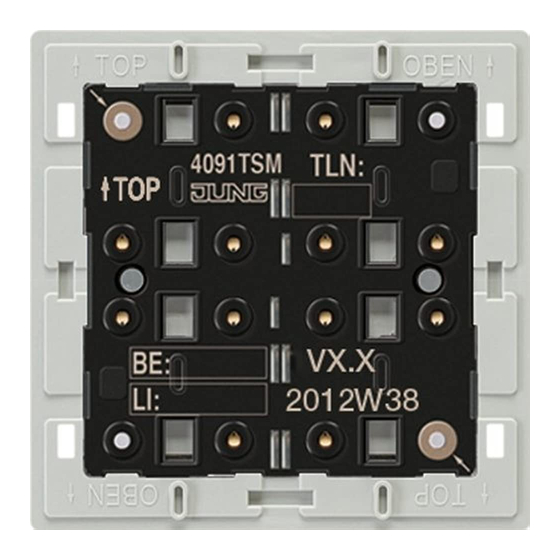

Universal push-button module with integrated BCU, 1-gang
Art.-No.: 4091 TSM
Universal push-button module with integrated BCU, 2-gang
Art.-No.: 4092 TSM
Universal push-button module with integrated BCU, 3-gang
Art.-No.: 4093 TSM
Universal push-button module with integrated BCU, 4-gang
Art.-No.: 4094 TSM
Operationsmanual

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Use only the enclosed plastic screws for fastening to the supporting frame. Otherwise
safe operation cannot be ensured. Electrostatic discharges can cause defects in the
device.
These instructions are an integral part of the product, and must remain with the end
customer.

2 Function

System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest versions of product database and
the technical descriptions are available on our website.
Intended use
- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values,
temperatures, calling up and saving light scenes, etc.
- Installation in appliance box to DIN 49073
Product characteristics
- The pushbutton functions switching, dimming, controlling blinds, valuators, calling up
moods, etc.
- Completion with keyset
- Two red status LEDs for each button
- A blue operation LED as an orientation light and to indicate the programming status
- Integrated bus coupling unit
- One, two or three functions per button
- Push-button function or rockers function, vertical or horizontal
- Connection of pushbutton expansion module to expand the universal pushbutton sensor
module to include four additional buttons

3 Operation

Operating a function or load
Depending on the programming, a button can have up to three functions assigned to it – upper/
left, lower/right, entire surface. Operation depends on the specific function.
o Switch: Short press on button.
o Dim: Long press on button. The dimming process ends when the button is released.
o Move Venetian blind: Long press on button.
32566723
J:0082566723
1/6 22.03.2010
