Product Information

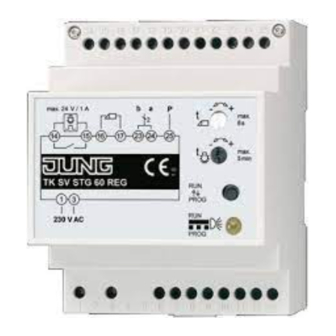

DCM Power supply and control unit 60 mA
TK SV STG 60 REG
Assembly, installation, and commissioning must only be carried out by a qualified
!
electrician!
For work on systems with 230 V AC mains current the safety requirements of DIN VDE
0100 must be observed.
When installing DCM BUS systems the general safety rules for telecommunication sys-
tems in accordance with VDE 0800 must be observed:
• separate cabling for high and low voltage lines
• minimum distance of 10 cm for joint cabling arrangements,
• use of separators between high and low voltage lines in joint cable ducts,
• use of standard telecommunication cables, e. g. J-Y (St) Y with 0.8 mm² cross section
Suitable lightning prediction must ensure that a voltage of 32 V DC will not be
!
exceeded at the DCM BUS wires a and b.
DCM = Door Communication Management
Safety instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TK SV STG 60 REG and is the answer not in the manual?

Questions and answers

Related Manuals for Jung TK SV STG 60 REG

Summary of Contents for Jung TK SV STG 60 REG

  • Page 1 Product Information DCM Power supply and control unit 60 mA TK SV STG 60 REG Safety instructions Assembly, installation, and commissioning must only be carried out by a qualified electrician! For work on systems with 230 V AC mains current the safety requirements of DIN VDE 0100 must be observed.

  • Page 2: Device Overview

    Application / Brief description Application • power supply and control unit for door communication systems • light switching with floating relay contact • power supply for door release Brief description • power supply for DCM BUS, short circuit protected • switching between operation and programming mode •...

  • Page 3: Wiring And Installation

    Wiring and installation Wiring example (with TK SV 2500 REG) 3-wire technique Please observe cable length and loop resistance. Attention! Do NOT connect terminal 29 (+) of TK SV 2500 REG with terminal 25 (P) of power supply & control unit. Indoor station Floor bell button Indoor station...
  • Page 4 6-wire technique, Video Please observe cable length and loop resistance. Attention! Do NOT connect terminal 29 (+) of TK SV 2500 REG with terminal 25 (P) of power supply & control unit. Video indoor station Floor bell button Video indoor station Floor bell button...
  • Page 5 Wiring example for door release Direct connected door release AC 12 V~. Door release time from 0.8 s up to 8 s manually adjustable. Wiring example with door release for postman key switch The door release can be activated with an additional key switch. The door release remains activated as long as the switch contact is closed.
  • Page 6 Wiring example for light switching The following various light functions trigger or retrigger the internal floating switch contact (max. 24 V, DC 1 A). Automatic light The light will be switched depending on the ambient brightness switching when you push the bell button of the outdoor station. The limited brightness value is adjustable.
  • Page 7 Wiring example for an external relay to the internal power supply The power supply of an external staircase timer switch or control relay with an universal voltage input is possible (AC 12 V, power supply for door release). Exclusively install relays with an universal voltage input and a max. control capacity of 250 mW.

  • Page 8: Operation

    Commissioning The total current of the indoor stations, outdoor stations and other devices may not ex- ceed the output current I(P) of the des TK SV STG 60 REG. • Install all devices of the DCM system • Short-circuit test for a-, b- and P-wires •...
  • Page 9 Settings To protect the system against manipulation, new programming of switching times will be saved only by means of switching the programming mode on and off. Door release time The system is active, LED is illuminated Set the time then switch the programming mode on and off –: min.

  • Page 10: Technical Data

    Light switch function If the communication between indoor and outdoor station is NOT activated, you can switch the light with the door release button. Factory settings: Function is deactivated Activate the light switch function The system is active, LED is illuminated Push RUN/PROG the LED flashes, Push RUN/PROG...

  • Page 11: Acceptance Of Guarantee

    We accept the guarantee in accordance with the corresponding legal provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Technique (DCM) Service-Centre Kupferstr. 17-19 Service-Line: 0 23 55 .
