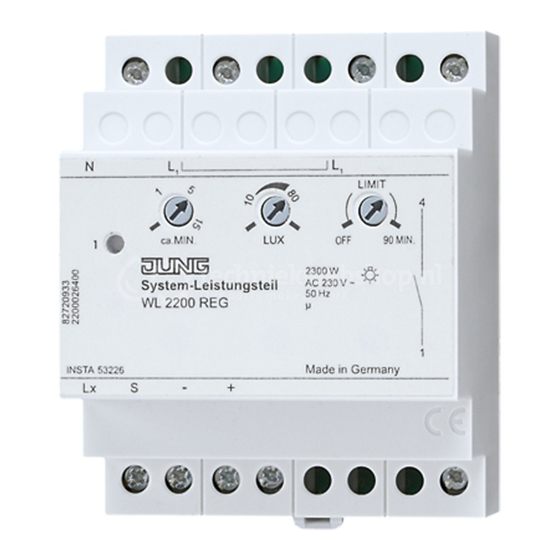

System control unit
System control unit 1-channel
Art.-No.: WL 2200 REG
System control unit 2-channel
Art.-No.: WL 2200-2 REG
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
These instructions are an integral part of the product, and must remain with the end
customer.

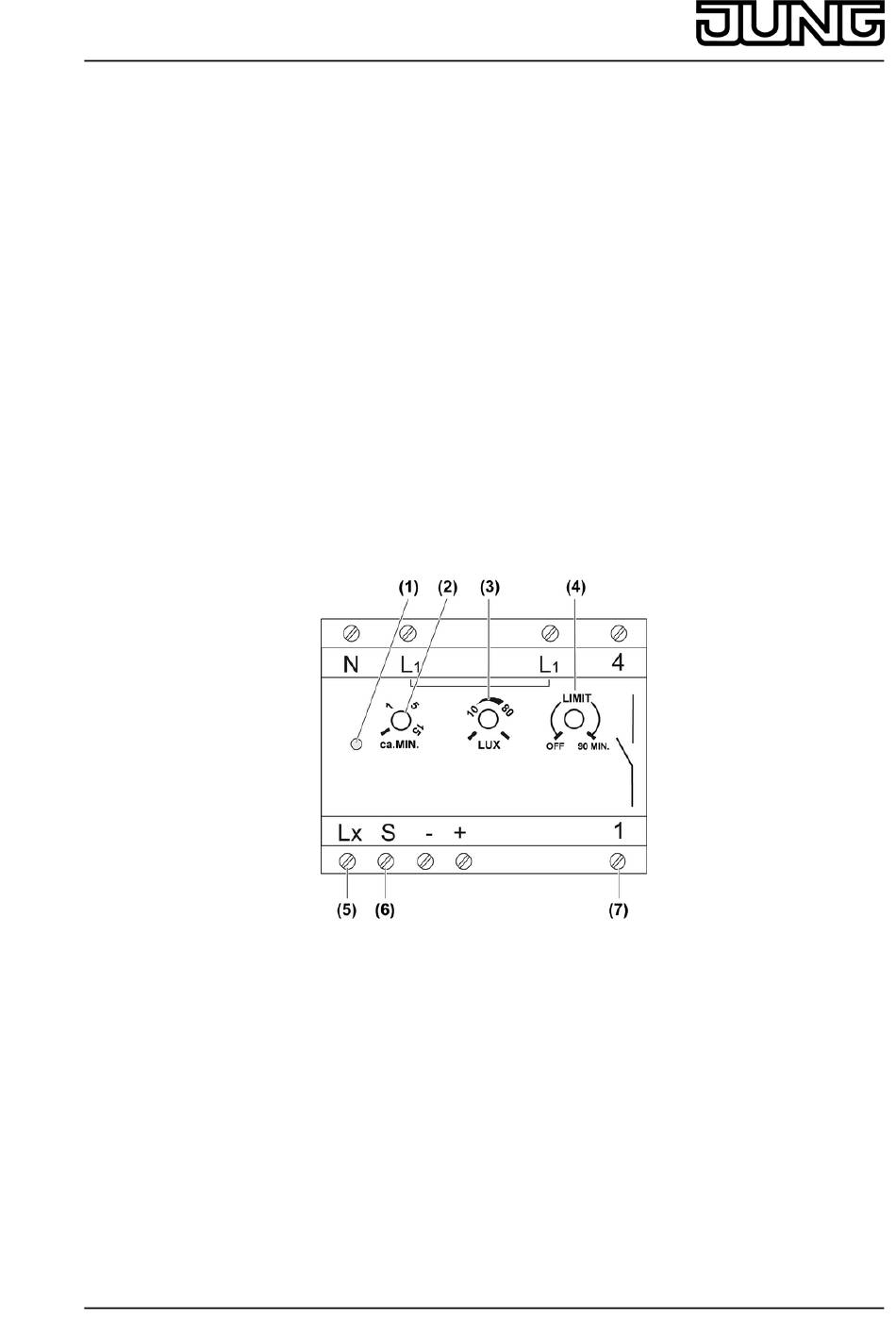

2 Device components
System power pack, 1-channel RMD
(1) Status LED
(2) Adjuster, run-on time, MIN
(3) Adjuster, brightness threshold, LUX
(4) Forced switch-off adjuster, LIMIT
(5) Terminal Lx Brightness evaluation of the system sensor
(6) Terminal S Signal evaluation of the system sensor
(7) Terminals 1 and 4 Potential-free switching contact
32508313
J:0082508313
picture 1: Power pack, 1-channel
1/7
09.08.2010
Advertisement
Table of Contents
Related Manuals for Jung WL 2200 REG
Summary of Contents for Jung WL 2200 REG
-
Page 1: Safety Instructions
System control unit System control unit 1-channel Art.-No.: WL 2200 REG System control unit 2-channel Art.-No.: WL 2200-2 REG Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards. - Page 2 System control unit System power pack, 2-channel RMD picture 2: Power pack, 2-channel (8) Switching contact, channel 1 (9) Switching contact, channel 2 (10) Channel 1: Status LED and adjuster for MIN, LUX and LIMIT (11) Channel 2: Status LED and adjuster for MIN, LUX and LIMIT (12) Connection of system sensors for Channel 1 (13) Connection of system sensors for Channel 2 3 Function...
-
Page 3: Operation
System control unit Automatic operation System sensors (accessories) detect heat movements or people, animals or objects and forward movement signals and the current brightness value to the power pack. The light is switched on if a person enters the monitored detection area and the brightness is below the set threshold. - Page 4 System control unit Switching on the forced switched-off The LIMIT adjuster (4) can be used to switch a forced switch-off on 90 MIN or off OFF. With forced switch-off, the power pack switches off after 90 minutes at the latest. Switch-on only takes place again if the brightness is below the set threshold and there movement is again detected in the detection area.
- Page 5 System control unit Using the 1-channel power pack, switch a small voltage. picture 5: Connection diagram for switching contact to small voltage Connect the power pack according to connection diagram (picture 5). Connecting and installing the 2-channel power pack picture 6: Connection diagram, 2-channel power pack Install the power pack on the DIN rail.
-
Page 6: Technical Data
6 Appendix 6.1 Technical data Rated voltage AC 230 V ~ Mains frequency 50 Hz Power consumption Art.-No.: WL 2200 REG approx. 1.1 W Art.-No.: WL 2200-2 REG approx. 1.8 W Ambient temperature -25 ... +55 °C Follow-up time approx. 4 s ... 15 min Brightness setting approx. -
Page 7: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
