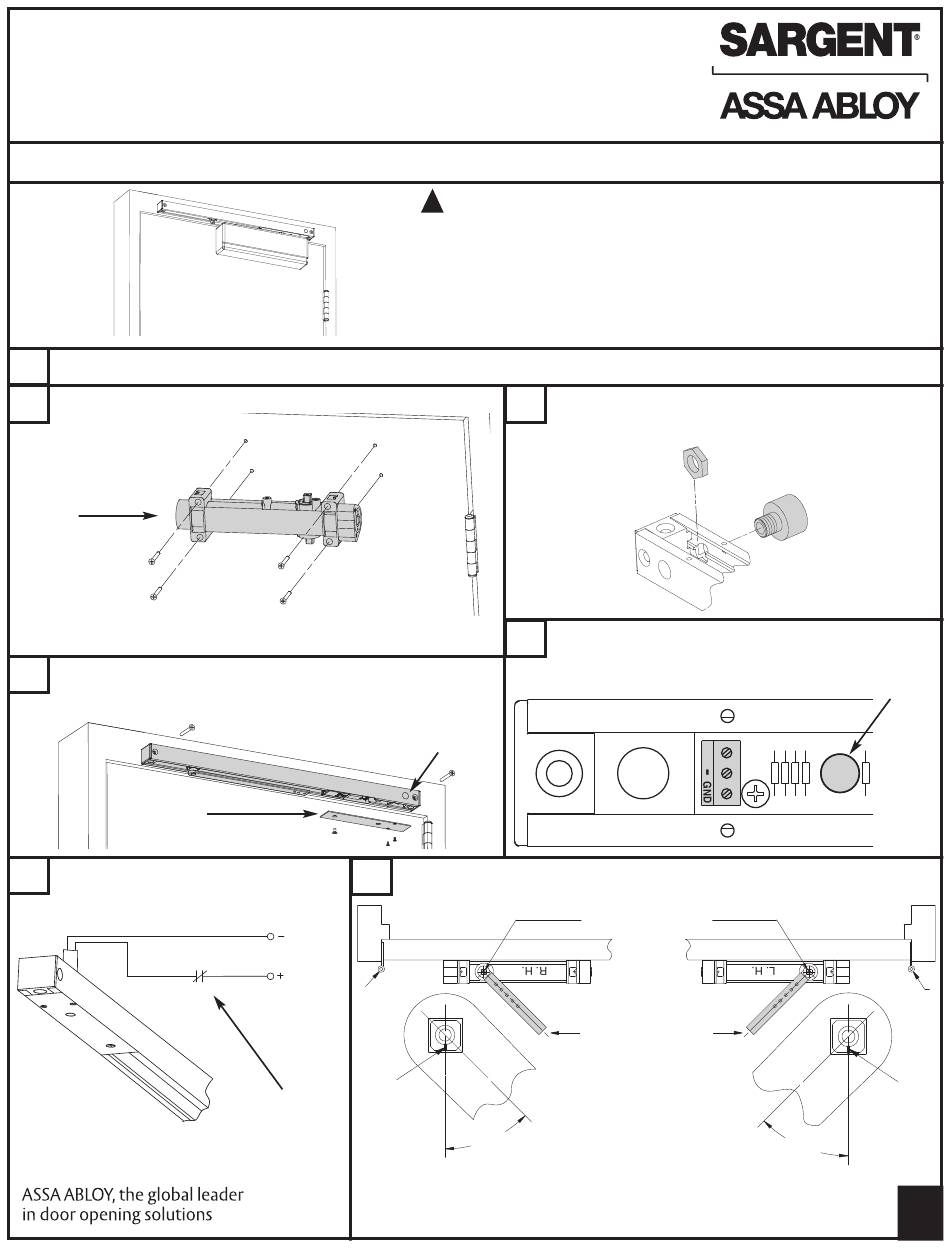

INSTALLATION INSTRUCTIONS
351 EHT Electromechanical Closer-Holder Device –
Pull Side
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE.
FOR ASSISTANCE CONTACT SARGENT AT 800-810-WIRE (9473) or www.sargentlock.com
NOTE: AN AUXILIARY DOOR STOP IS REQUIRED AT HOLD OPEN
Left Hand
Shown
Use template from page 3; drill and tap door and frame for 12-24 machine screws, and prepare hole for conduit.
1
Do not drill through channel, as damage will occur voiding warranty.
2
Install closer body to door with spring power nut away
from hinge.
Spring
Power
Nut
351 closers are non-handed, RH must be on top for right hand
doors and LH must be on top for left hand doors.
4
Secure track to frame with electronics toward hinge with screws
provided. Install hole plugs into exposed holes in track.
COVER PLATE
INSTALLED
AFTER WIRING
6
Wire through fire alarm contact OR
Optional "Remote Release" switch is used.
1. DISCONNECT ALL POWER BEFORE INSTALLATION
2. ALL WIRING TO BE PERFORMED BY QUALIFIED PERSONNEL TO
3. MAXIMUM WIRE SIZE IS 18 AWG.
7
Use screw and washer to secure main arm to spindle with index
mark as shown.
R. H. Door
Hinge
Index
mark on
Fire alarm contact
spindle
by others or
optional remote
release switch
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company
is prohibited.
!
CAUTION:
COMPLY WITH ALL APPLICABLE LOCAL CODES.
3
Attach conduit adapter to track with nut provided.
Secure cable or conduit (by others) per local codes.
5 Connect 24VDC/VAC to terminal block marked "+", "-"
and "GND" (if applicable). (NOTE: GND used if AC is
used).
Hole Plug
Closer Spindle, Washer
Positioning of arm when
assembling to spindle
IF NOT PROPERLY INDEXED,
DOOR CLOSER WILL NOT
45°
FUNCTION PROPERLY.
+
and Screw
WARNING:
On/Off
Switch
L. H. Door
Hinge
Index mark
on spindle
45°
1
A7655A
