351 DOOR CLOSER WITH P10/PH10 HOLDER ARM
INSTALLATION INSTRUCTIONS
351 SERIES ADJUSTABLE FROM SIZE 1 THRU 6
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE.
FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477.
1

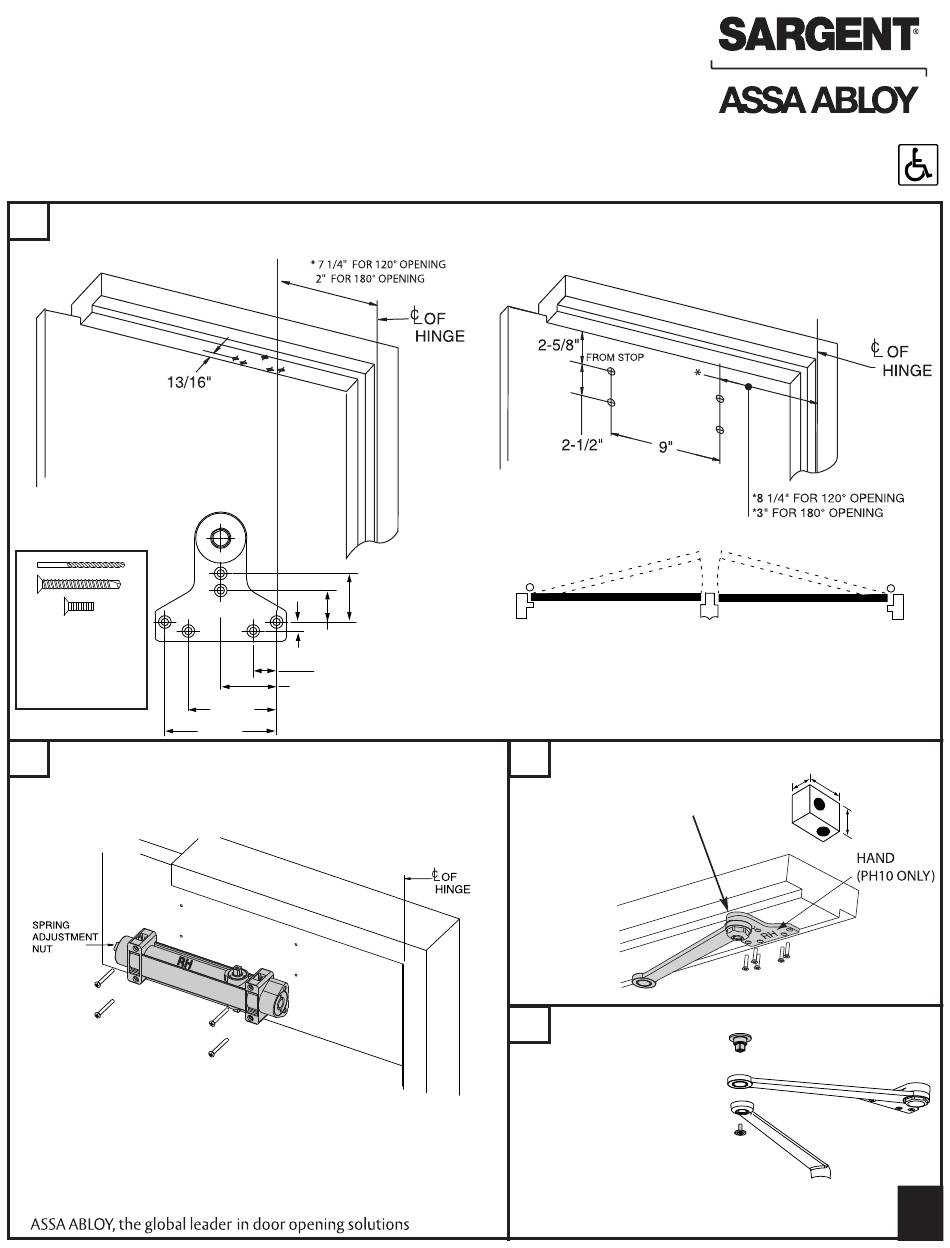

LOCATE AND MARK HOLES USING FULL SIZE TEMPLATE OR MEASURE AS SHOWN BELOW.
RIGHT HAND SHOWN, LEFT HAND OPPOSITE.
DOOR
+
or
IMPORTANT NOTICE
PRE-DRILL 3/32"
HOLES FOR SELF-
TAPPING SCREWS
OR TAP #12-24 FOR
MACHINE SCREWS
2
INSTALL DOOR CLOSER TO DOOR WITH SPRING
ADJUSTMENT NUT AWAY FROM HINGE.
NOTE:
351 CLOSER BODIES ARE
NON-HANDED. IT IS IMPORTANT THAT
THE CLOSER BODY IS INSTALLED
WITH "RH" SYMBOL AT TOP FOR
RIGHT HAND DOORS, "LH" SYMBOL
AT TOP FOR LEFT HAND DOORS.
1-11/16"
1-1/8"
5/16"
13/16"
1-15/16"
3-1/16"
3-7/8"
RIGHT HAND
DOOR SHOWN
PULL SIDE
PUSH SIDE
LEFT HAND DOOR
351 CLOSERS AND P10 ARM ARE NON HANDED,
ONLY THE PH10 ARM IS HANDED
* NOTE: FOR MAXIMUM POWER, INSTALL FOR 120° OPENING.
FOR 180° OPENING, SEE TEMPLATE ON PAGE 4.
3
ATTACH FOOT BRACKET TO DOOR STOP.
ALTERNATE: PREASSEMBLE ARM PRIOR TO
3A
ATTACHING TO STOP
Copyright © 1993, 1995, 2001, 2006, 2008 Sargent Manufacturing
Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written
permission of Sargent Manufacturing Company is prohibited.
PULL SIDE
PUSH SIDE
RIGHT HAND DOOR
1/2"
USE FIFTH HOLE SPACER
WHEN REQUIRED
7/8"
5/8"
IMPORTANT: USE A
MINIMUM OF 5 SCREWS
TO SECURE FOOT
BRACKET TO FRAME
1
A7386E
