Assa Abloy SARGENT 351 EHTD Installation Instructions

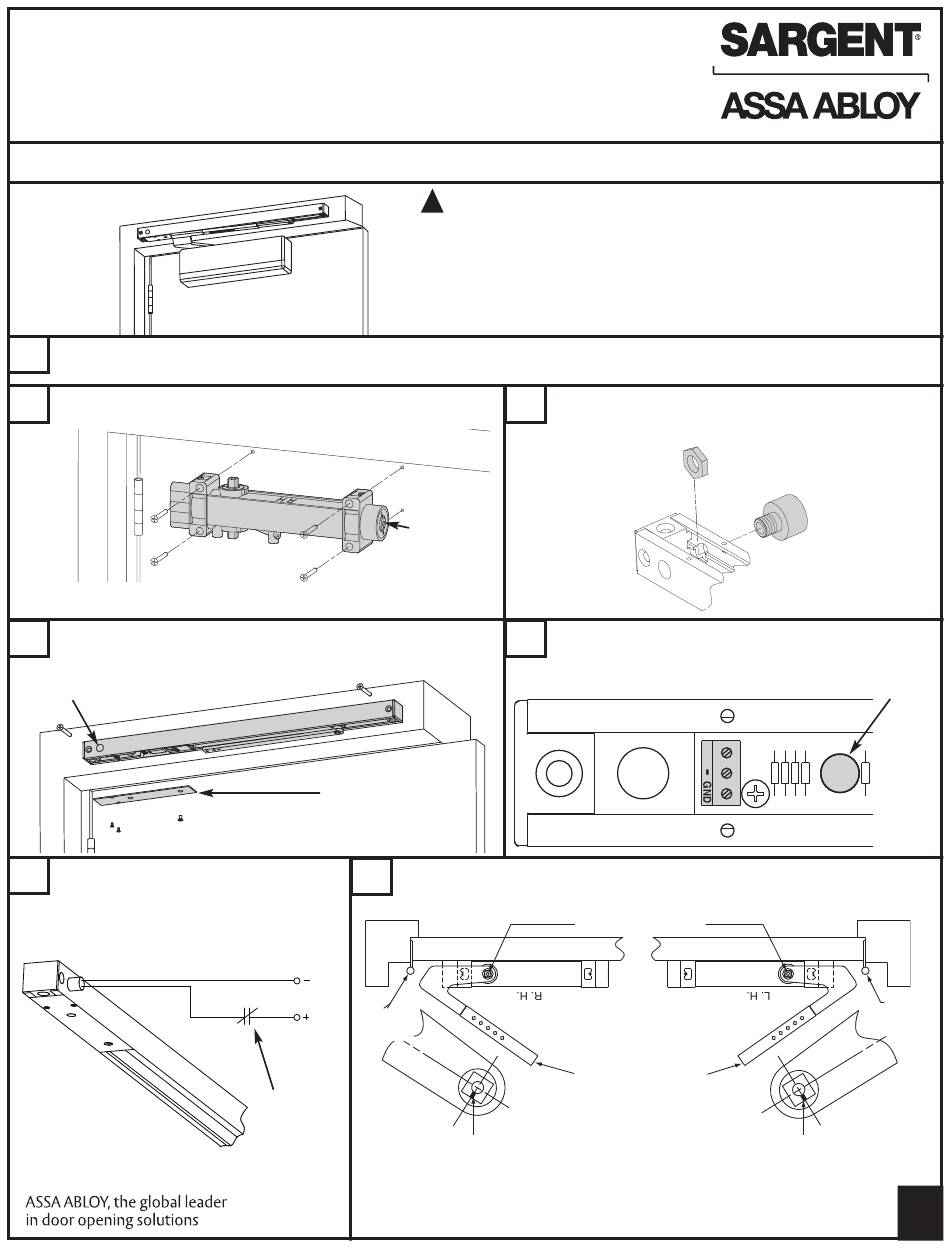

INSTALLATION INSTRUCTIONS
351 EHTD Electromechanical Closer-Holder Device –
DOUBLE EGRESS
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE.
For assistance contact SARGENT at 800-810-WIRE (9473) or www.sargentlock.com
NOTE: AN AUXILIARY DOOR STOP IS REQUIRED AT HOLD OPEN
Right Hand
Shown
1
Use template from page 3; drill and tap door and frame for 12-24 machine screws and prepare hole for conduit.
Do not drill through channel, as damage will occur voiding warranty.
2
Install closer body to door with spring power nut away
from hinge.
351 closers are non-handed, RH must be on top for right hand
doors and LH must be on top for left hand doors.
4 Secure track to frame with electronics toward hinge with screws
provided. Install hole plugs into exposed holes in track.
Hole Plug
6
Wire through fire alarm contact OR
optional "Remote Release" switch if used.
!
1. DISCONNECT ALL POWER BEFORE INSTALLATION
2. ALL WIRING TO BE PERFORMED BY QUALIFIED PERSONNEL TO
3. MAXIMUM WIRE SIZE IS 18 AWG.
Spring Power
Nut
Cover plate installed
after wiring
7
Use screw and washer to secure main arm to spindle with index
mark as shown.
R. H. Door
Hinge
Fire alarm
contact by
others or
optional remote
release switch
CAUTION:
COMPLY WITH ALL APPLICABLE LOCAL CODES.
3
Attach conduit adapter to track with nut provided.
Secure cable or conduit (by others) per local codes.
5 Connect 24VDC/VAC to terminal block marked "+",
"-" and "GND" (if applicable). (NOTE: GND used if AC
is used.)
Closer, Spindle, Washer
and Screw
Positioning of arm when
assembling to spindle
WARNING:
IF NOT PROPERLY INDEXED,
Index
DOOR CLOSER WILL NOT
mark on
FUNCTION PROPERLY.
spindle
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group
company. All rights reserved. Reproduction in whole or in part without the
express written permission of Sargent Manufacturing Company is prohibited.
On/Off
Switch
+
L. H. Door
Hinge
Index mark
on spindle
A7654A
