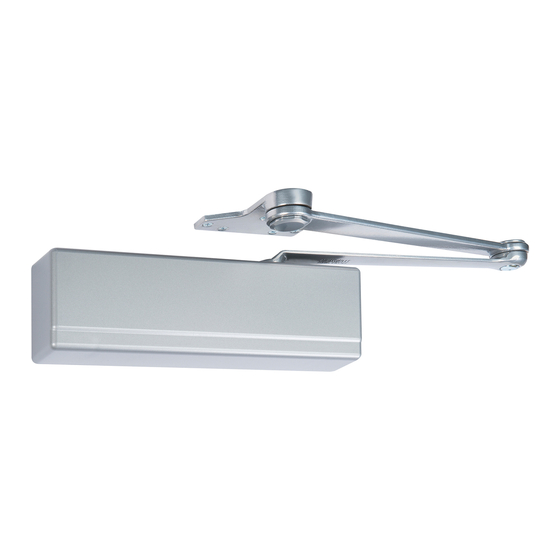

Assa Abloy SARGENT 351 Installation Instructions

With ot,otb,ht,htb arm and track

Table of Contents

Download this manual

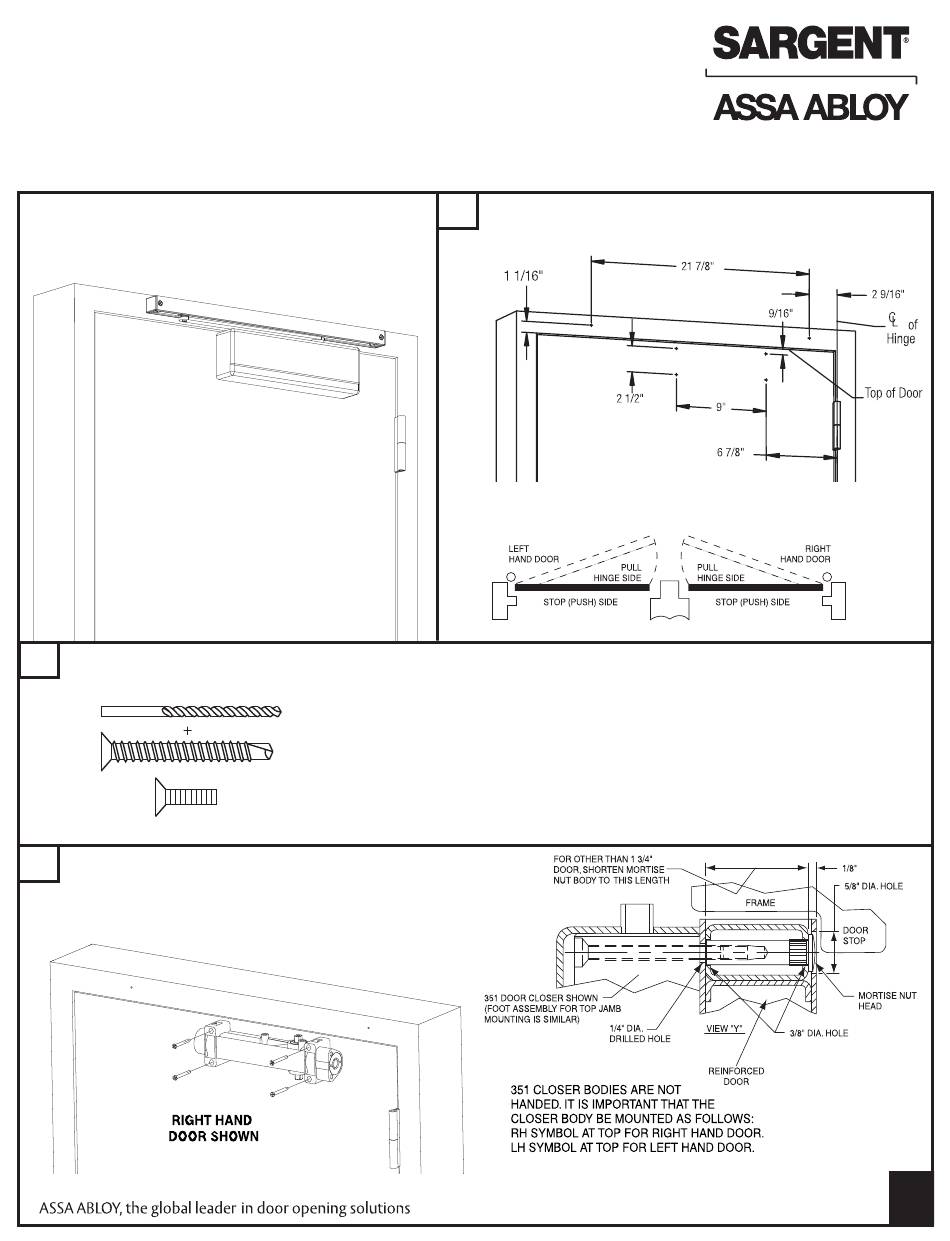

351 WITH OT,OTB,HT,HTB ARM AND TRACK

INSTALLATION INSTRUCTIONS (PULL SIDE)

CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

NOTE: AN AUXILIARY DOOR STOP IS REQUIRED

With provided fasteners, secure closer body to door

with power adjustment facing away from hinge

Pre-drill - 3/32" holes for self tapping screws

or #16 drill for #12-24 tap for machine screws

(Use 1/8" hole for fire rated wood doors)

Measure and mark holes, using dimensions shown below

Left hand shown; Right hand opposite

(See page 4 for additional details)

Reproduction in whole or in part without the express written

permission of SARGENT Manufacturing is prohibited.

A7347B

Table of Contents

Need help?

Do you have a question about the SARGENT 351 and is the answer not in the manual?

Page 1 351 WITH OT,OTB,HT,HTB ARM AND TRACK INSTALLATION INSTRUCTIONS (PULL SIDE) CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com NOTE: AN AUXILIARY DOOR STOP IS REQUIRED Measure and mark holes, using dimensions shown below Left hand shown;...
Page 2 Assemble arm to closer with index mark on end of spindle 45º from axis of arm as illustrated below. LEFT HAND DOOR Use washer and screw to retain arm (Right hand door shown). RIGHT HAND DOOR Slide track over roller and install end caps. Se- cure track to frame with screws provided.
Page 3 Adjusting Closing Speeds Adjust Door speed, and Latching speed valves to achieve the desired closing time. Recommend 6 seconds minimum from 90° to the closed position. If Backcheck is required, adjust valve to achieve a slight cushioning effect. Auxiliary stop required. If closer is equipped with Delayed Action, regulate valve to achieve the desired delay Use 1/8"...
