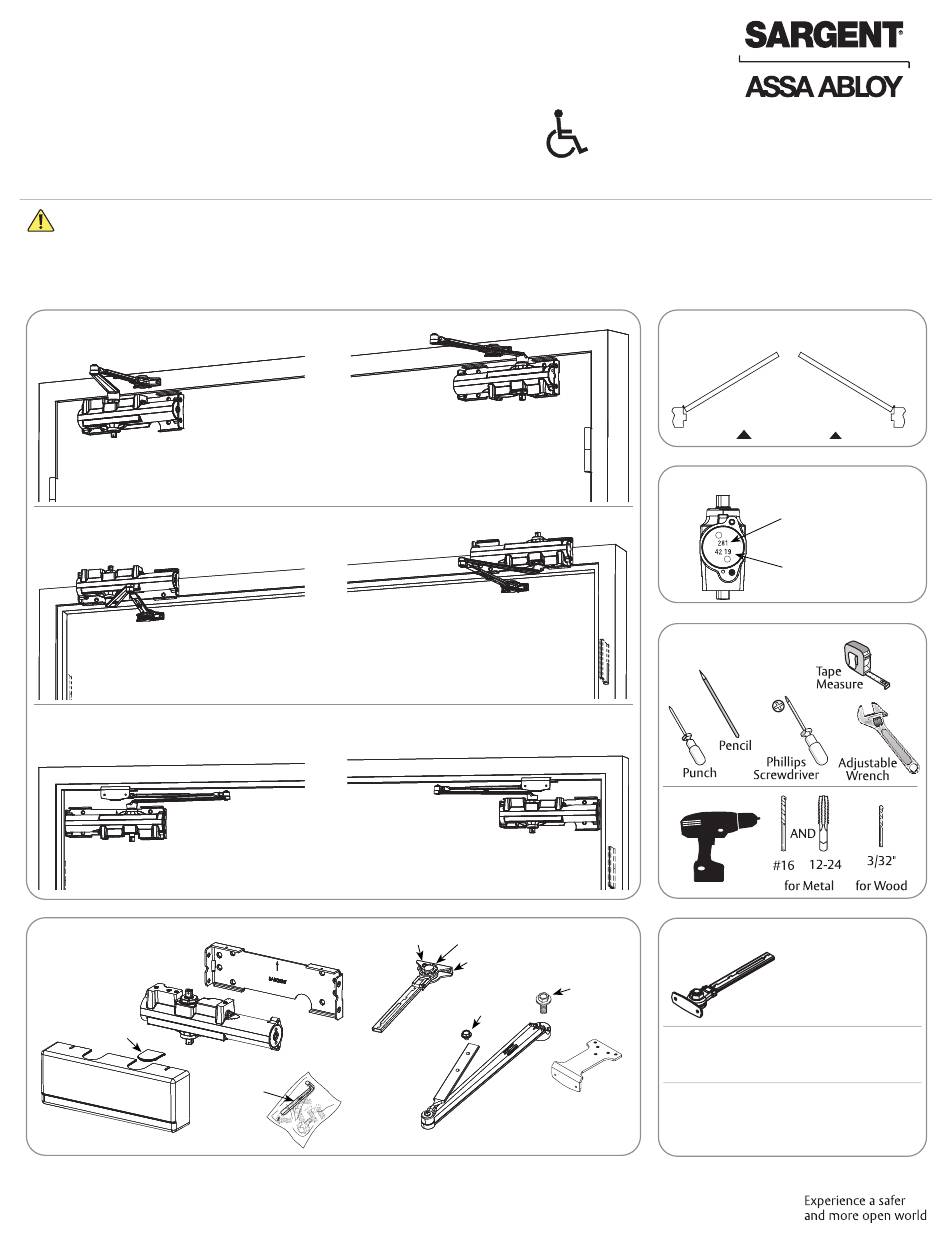

Assa Abloy SARGENT 281 Series Manual

281 Series
Non Handed Door Closer
Standard Mount
Top Jamb Mount
Parallel Arm Mount
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.
Standard Mount
Closer mounts on hinge side of door
Right Hand Door - RH
Top Jamb Mount
Closer mounts on frame of stop side of door
Left Hand Door - LH
Parallel Arm Mount
Closer mounts on stop side of door
Left Hand Door - LH
Included Components
(See page 2 for
mounting hardware)
Removable
Insert
281 Case
Plastic or
Metal Cover
1-800-438-1951 • www.sargentlock.com
Copyright © 2003, 2008, 2014, 2020, Sargent Manufacturing Company, an ASSA ABLOY
Group company. All rights reserved. Reproduction in whole or in part without the express
written permission of Sargent Manufacturing Company is prohibited.
Hold Open Arm Models
Dial Screw
Mounting
Bracket
Foot
Assembly
1/8" Hex
Wrench
Screw
Pack
Approved 2020-01-21
Adjustable (Sizes 1-6)
25-H
25-HZ
25-HZA
25-PH9
Ce produit peut vous exposer au plomb qui, dans l'état de la Californie,
est reconnu pour causer le cancer, des anomalies congénitales ou d'autres
problèmes de reproduction. Pour plus d'informations, visitez:
www.P65warnings.ca.gov.
Left Hand Door - LH
Right Hand Door - RH
Right Hand Door - RH
Dial
Foot
Arm
Mounting
Swivel Arm
Screw
Screw
Foot Bracket
Used with PH9
Main Arm &
Parallel Arm Only
Swivel Assembly
TO DETERMINE
HAND OF
YOUR DOOR:
To Determine Your Hand of Door:
Right Hand Left Hand
Reverse Reverse
RIGHT
LEFT
HAND
HAND
DOOR DOOR
To Identify Your Closer:
Model ID:
+ = optional DA
Manufacture Date:
Week / Year
Tools Needed
Legacy Friction Hold Open Arm
Note: Legacy FHO
arm has installation
orientation.
See 80-9300-0005-000,
available online.
H8 Mortise Friction Hold Open Arm
Note: H8 arm is handed same as door.
See template A7233, available online.
PH4 Friction Hold Open Arm
Note: PH4 parallel arm is used for
flush frame applications.
See template A7229, available online.
A7313D
