2.6

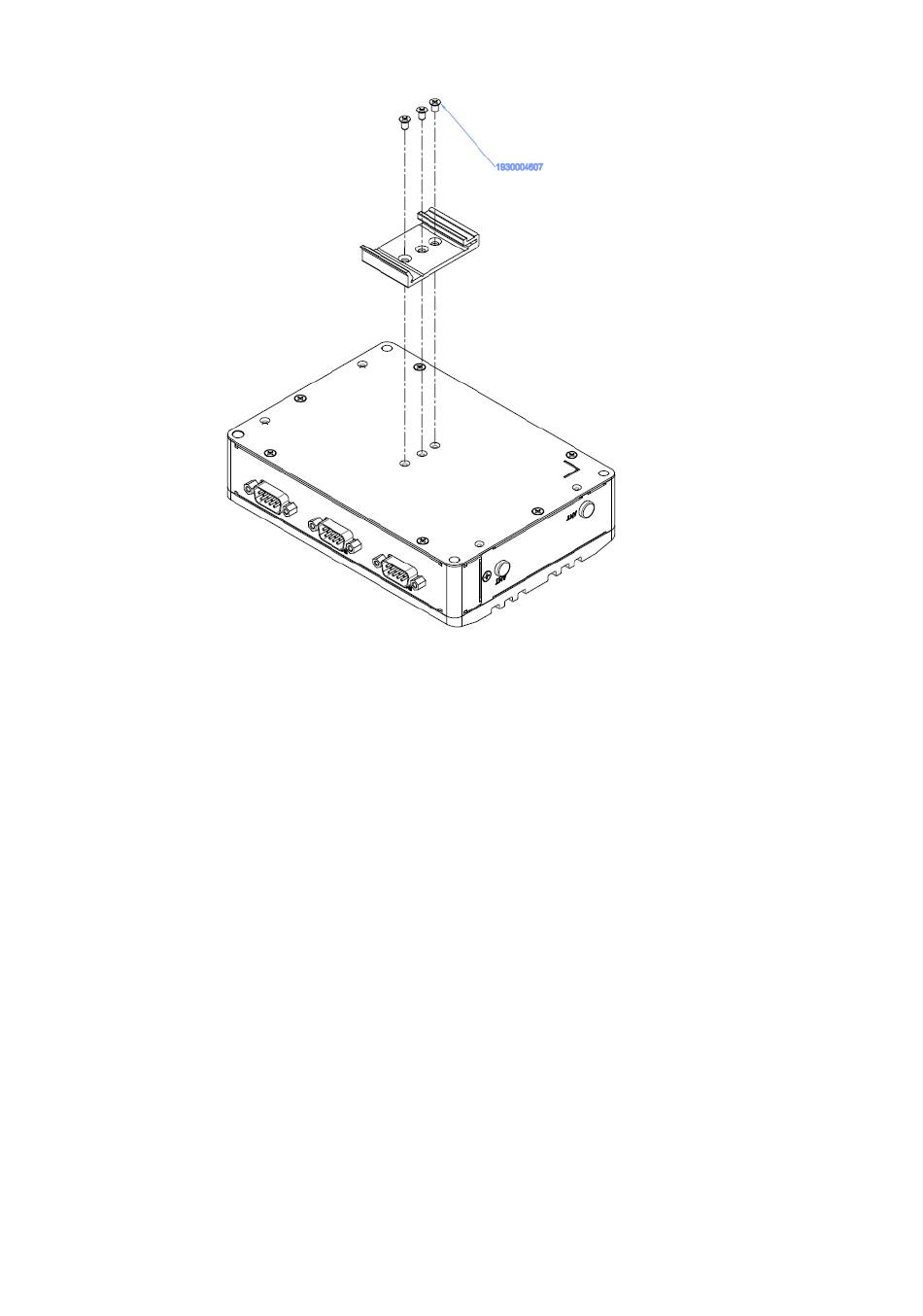

DIN Rail Bracket Installation
1. Screw the DIN Rail bracket to the bottom cover with 3pcs M3x4L screws.
Vissez le support du rail DIN au couvercle inférieur avec 3 vis M3x4L.
2. Affix EPC-R3720 to the rail.
Apposez l'EPC-R3720 sur le rail.
12
13
14
EPC-R3720 User Manual
