6.4. Soil tillage tines

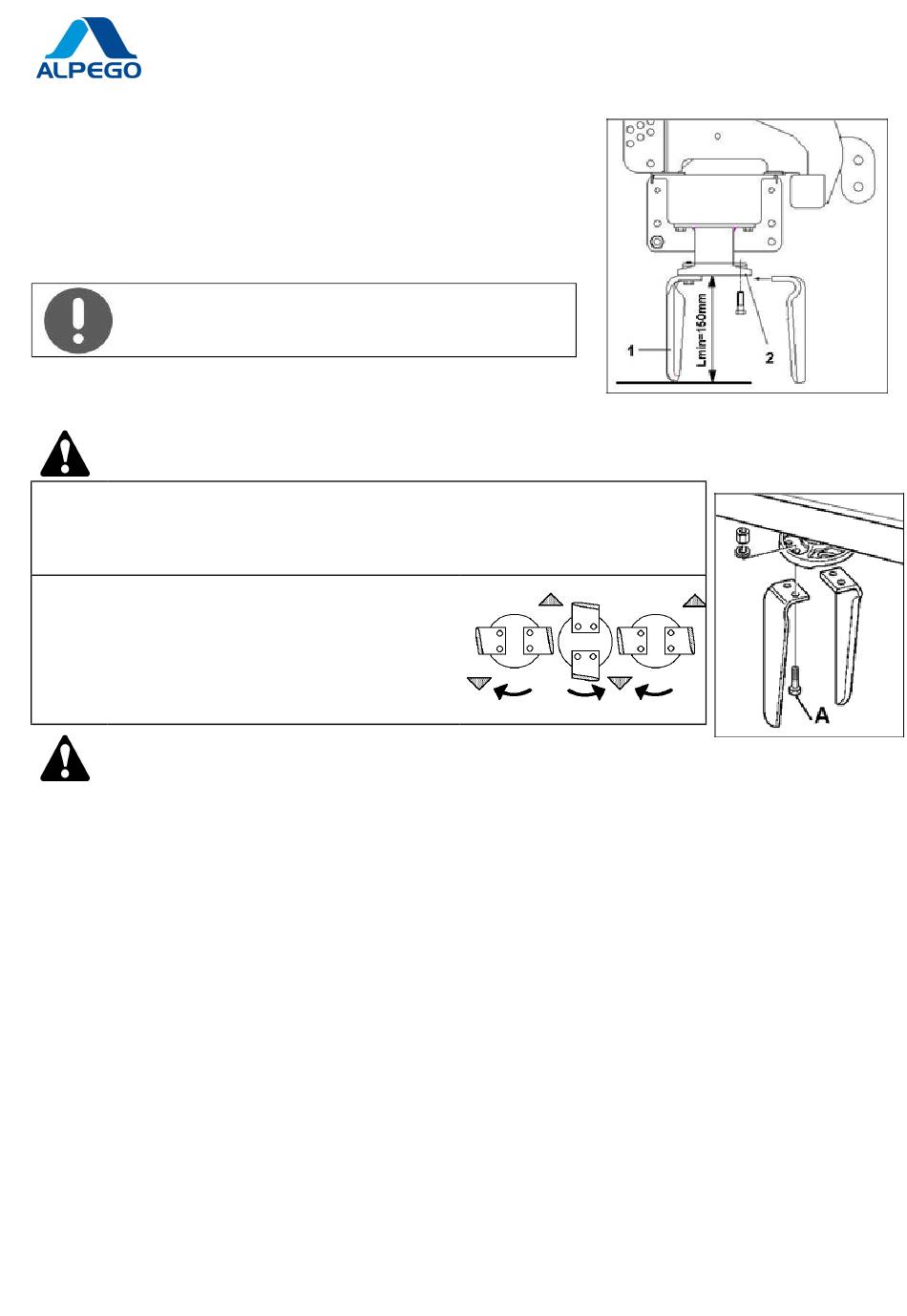

The tines (1) of the soil tillage implement are made of hardened, high-strength steel.
The tines are subject to wear and must be replaced no later than when they have
reached a length of Lmin.= 150 mm. For great working depths, the tines must be
replaced earlier in order to avoid damage and wear to the tool carriers (2).
If the tines fall below the minimum length of 150 mm, claims
due to rock damage shall not be accepted.
6.5. Remplacement the tines
Lift up the rotary harrow and support it by some stands to avoid sudden sinkings
of the machine.
The blades with which it comes equipped the machine are adapted for workings on lands of normal
conformation. Everyday control their usury and integrity. In case during the job they had for
accidental causes folded (or to be broken off) is necessary to replace them immediately, assemble
the new blade in the identical position of that old blade.
Unscrew the fixage bolts A and remove the wear and tear
blades
WARNING: as you fix the new blades, put the cutting side
according to the direction of rotation of the rotor, as showed in
the picture. Head of the screw A must rest on the blade.
Once made the assemblage of every fixing bolt, tighten them
by a driving torque 33 Kgm.
ALWAYS USE ORIGINAL SPARE PARTS ALPEGO.
Verify (40 or 50h) the thickness of the semiprotections of the rotores (cod. E01962); if too much usurate
proceed immediatly to their substitution.
