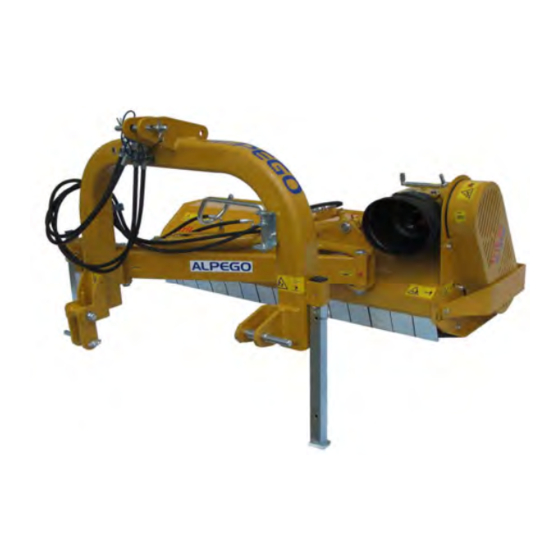

VERGE MOWER

TL18

TL31

TL33

D11021/5

Code:

31768

USE AND MAINTENANCE MANUAL

Da matr:

A matr:

INSTRUCTIONS TRANSLATED FROM THE ORIGINAL

Table of Contents

Need help?

Do you have a question about the TL18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alpego TL18

Page 1 VERGE MOWER TL18 TL31 TL33 D11021/5 Code: 31768 USE AND MAINTENANCE MANUAL Da matr: A matr: INSTRUCTIONS TRANSLATED FROM THE ORIGINAL...
Page 2 UNI EN ISO 4254-1 ISO 11684 ISO 11684 ISO 11684 ISO 11684 ISO 11684 Gambellara: La ditta Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 4 6.6. LUBRICANTS TO BE USED ( L.= litres ) ....................... 30 7. ACCESOIRES ................................31 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 5: General Information
4. Costruction year [es: 1305 = 13 (2013) + 05 (may)] The specified weight refers to the machine provided with the accessories INFORMATION GENERAL Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 6: Technical Specifications
Right parallelogram arm 11. Protection plates 17. Rear protection rubber Supporting feet 12. Skids SPECIFICATIONS TECHNICAL Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 7: Technical Description
1500 1810 TL18-140 1400 1500 2010 1100 TL18-160 1600 1500 2210 1300 SPECIFICATIONS TECHNICAL Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 8 TL31 - 140 TL31 - 160 TL31 - 180 TL31 - 200 SPECIFICATIONS TECHNICAL Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 9 B (cm) C (cm) D (cm) E (cm) TL33-140 TL33-160 TL33-180 TL33-200 SPECIFICATIONS TECHNICAL Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 10 1”3/8 z = 6 - WWZ 1710 1”3/8 z = 6 M10260W SPECIFICATIONS TECHNICAL Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 11: Safety Regulations
When circulating on the road, it is necessary to follow the traffic regulations of the country where the machine is being used REGULATIONS SAFETY Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 12 Before using the machine, it is very important that operators become familiar with all the controls and their functions. REGULATIONS SAFETY Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 13 Anti-dust mask, if the type of product you are working on raises a lot of dust, or if the soil is very dusty, or if an open tractor is being used. REGULATIONS SAFETY Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 14: Safe Maintenance
The owner’s manual should be kept for the whole working lifetime of the machine. REGULATIONS SAFETY - 10 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 15 Follow current rules also for the scrapping of the machine. REGULATIONS SAFETY - 11 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 16: Safety Signs
Do not approach the shaft while it is rotating. REGULATIONS SAFETY - 12 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 17 200. This is a special accessory only suitable for some types of tractor. REGULATIONS SAFETY - 13 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 18: Sound Level
Before starting-up the machine re-install the accident prevention devices if they have been removed for transportation purposes REGULATIONS SAFETY - 14 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 19: Installation
In particular, respect the tightening torque values of the screws that come with the machine. INSTALLATION - 15 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 22 Equipment mass M =……………...Kg This also improves stability. INSTALLATION - 18 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 23 FOR USE INSTRUCTIONS - 19 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 24: Hydraulic Shock Absorber
By acting on the tilting distributor, tilt the machine until it is parallel to the incline. FOR USE INSTRUCTIONS - 20 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 25: Adjusting The Working Depth
Upper arm Skid regulation Roller regulation FOR USE INSTRUCTIONS - 21 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 26 (A) MUST be in the “FLOAT” position FOR USE INSTRUCTIONS - 22 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 27: How To Use
FOR USE INSTRUCTIONS - 23 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 28: Troubleshooting
The ground which has already been worked on should always be to the right of the driver. The best system is to work along alternate strips. FOR USE INSTRUCTIONS - 24 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 29: Problems And Causes
The machine has been driven or Replace broken parts blocked too suddenly FOR USE INSTRUCTIONS - 25 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 30: Maintenance
M 8 M 10 M 12 M 14 M16 M18 M20 M 22 M 24 driving torque driving torque MAINTENANCE - 26 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 31 You should be equipped with a suitably long metal ruler which touches all four edges when placed on the two pulleys. MAINTENANCE - 27 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 33: Lubrication Plan
AND CLEAN DISCHARGE TAPS IF MAGNETIC TL18 TL31 TL33 MAINTENANCE - 29 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 34 Kg.0.01 for each Pakelo NLGI 2 greaser EP GREASE NLGI 2 MAINTENANCE - 30 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 35 The weight of the machine varies whenever a new accessory is added - make sure that tractor stability is not jeopardised accesoires - 31 Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
Page 36 Siège social: Via Giovanni e Giuseppe Cenzato, 9 36045 LONIGO (VICENZA) – ITALY Tel: 0444/646100 – fax: 0444/646199 E-mail: info @ alpego.com Internet: www.alpego.com Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa...
