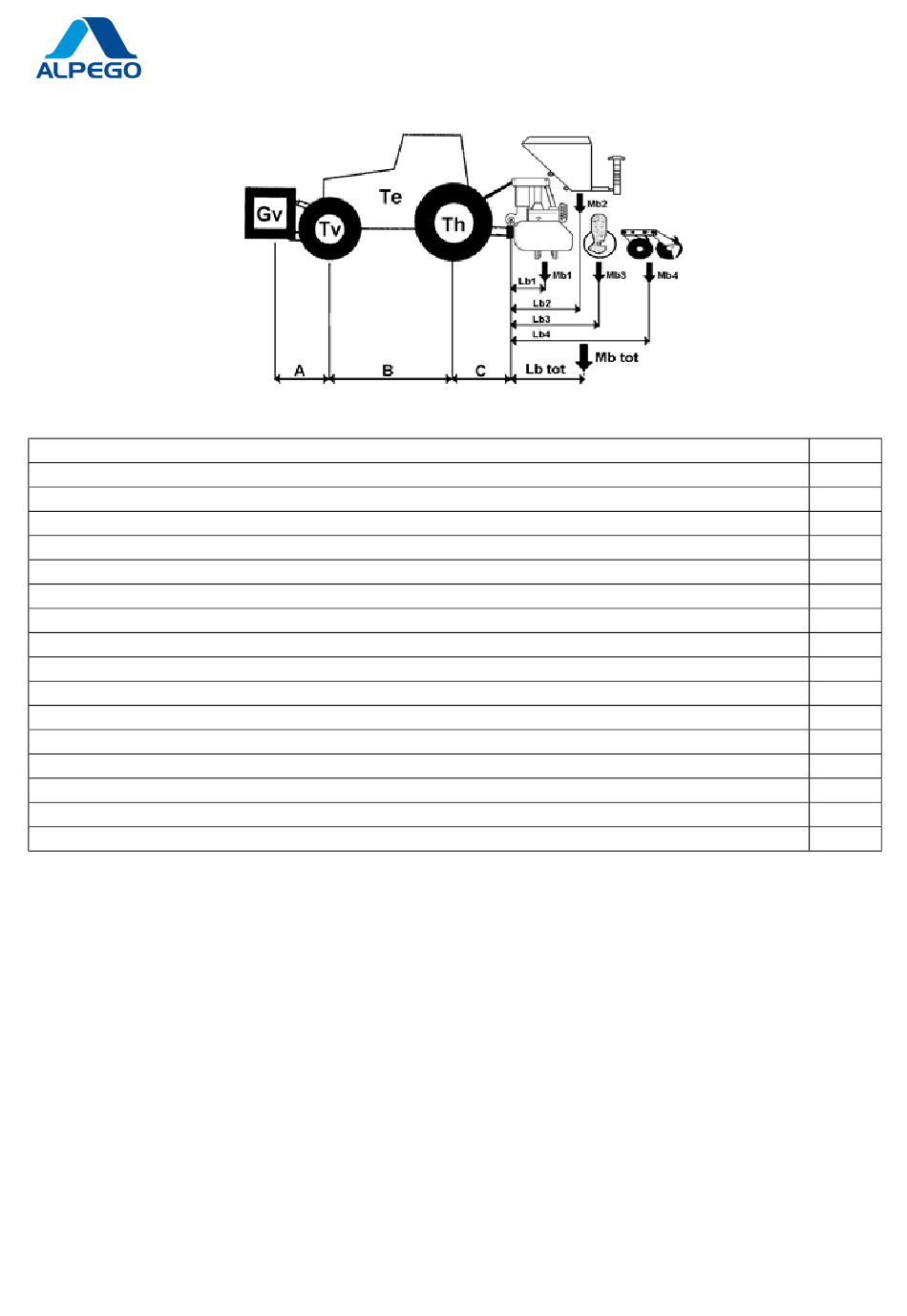

Refer to the following list:
A = Distance of the front axle from the front ballast (m)
B = Tractor wheelbase (m)
C = Distance of the rear axle from the implement's lower hitch (m)
Gv = Ballast weight (kg)
Te = Empty weight of the tractor
Tv = Load on the tractor's front axle when empty
Th = Load on the tractor's rear axle when empty
Lb tot = Distance from the lower hitch to the center of gravity of the complete implement combination (m)
Lb1 = Distance from the lower hitch to the center of gravity of the first combi machine (m)
Lb2 = Distance from the lower hitch to the center of gravity of the second combi machine (m)
Lb3 = Distance from the lower hitch to the center of gravity of the third combi machine (m)
Lb4 = Distance from the lower hitch to the center of gravity of the fourth combi machine (m)
Mb1 = Overall weight of the first implement (kg)
Mb2 = Overall weight of the second implement (kg)
Mb3 = Overall weight of the third implement (kg)
Mb4 = Overall weight of the fourth implement (kg)
Mb tot = Overall weight of the complete implement combination (kg)
Where:
1) Must be measured.
2) Consult the tractor's operation and maintenance manual.
3) Must be calculated.
4) Consult the operation and maintenance manual of the required implement.
