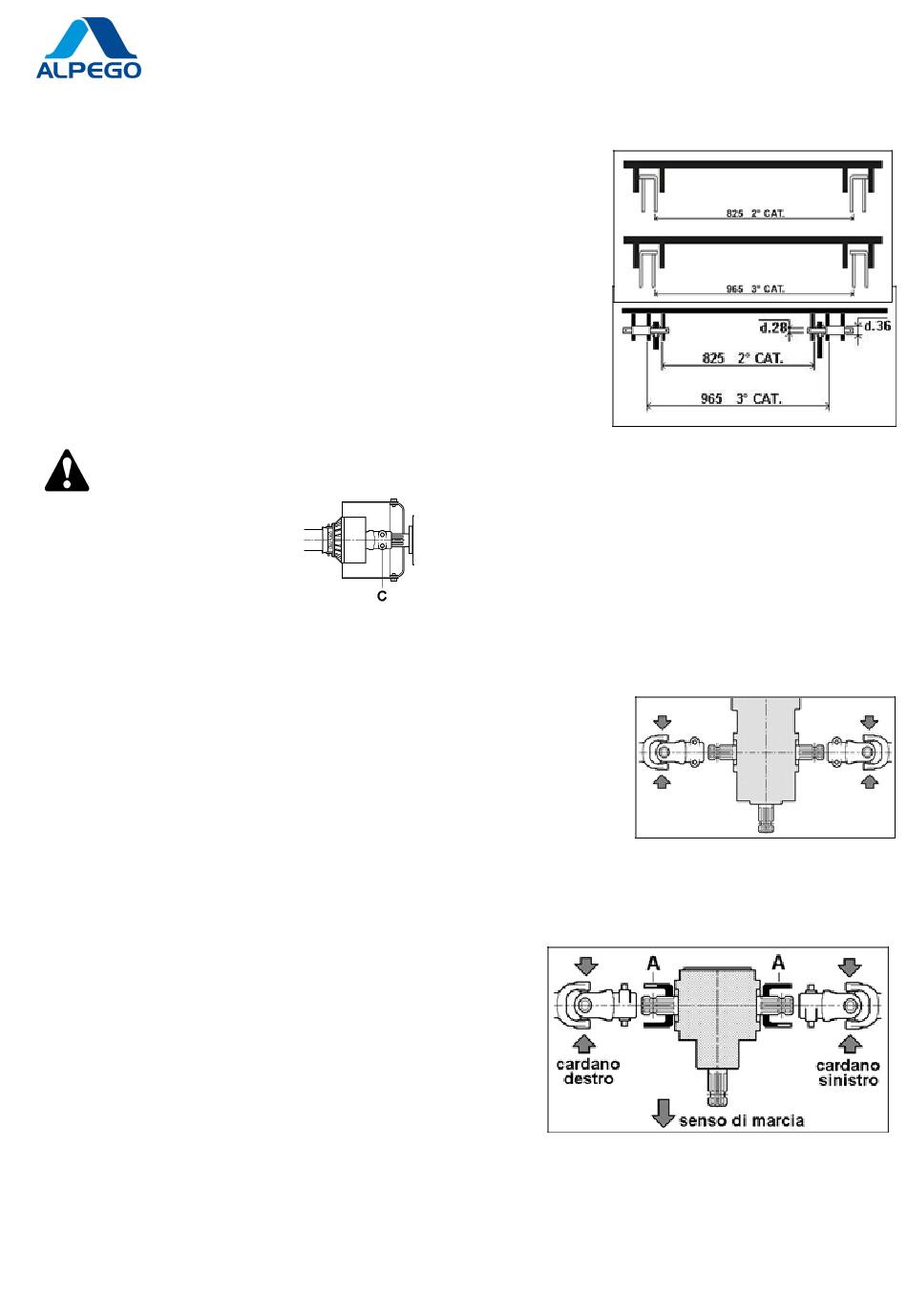

4.7. Positionnament of 2° or 3° category lower hitch "DJ – DP"
DJ Power Harrow linking points must be covered as shown in the picture according to
the tractor three point hitch class.
DP Power Harrow, according to the tractor connections class, the coupling pins
shall be assembled as shown in the side picture.
4.8. Universal central joint connection
the protection is a safety
element, never utilize the
machine without this
component
4.9. Universal side joint connection for rotodent DP/ DTEK
The side universal joints shall be placed into the suitable slots so that the spiders
at both the sides of the change gear were always in phase with one another, as
indicated in the figure.
VERY IMPORTANT: when installing the automatic drive shafts make sure to
position them correctly (right hand one to the right and left hand one to the left)
Read and follow the indications contained in the instruction manual relating to the
universal
joint.
4.10. Universal side joint connection for rotodent DJ / DMAX
The lateral universal joints will be positioned into the corresponding
slots so that the yokes at both sides of the gear box are always aligned
with one another, as shown in the picture.
The two templates "A" won't allow for a wrong positioning.
VERY IMPORTANT: when installing the automatic drive shafts make
sure to position them correctly (right hand one to the right and left
hand one to the left)
Read and follow the directions contained in the owner's manual of the
universal joint.
23 Strictly confidential information - All rights to the contents of this document are reserved. It is forbidden to copy, use, distribute, even partially or
otherwise disclose such information, unless expressly authorised by "ALPEGO S.p.a.". Violations will be prosecuted in accordance with the law.
Codice: Q00A00017 Rev. 23_11/2022
Connect the central universal joint to the power takeoff of the
machine by inserting the two buttons C into the suitable slots.
Check that the min. and max. length of the
joint were compatible with the required working lengths.
Connect to the tractor the opposite end of the universal joint
by verifying that the button was inserted into the suitable slot
GEAR BOX SEEN FROM THE TOP
