4.12. Electric connection

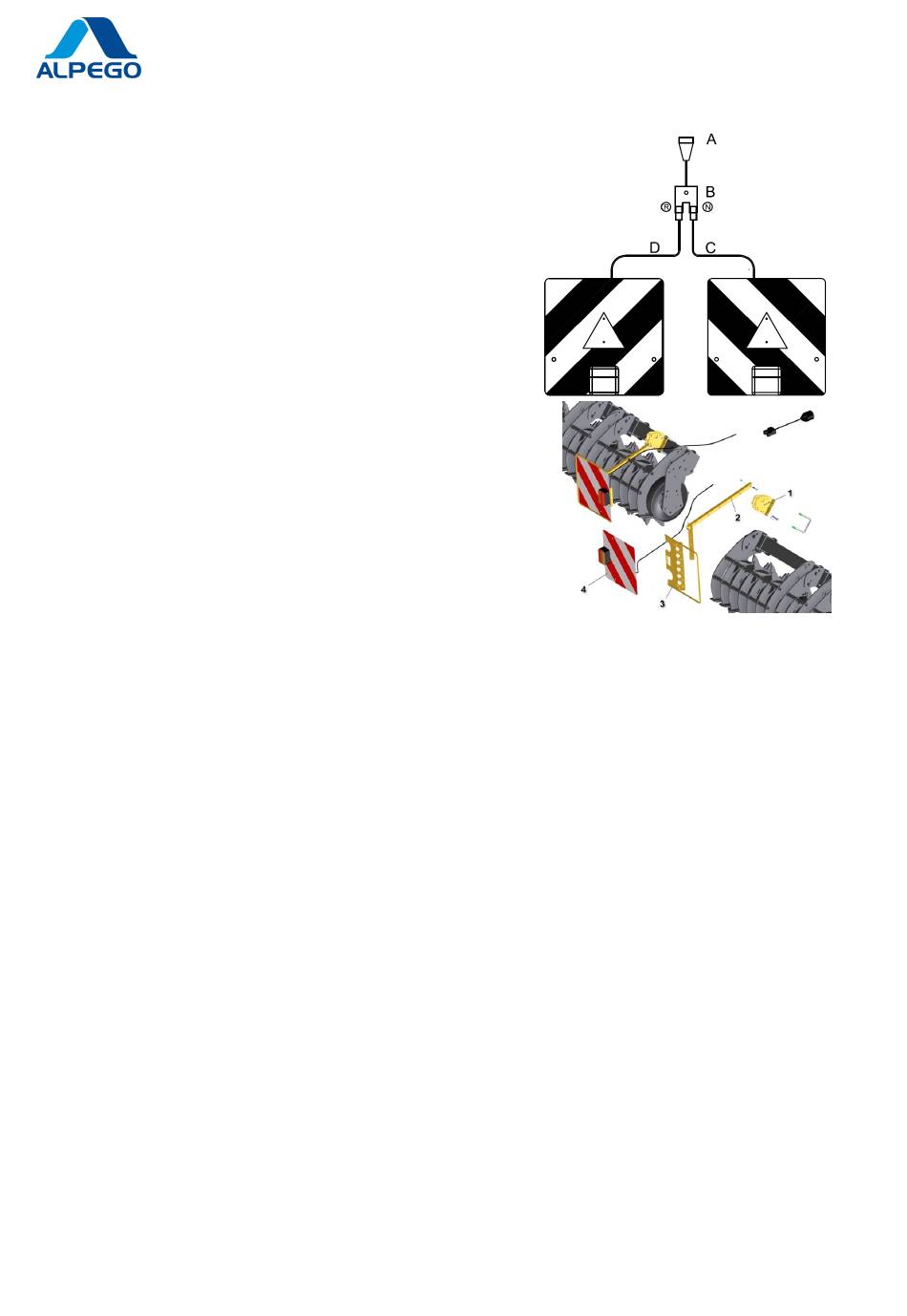

Connect the 7-pole plug (A) of the light-supporting boards with the
tractor
Connect the cables of the C and D boards with the B device; be careful
to match the correct colour of the connector C and D: if the colour is black
it must be connected with the letter N which is present in the B device, if
the colour is red it must be connected with the letter R of the B device .
By using the controls in the tractor (direction blinkers) check which board
must be mounted on the right side of the implement and which one on the
left side.
Secure the brackets 1 on the implement by means of
u-shaped clamps, then secure the arms 2 with a screw and a pin.
Attach the elements 3 to the arms 2.
Mount the light-supporting boards 4 on the supports 3, and insert the plug
into the electric system of the tractor. Check which one must be mounted on
the right side and which one on the left side.
Once you are sure of the correct position, secure the boards 4 on the
elements 3.
For the left-side of the implement mount the board and its support mirroring
the position described above
The light-supporting boards have 2 specific positions:
Working position
Trasport position
When the ROTODENT is open and working THE ARMS OF THE LIGHT-SUPPORTING BOARDS MUST BE
LIFTED UP (see picture below)
When you want to FOLD the rotodent to store or to transport it, it is necessary to LOWER THE BOARDS (see
picture below)
4.13. Verification of raising ability and stability of the tractor with rotary harrow
When a machine comes coupled to the tractor, becoming to the ends of the street circulation integrating part of
the same one, can alter of the stability and cause difficulty in the guide and the job.
The application of a machine to the tractor, involves one various distribution of the weights on the aces.
Depending on the composition of the machine, it is therefore advisable to add ballast to the front part of the tractor so as to
adequately distribute the weight on the axles
26 Strictly confidential information - All rights to the contents of this document are reserved. It is forbidden to copy, use, distribute, even partially or
otherwise disclose such information, unless expressly authorised by "ALPEGO S.p.a.". Violations will be prosecuted in accordance with the law.
Codice: Q00A00017 Rev. 23_11/2022
POSITION OF THE LIGHT-SUPPORTING BEAM
WORK TRANSPORT
