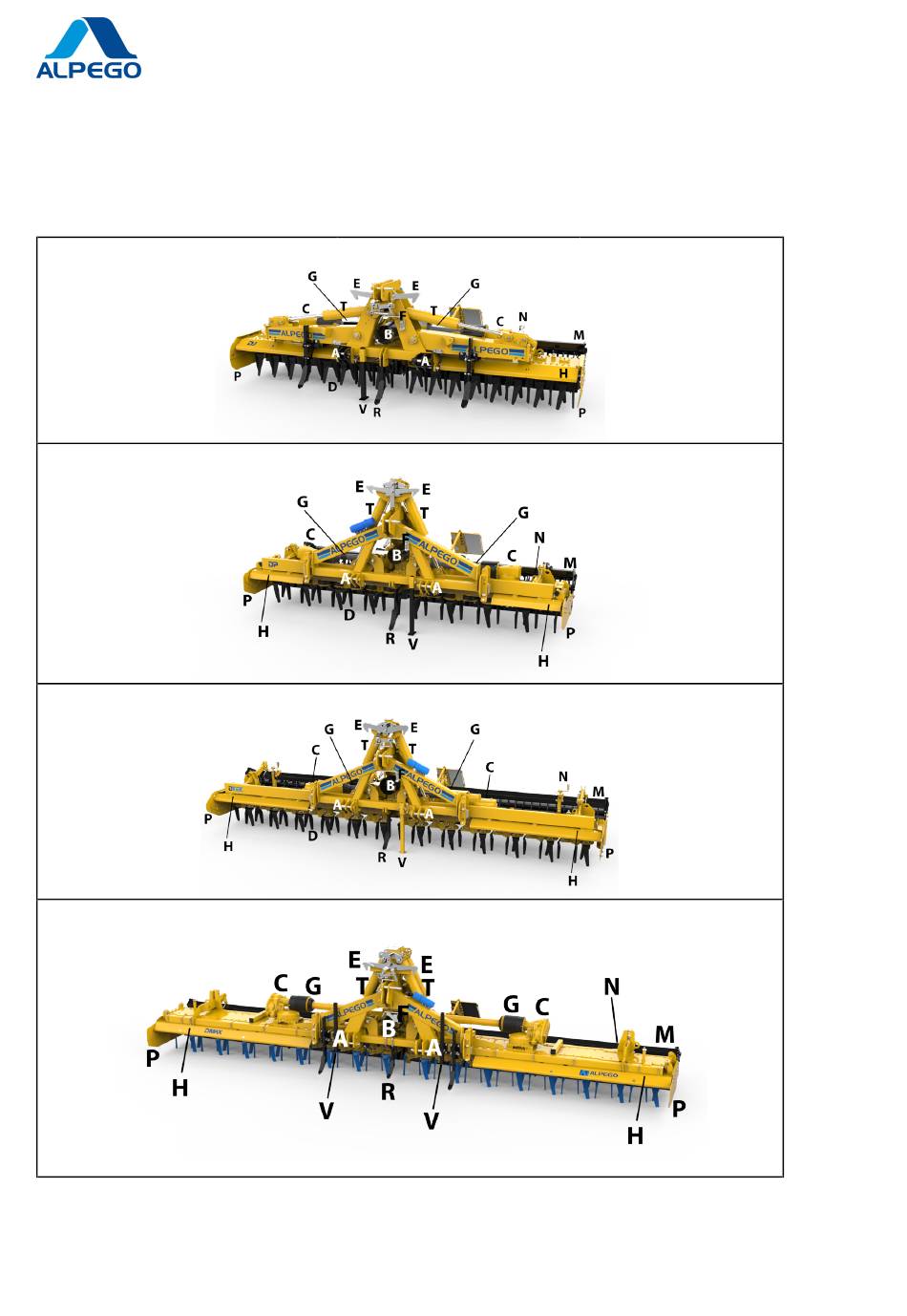

2.2. Key elements of rotodent
A) 3-point connection
B) Central speed reduction or change gear
C) Side speed reduction or change gear
D) Teeth and teeth-holder
E) Hooks for rotodent closing
9 Strictly confidential information - All rights to the contents of this document are reserved. It is forbidden to copy, use, distribute, even partially or
otherwise disclose such information, unless expressly authorised by "ALPEGO S.p.a.". Violations will be prosecuted in accordance with the law.
Codice: Q00A00017 Rev. 23_11/2022
F) Universal joint support
G) Side universal joint
H) Front guards
M) Rear levelling roller
N) Rear clod bar adjusting crank
ROTODENT DJ / DJ SUPER
ROTODENT DP
ROTODENT DTEK
ROTODENT DMAX
P) Mobile body sides
R) Central track eradicators
T) Folding cylinders
V) Support leg
