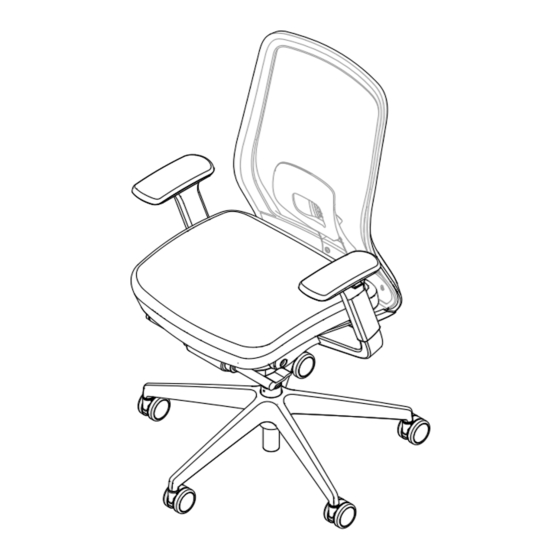

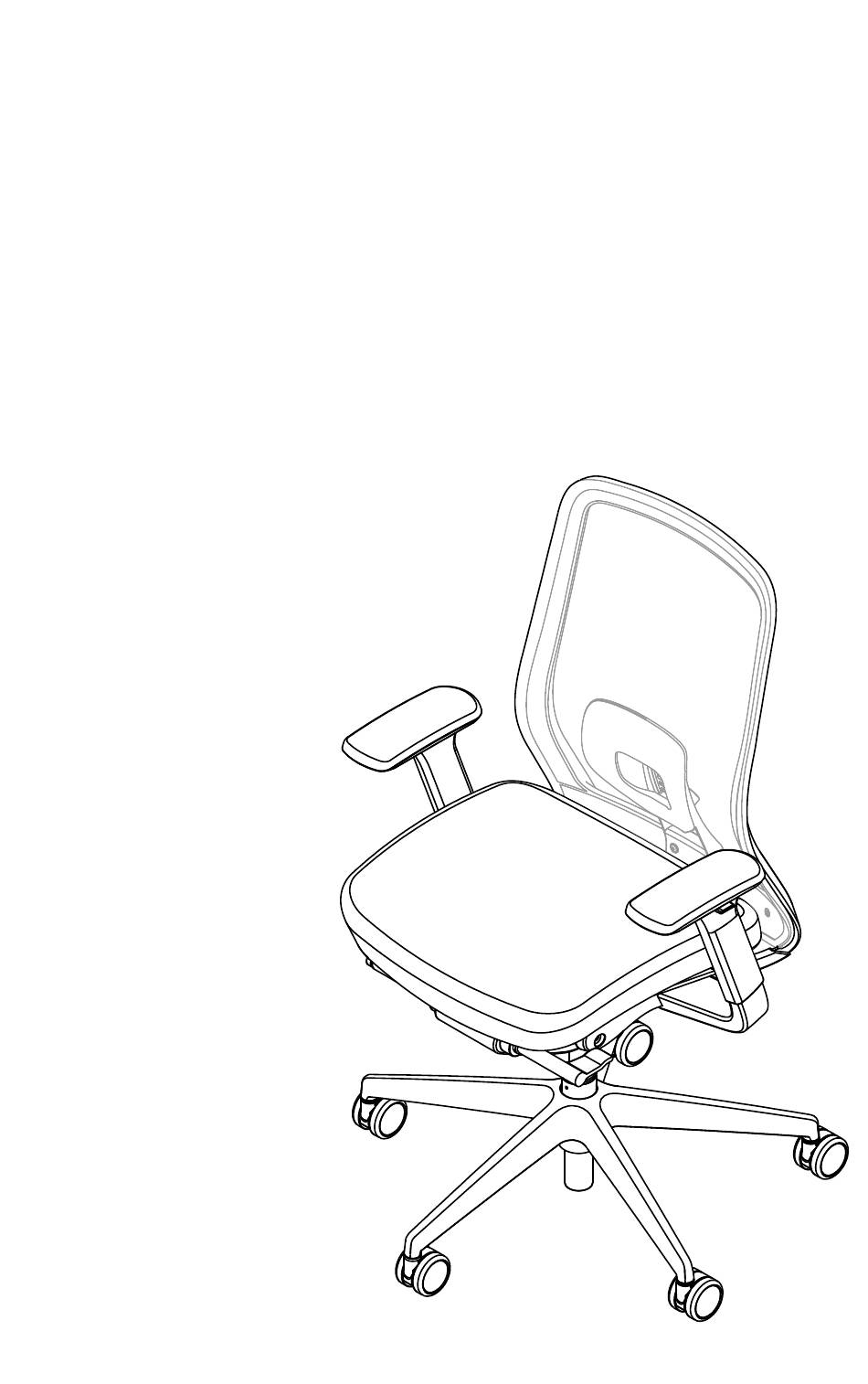

Lavo
ASSEMBLY INSTRUCTIONS
Mesh with Design.
Breeze through your day on our lightweight
Lavo and its twist on the all-mesh makeup.
With an eye for elevating the working
experience using core ergonomics,
this design offers all-day comfort in
a sophisticated design — including
all the features and options to fit the
modern office.
C6812 Rev A
www.sitonit.net
1
|
|
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SitOnit Seating Lavo Chair
Summary of Contents for SitOnit Seating Lavo Chair
- Page 1 Lavo ASSEMBLY INSTRUCTIONS Mesh with Design. Breeze through your day on our lightweight Lavo and its twist on the all-mesh makeup. With an eye for elevating the working experience using core ergonomics, this design offers all-day comfort in a sophisticated design — including all the features and options to fit the modern office.
- Page 2 Lavo ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (888) 274-8664 or sitonit@exemplis.com.
- Page 3 Lavo ASSEMBLY INSTRUCTIONS Parts • Hardware Pack: Back • • Seat With Attached Floating M6 x 25 mm Screw (4) Synchro Mechanism • Cylinder (1) • Base Back Cylinder Seat With Attached Floating Synchro Mechanism Base HARDWARE M6 x 25 mm Screws C6812 Rev A www.sitonit.net...
- Page 4 Lavo ASSEMBLY INSTRUCTIONS Step 1: Place the seat assembly on a firm flat surface, before inserting the back into the seat assembly. You can use the box the chair shipped in or a table for this step. C6812 Rev A www.sitonit.net...
- Page 5 Lavo ASSEMBLY INSTRUCTIONS Step 2: Align the holes and attach the back to the seat assembly. Continue to step 4 on page 6. 1:1 HARDWARE TOOLS M6 x 25 mm Screw 5 mm Hex Key C6812 Rev A www.sitonit.net...
- Page 6 Lavo ASSEMBLY INSTRUCTIONS Step 3: Push the cylinder into the center of the base. C6812 Rev A www.sitonit.net...
- Page 7 Lavo ASSEMBLY INSTRUCTIONS Step 4: Align the mechanism with the cylinder and push until seated. The cylinder is seated correctly when you can lift the chair and the cylinder stays attached to the mechanism. C6812 Rev A www.sitonit.net...
