Remarks:
- The difference between the measuring of leads and energetic cables is as follows: for the leads the
insulation between all the pairs of cores is measured, for energetic cables – between each of cores and
the others connected to each other and to the ground.
- During the measurement of energetic cables the lead of AutoISO 2500 marked
to the ground.
- Other remarks and messages the same as in point 3.6.1.
MPI-525 – USER MANUAL

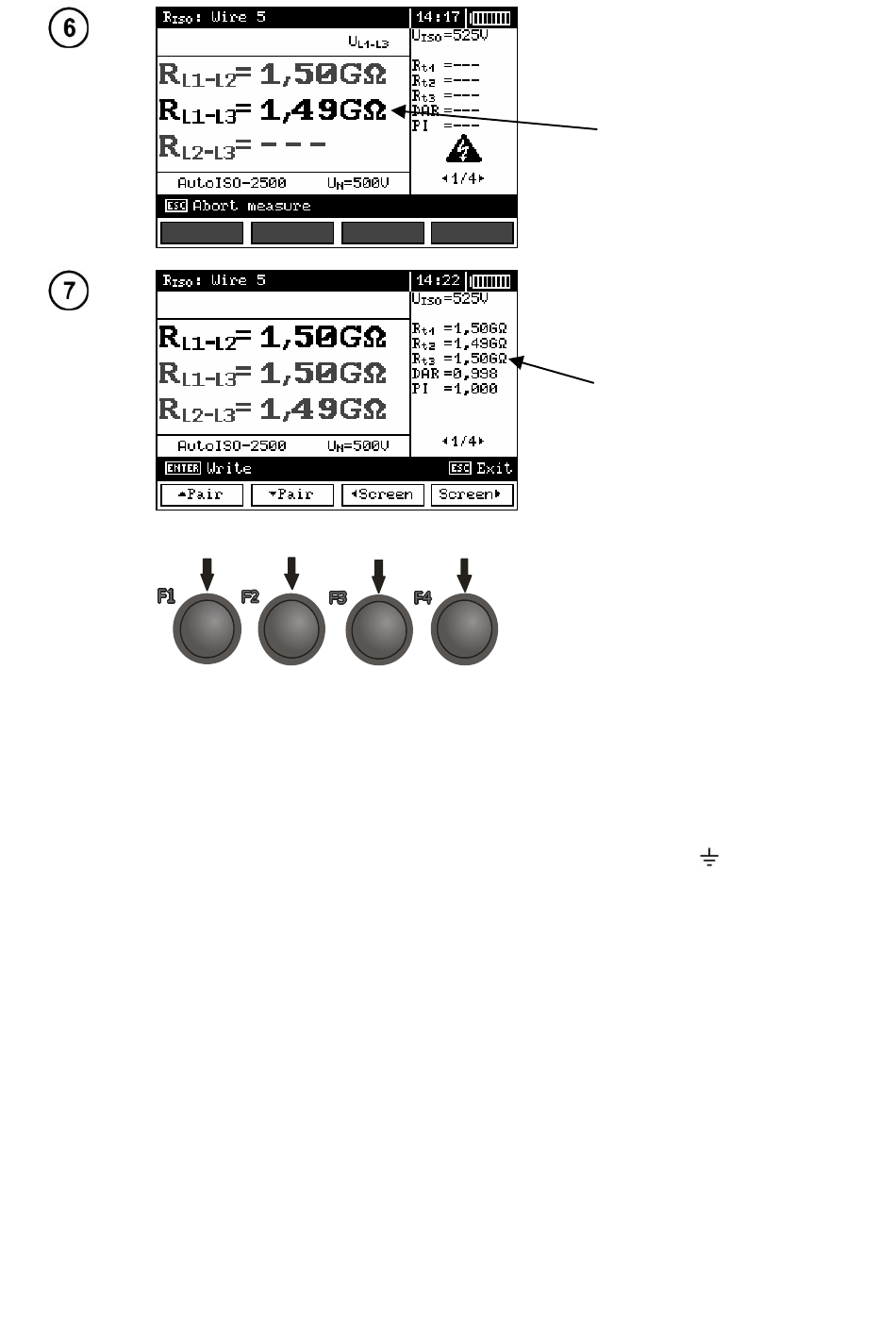

View of the screen during
measurement.
Result of the present
measurement is displayed
in black.
Read out the results.
Additional results regarding
to selected pair of cores
(which main result
is displayed in black)
Selected pair of cores
is changed by means
of F1 and F2 push-buttons.
Groups of results displayed
are changed by means
of F3 and F4 push-buttons.
