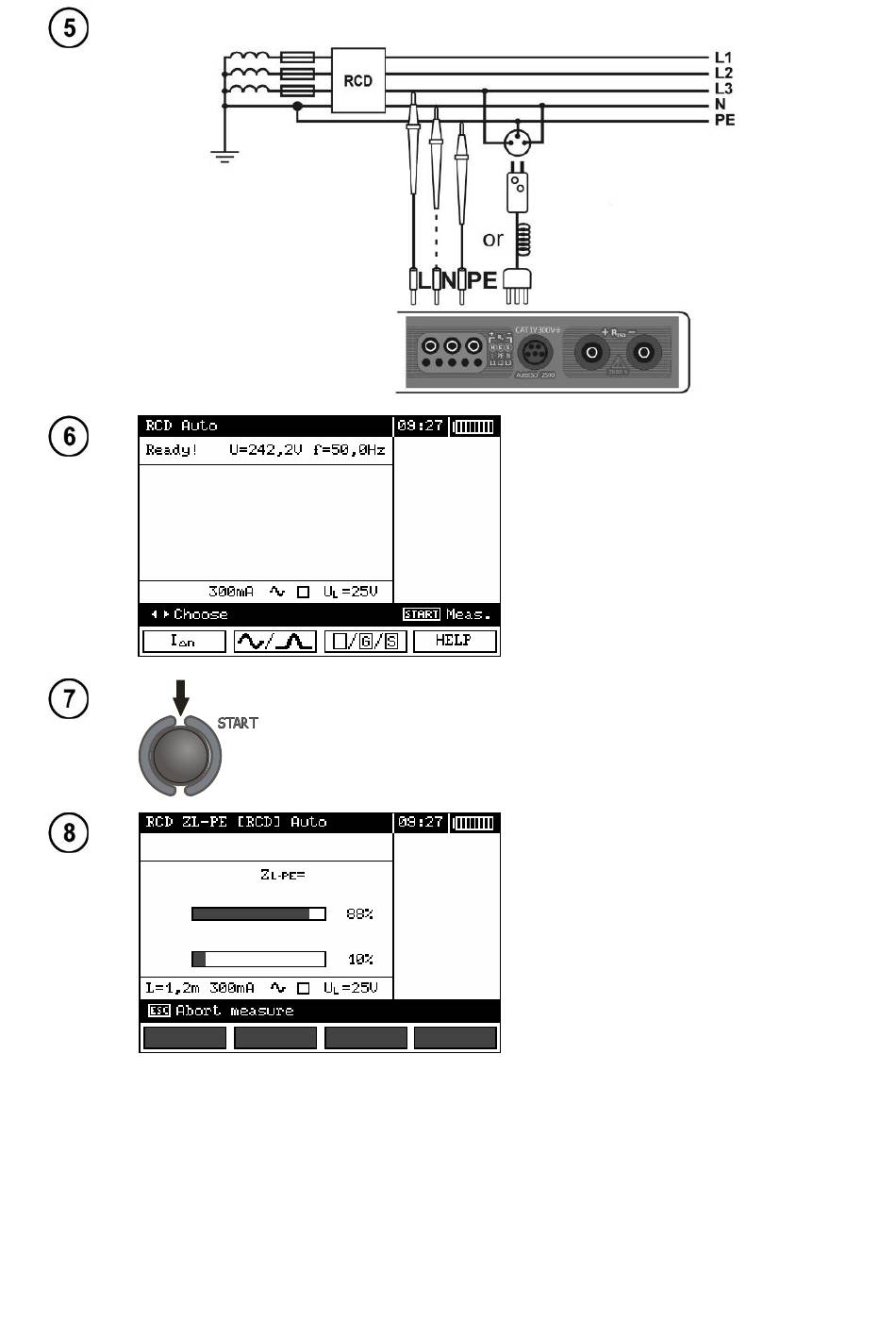

Connect the device to the installation according to the drawing.
Press START push-button to start the measurement. If such
measurements are selected that require triggering of RCD,
operator of the meter should be in the vicinity of RCD and
switch it on each time after it is tripped until the measure-
ments are completed (a longer interruption may signify com-
pletion of the measurements).
MPI-525 – USER MANUAL
The meter is ready for measure-
ment.
Value of network voltage and fre-
quency can be read on the display.
Progress of measurement process
is shown by progress bars: lower
bar – total cycle; upper bar – meas-
urement of Z RCD and I
L-PE
.
A
