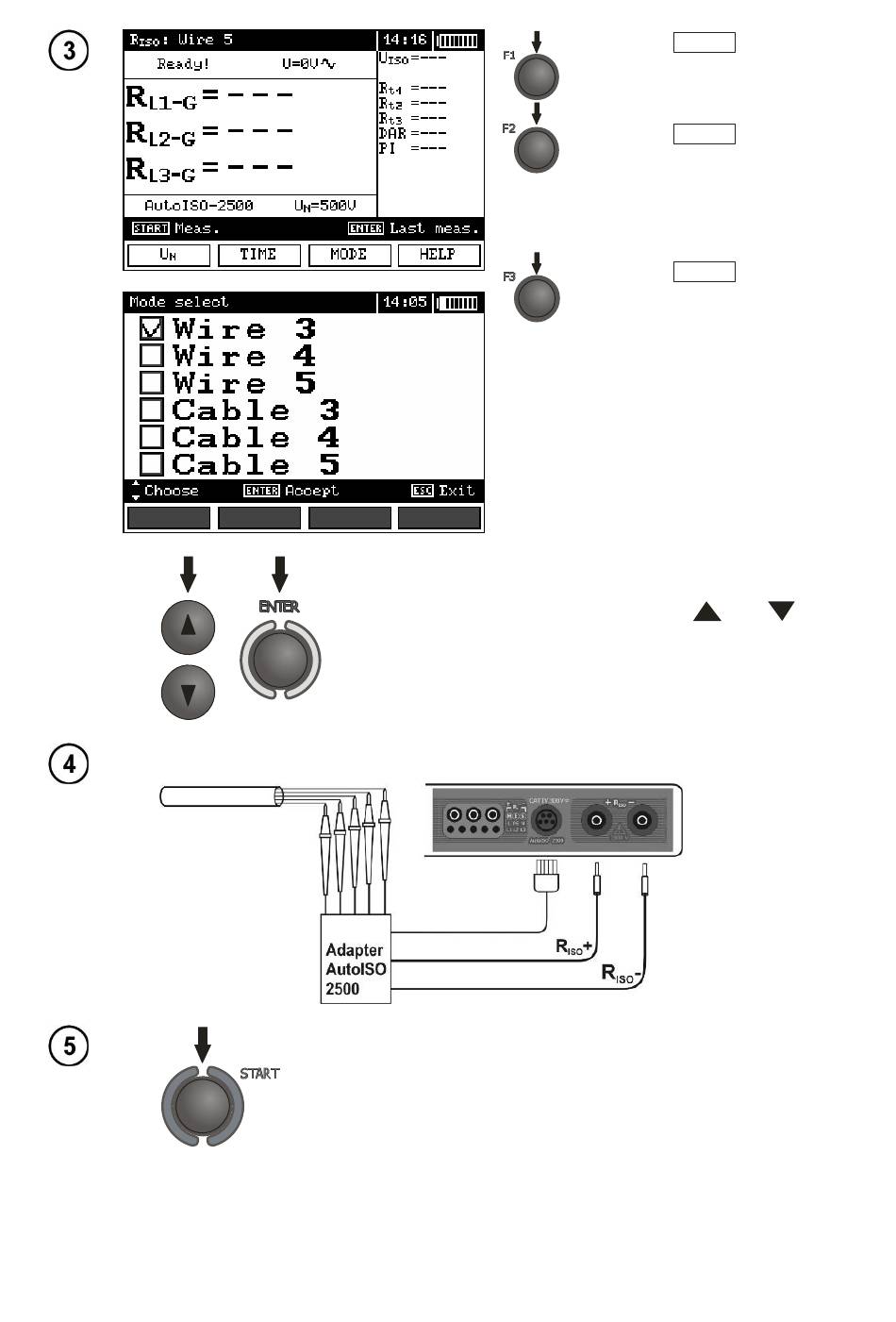

Connect AutoISO-2500 adapter to the lead tested.
34
Select an appropriate item by means of
push-buttons and confirm by pressing ENTER.
Press START push-buttons to start measurement. First,
checking of voltages on particular pairs of cores is per-
formed.
If any of the voltages exceeds allowable voltage, the sym-
bol of this voltage with "!" mark is displayed (e.g. U
the measurement is aborted.
MPI-525 – USER MANUAL
U
Press F1 push-button
N
and move to selection of
nominal test voltage U
Press F2 TIME push-button
and move to selection
of a single measurement
time.
Press F3 MODE push-button
and move to selection of lead
or energetic cable type (3-, 4-
or 5-cores lead).
and
.
N
!) and
N-PE
