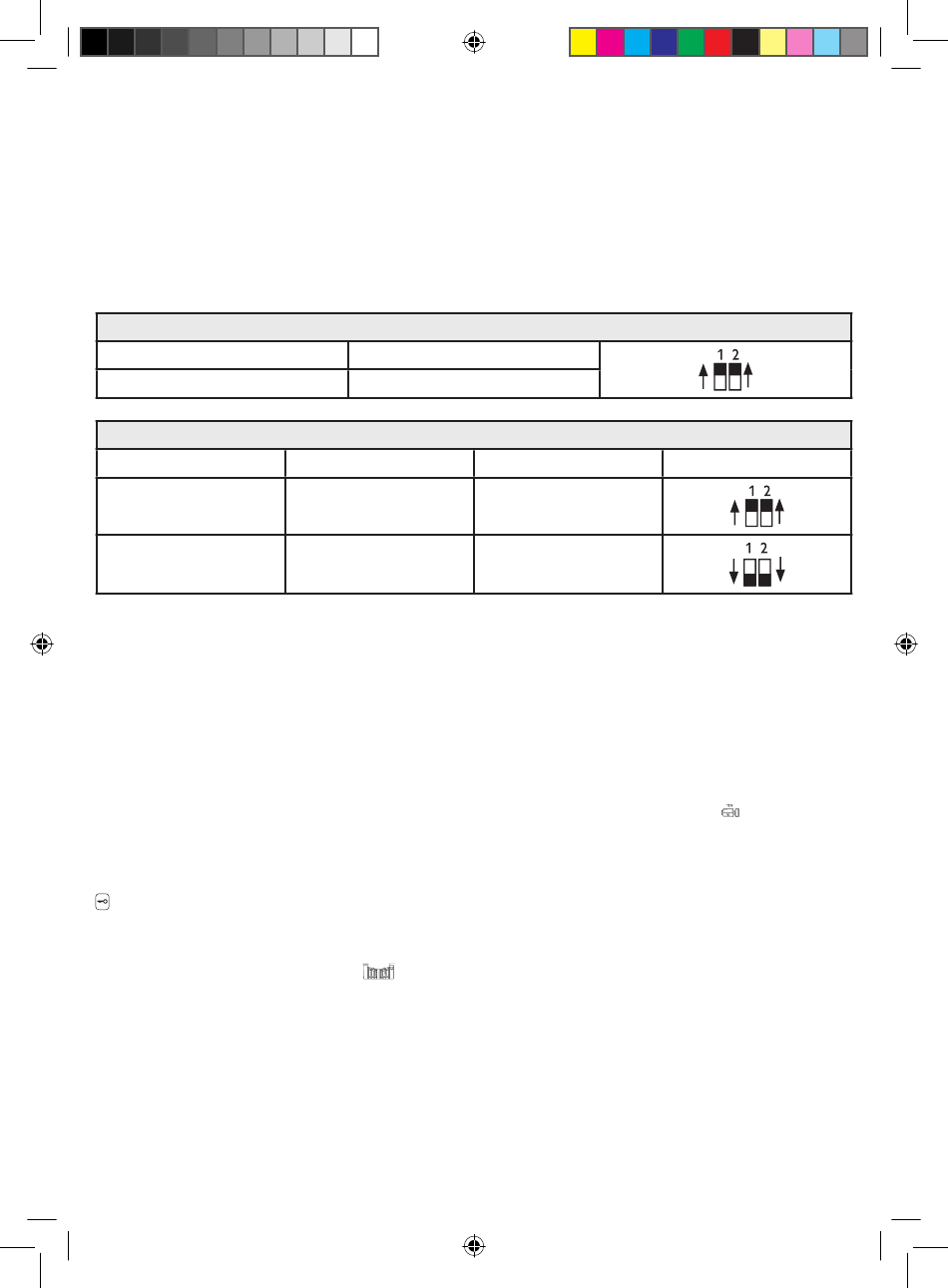

VIDEO MONITOR DIP SWITCh SETTING
IMPORTANT !
Depending upon the installation (1 or 2 video monitors) the position of the dip-switches on
the back of each video monitor must be set correctly (see table below).
Any changes to the position of the dip-switches on either the main or optional video monitor
will require the power supply to be disconnected for 30 seconds and then re connected.
Status Switch 1
ON (top)
Monitor
Master
Slave
The distance between 2 video monitors is limited to 25m (5 x 0.75mm)
IMPORTANT !
Do not allow the monitor to hang from the wires.
Do not disconnect the mini-connectors by pulling the wires, release the body of the connec-
tors.
CONNECTING AN ELECTRIC STRIKE OR LOCK
If an electrical lock or strike is added to the installation, connect it to the terminals
the door station (use only 12Vdc electric lock).
IMPORTANT !
This function can only be used if the screen is switched on and by pressing shortly the key
and then release it (the screen switches off a few seconds and switches on again).
CONNECTING AN AUTOMATIC GATE OPENER
Connect it directly to the terminals
current-free "dry" contact to connect to the "push button" control of your automatic gate opener.
IMPORTANT !
This function can only be used if the screen is switched on and by pressing at least 2 sec-
onds the key and then release it (the screen switches off a few seconds and switches on
again).
ESVK7
ESVK7_IT_ENG_FR_ES.indd 9
1 MONITOR SETUP
Status Switch 2
ON (top)
2 MONITORS SETUP
Status switch 1
ON (top)
OFF (down)
on the back of the door station. The door station supplies a
Stato switch 2
ON (top)
OFF (down)
on the back of
UK-9
