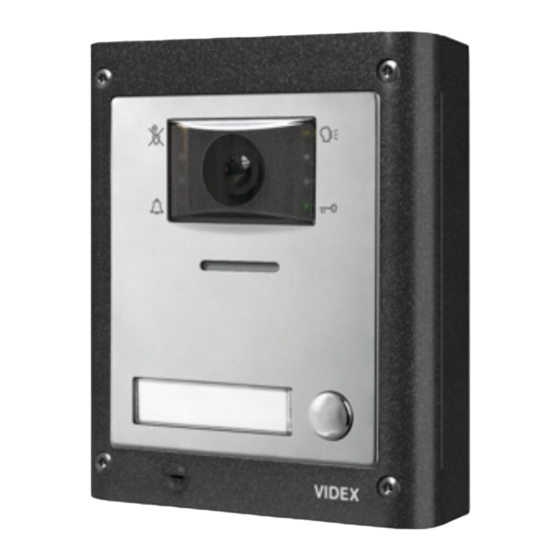

VIDEOKIT
ESVK/6488 SERIES
"2 Wire" bus one way, two way videokit
ESVK
Rev.0.2
ESVKX
ESVKC
66550031-EN - V6.1 - 15/08/20
Rev.0.2
Rev.0.3
Installation handbook
6488
We recommend
This equipment is installed by a
Competent Electrician, Security or
Communications Engineer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESVK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Videx ESVK Series

Summary of Contents for Videx ESVK Series

  • Page 1 VIDEOKIT ESVK/6488 SERIES “2 Wire” bus one way, two way videokit ESVK Rev.0.2 ESVKX Rev.0.2 ESVKC Rev.0.3 6488 Installation handbook We recommend 66550031-EN - V6.1 - 15/08/20 This equipment is installed by a Competent Electrician, Security or Communications Engineer.
  • Page 2 This manual has been written and revised carefully. The instructions and the descriptions which are included in it are referring to VIDEX parts and are correct at the time of print. However, subsequent VIDEX parts and manuals, can be subject to changes without notice.

  • Page 3: System Components And Available Versions

    ESVK/6488 Series “2 wire Bus” videokit System components and available versions ESVK/6488 Colour videokit. OUTDOOR INDOOR STATION STATION Videomonitor 135,0 45,0 22,7 Art. 6488 pag. 23 Camera unit Art. 4384 pag. 10 ACCESSORIES Power supply Art. 2321 pag. 28 15,7 43,8 120,0 Flush Surface Mounting Mounting...
  • Page 4 ESVK/6488 Series “2 wire Bus” videokit System components and available versions ESVKX/6488 Colour videokit with embended proximity key reader. OUTDOOR INDOOR STATION STATION Videophone 135,0 45,0 22,7 Art. 6488 pag. 23 Camera unit Art. 4384X pag. 10 ACCESSORIES Power supply Art. 2321 pag. 28 15,7 43,8 Card format fob...
  • Page 5 ESVK/6488 Series “2 wire Bus” videokit System components and available versions ESVKC/6488 Colour videokit plus a codelock module. OUTDOOR INDOOR STATION STATION Videomonitor 135,0 45,0 22,7 Art. 6488 pag. 23 Camera unit Art. 4384 pag. 10 ACCESSORIES Power supply Art. 2321 pag. 28 Codelock unit Power supply converter...

  • Page 6: General Directions For Installation

    40nF and is an accumulation of all lengths and branches of the cable. For example: because of cable capaci- tance, the Videx CM2 cable used in a single system cannot exceed the 400m considering all lengths and branches of the cable.
  • Page 7 General directions for installation CABLES LENGTH & SIZE 7" Videophones Art.6788 Art.KRV782 Wires Section Cable Type B max (mm2) VIDEX CM2 0.50 CAT5 UTP/CW1308 0.22 Std Telephone Cable 0.28 Standard wire Art.2321 - 7 - ESVK/6488 Series - Installation handbook...
  • Page 8 7" Videophones 7" Videophones Art.6788 Art.KRV782 Art.6788 Art.KRV782 Wires Section Cable Type B max (mm2) VIDEX CM2 0.50 Art318 CAT5 UTP/CW1308 0.22 Std Telephone Cable 0.28 Standard wire Art.2321 - 8 - ESVK/6488 Series - Installation handbook 66550031-EN - V6.1 - 15/08/20...
  • Page 9 Art.6788 Art.KRV782 Art.6788 Art.KRV782 Wires Section Cable Type B max (mm2) VIDEX CM2 0.50 Art.317N CAT5 UTP/CW1308 0.22 Std Telephone Cable 0.28 Standard wire * Using the active distributor Art. 317N, the maximum ca- ble length using CM2 cable increases up to 300 metres.

  • Page 10: Available Versions

    ESVK/6488 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader Balance 4384-0 4384-1 4384-2 4384X-0 4384X-1 4384X-2 STEEL HIGH BRASS MATTE Made in Italy 1 2 3 4 5 6 7 8 RS485 EXPANSION BUTTONS...
  • Page 11 ESVK/6488 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader PROGRAMMING The programming consists of the following settings: • Unit ID (1..15); • Door opening time (2 or 6 seconds); •...
  • Page 12 ESVK/6488 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader RS485 CONNECTION switch to RS485 position With switch 8 in ON position the module can be connected using an Balance RS485 bus connection via an RS485 RS-232...

  • Page 13: Operation

    Titolo: Titolo: Data modifica: Data modifica: 13/06/2019 13/06/2019 slow intermittent acoustic signal until the call is answered, the conversation time expires (programmable time) or the call is inter- Videx Electronics S.p.A. Videx Electronics S.p.A. Notes: Notes: Autore: Autore: Marco Rongoni Marco Rongoni rupted by pressing a push button for a minimum of 2 seconds.
  • Page 14 ESVK/6488 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader PROGRAMMING TAGS (ONLY ART. 4384X VERSIONS) MASTER TAG The external module is supplied with a master tag. The master tag is programmed in-factory, it is white to easily stand out. This tag enables user tags to be programmed or cleared.
  • Page 15 ESVK/6488 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Balance 4384-0 Art. 4384X Speaker unit with built-in camera & proximity key reader 4384-1 4384-2 REPROGRAMMING A MASTER TAGS 4384X-0 4384X-1 4384X-2 If the master tag is lost or damaged, a new one can be programmed using the following procedure: STEEL HIGH BRASS 1.

  • Page 16: Technical Specifications

    ESVK/6488 Series “2 wire Bus” videokit Art. 4384 Speaker unit with built-in camera Art. 4384X Speaker unit with built-in camera & proximity key reader CAMERA NOTES FIELDS OF VIEW MAXIMUM ILLUMINATION DISTANCE FROM CAMERA AT NIGHT The fields of view for standard camera are 55° for vertical angle and 115° for horizontal angle while for Wide Angle camera are 80°...

  • Page 17: Main Features

    GENERAL DIRECTIONS FOR INSTALLATION In order to achieve the best results from the schematics described it is necessary to install only original VIDEX equipment, strictly keeping to the items indicated on each schematic and follow these General Directions for Installation: •...
  • Page 18 ESVK/6488 Series “2 wire Bus” videokit Art. 4901 Digital codelock module LOCK RELEASE BACK EMF PROTECTION A varistor must be fitted across the ter- VARISTOR (MOV) DIODE 1N4002 minals on AC lock release (Fig. 5) and a diode must be fitted across the ter- minals on a DC lock release (Fig.
  • Page 19 ESVK/6488 Series “2 wire Bus” videokit Art. 4901 Digital codelock module PROGRAMMING • Enter the ENGINEER’S CODE: first time type six times 1 (111111 First time six times ENTER THE factory preset) and press ENTER (The red LED will illuminate); 1 “111111” factory "ENGINEER’S CODE"...

  • Page 20: Technical Specification

    ESVK/6488 Series “2 wire Bus” videokit Art. 4901 Digital codelock module CONNECTION TERMINALS SIGNALS CLEANING OF THE PLATE Use a clean and soft cloth. Use moderate warm water or non-ag- SW2 Relay 2 command signal (active low) gressive cleansers. SW1 Relay 1 command signal (active low) Do not use: NC3 Relay 3 normally closed contact •...
  • Page 21 ESVK/6488 Series “2 wire Bus” videokit 4000 Series Surface and flush mounting door station installation EXAMPLE: INSTALLING A FOUR MODULE OUTDOOR STATION fig. 1 fig. 2 fig. 3 fig. 4 fig. 5 fig. 6 fig. 7 fig. 8 fig. 9 fig.
  • Page 22 ESVK/6488 Series “2 wire Bus” videokit 4000 Series Surface and flush mounting door station installation INSTALLING A SURFACE MOUNT DOOR STATION 1. Place the surface box against the wall (165-170cm between the top of the box and the floor level as shown in Fig. 1) and mark the fixing holes for the wall plugs and the hole for the cables (fig. 2).

  • Page 23: Push Buttons

    ESVK/6488 Series “2 wire Bus” videokit Art. 6488 4.3" hands free colour display digital videophone R01A 191mm 27mm BUS1 BUS2 COLOUR -DOL CONTR +DOL GND A Fig. 1 Front Fig. 2 Back DESCRIPTION LEGEND An intelligent hands free videophone using 4.3” full colour ac- Speech volume control tive matrix LCD monitor for VX2300.
  • Page 24 ESVK/6488 Series “2 wire Bus” videokit Art. 6488 4.3" hands free colour display digital videophone LEDS CONTROLS Speech volume control Privacy on LED (sliding wheel). It illuminates when the privacy service is enabled. Call tone volume control Generic use LED (3 levels). It is controlled from the terminals +DOL and –DOL.
  • Page 25 ESVK/6488 Series “2 wire Bus” videokit Art. 6488 4.3" hands free colour display digital videophone VIDEOPHONE ADDRESS – SW1.1..7 The table below shows how to set the address of the videophone. Considering that ON = 1 and OFF = 0, multiply each digit for the relevant decimal weight then sum values obtained to get the address: E.g.

  • Page 26: Memory Board

    ESVK/6488 Series “2 wire Bus” videokit Art. 6488 4.3" colour display videophone CONNECTION TERMINALS SIGNALS TECHNICAL SPECIFICATION Housing/Mounting: 6400 Series Videophones BUS1 Bus input surface mount BUS2 Bus input Push buttons: Yes, 4 Ground Programming: Yes, carried out by the buttons and +12Vdc power supply input (Art. 323/12 or Art. AMR2- the dip-switches located on the rear 12) for version with Memory Board option or auxiliary...

  • Page 27: Wall Mounting Instructions

    ESVK/6488 Series “2 wire Bus” videokit 6400 Series Wall mounting instructions Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 1. In order to install the videophone, it is necessary to remove the cover, which contains all the electronics, from the base: then rotate clockwise until you listen a “CLICK!”.

  • Page 28: Power Supplies

    ESVK/6488 Series “2 wire Bus” videokit Art. 2321-2321/P Power supplies Art.2321 157,5 Fig. 1 Fig. 2 DESCRIPTION CONNECTION TO MAINS These two power supplies are specifically designed for VX2300 WARNING! digital system. The system must be installed only by a qualified The Art. 2321 can be used for systems with 1 entrance up to 20 users.

  • Page 29: Connection Terminals

    ESVK/6488 Series “2 wire Bus” videokit Art. 2322 Power supply converter from BUS line to 12 Vdc Art.2322 Fig. 1 Fig. 2 DESCRITPION LEGEND When this unit is connected to the BUS line it generates a Connection terminals +12Vdc – 100mA power source. This unit can be used to supply peripherals such as the Art. 4901 or Art. 4902 without the need for an additional power supply.

  • Page 30: Push Button Configuration

    4, 6, 8 or 10 call push buttons. figuration jumpers Name plate holders J2 and J1 jumpers to con- Specific for use in combination with VIDEX IP camera units Right side push button Art.  4533, VX2200 camera units Art.  4284 and VX2300 camera figure illumination LEDs configuration jumpers units Art. 4384.
  • Page 31 ESVK/6488 Series “2 wire Bus” videokit Art. 4042 .. 4045 Single row button expansion modules Art. 4042D .. 4045D Double row button expansion modules POWER SUPPLY To give power supply to the module connect one of the inbuilt IDC male connector to the IDC male connector of the camera unit module through the flat cable provided.
  • Page 32 ESVK/6488 Series “2 wire Bus” videokit Art. 4042 .. 4045 Single row button expansion modules Art. 4042D .. 4045D Double row button expansion modules ADHESIVE GASKET PLACEMENT Apply the seal as shown in Fig. 6. ANTI-TAMPERING LOCKS FIXING Fit the anti-tampering locks as shown in Fig.
  • Page 33 Foglio ESVK-1/6286, ESVK-1S/6286 One Way Videokit 12/06/2020 Titolo: Data modifica: ESVK-1/6286, ESVK-1S/6286 Videokit Monofamiliare 12/06/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 4384-64h-001.dwg...
  • Page 34 Foglio ESVK-2/6488, ESVK-2S/6488 Two Way Videokit 12/06/2020 Titolo: Data modifica: ESVK-2/6488, ESVK-2S/6488 Videokit Bifamiliare 12/06/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 4384-64h-002.dwg...
  • Page 35 Foglio ESVKC-1/6488, ESVKC-1S/6488 One Way Videokit 12/06/2020 Titolo: Data modifica: ESVKC-1/6488, ESVKC-1S/6488 Videokit Monofamiliare 12/06/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 4384-64h-003.dwg...
  • Page 36 Foglio ESVKC-2/6488, ESVKC-2S/6488 Two Way Videokit 12/06/2020 Titolo: Data modifica: ESVKC-2/6488 ESVKC-2S/6488 Videokit Bifamiliare 12/06/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 4384-64h-004.dwg...
  • Page 37 12/06/2020 Titolo: Data modifica: ESVK-1/6488, ESVK-1S/6488 Videokit Monofamiliare con citofono addizionale, relé per l'estensione della suoneria, relé per due servizi addizionali e telecamera esterna 12/06/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File:...
  • Page 38 To next To next Title: Data creazione: Foglio 09/06/2020 Titolo: Data modifica: 09/06/2020 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto (FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 404x.dwg www.videx.it - info@videx.it...
  • Page 39 DISPOSAL In accordance with the Legislative Decree no. 49 of 14 March 2014 “Implementation of the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”. The crossed-out bin symbol on the equipment or on the packaging indicates that when the product reaches the end of its lifetime, it must be collected separately from mixed municipal waste.
  • Page 40 MANUFACTURER VIDEX ELECTRONICS S.P.A. FABBRICANTE Via del Lavoro, 1 FABRICANT 63846 Monte Giberto (FM) Italy FABRICANTE Tel (+39) 0734 631669 FABRIKANT Fax (+39) 0734 632475 ‫الشركة المص ن ِّ عة‬ www.videx.it - info@videx.it CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. UK Customers only: SUPPORTO CLIENTI www.videx.it - technical@videx.it...
