Videx VIDEOKIT ESVK7 Owner's Manual page 10

C+ C-
12Vdc
Additional monitor option
INT FM DATA C1+ C1- C2+ C2- B+ GND
INT FM DATA C1+ C1- C2+ C2- B+ GND
INT FM DATA
REMINDER!
Do not disconnect the mini-connectors from the monitor by pulling the wires but by releasing the
body of the connectors. Carefully observe the power supply polarity. If necessary, do not forget to
modify the position of dip-switches on the back of the main monitor and to check their good posi-
tions on the additional monitor. Any modifications of the position of the dip-switches on the back of
the main monitor and on the back of the additional monitor must be validated by the disconnection,
during 30 seconds, of the adapter.
UK-10
ESVK7_IT_ENG_FR_ES.indd 10

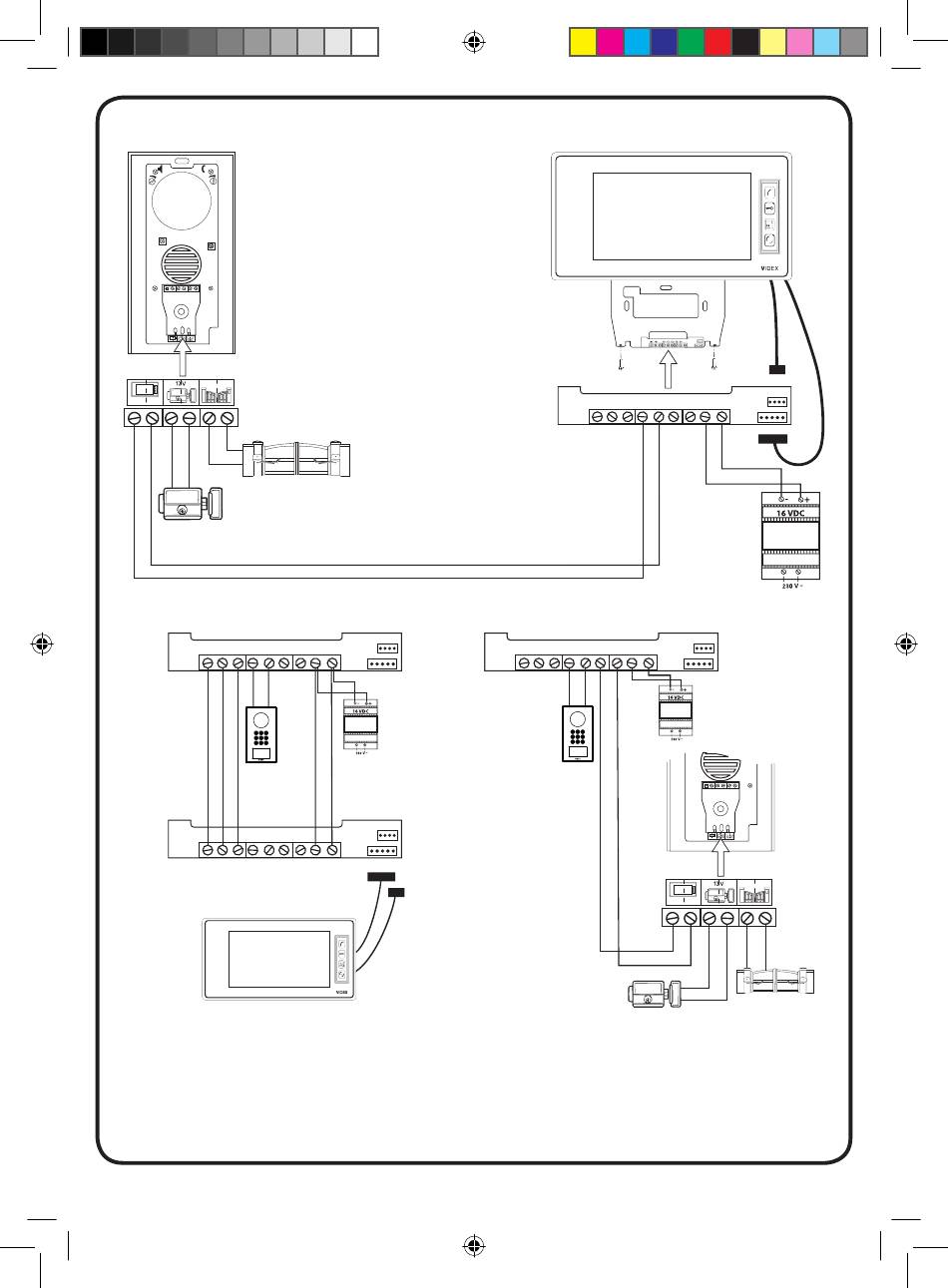

STANDARD KIT CONNECTIONS
