MONITOR
Remove the 2 screws (3) at the base on the monitor this will allow the wall bracket to be
removed, carefully disconnect the 2 mini connectors from the wall bracket. These must be
replaced before re assembling the monitor.
IMPORTANT !
Do not allow the monitor to hang from the wires.
Do not disconnect the mini-connectors by pulling the wires, release the body of the
connectors.

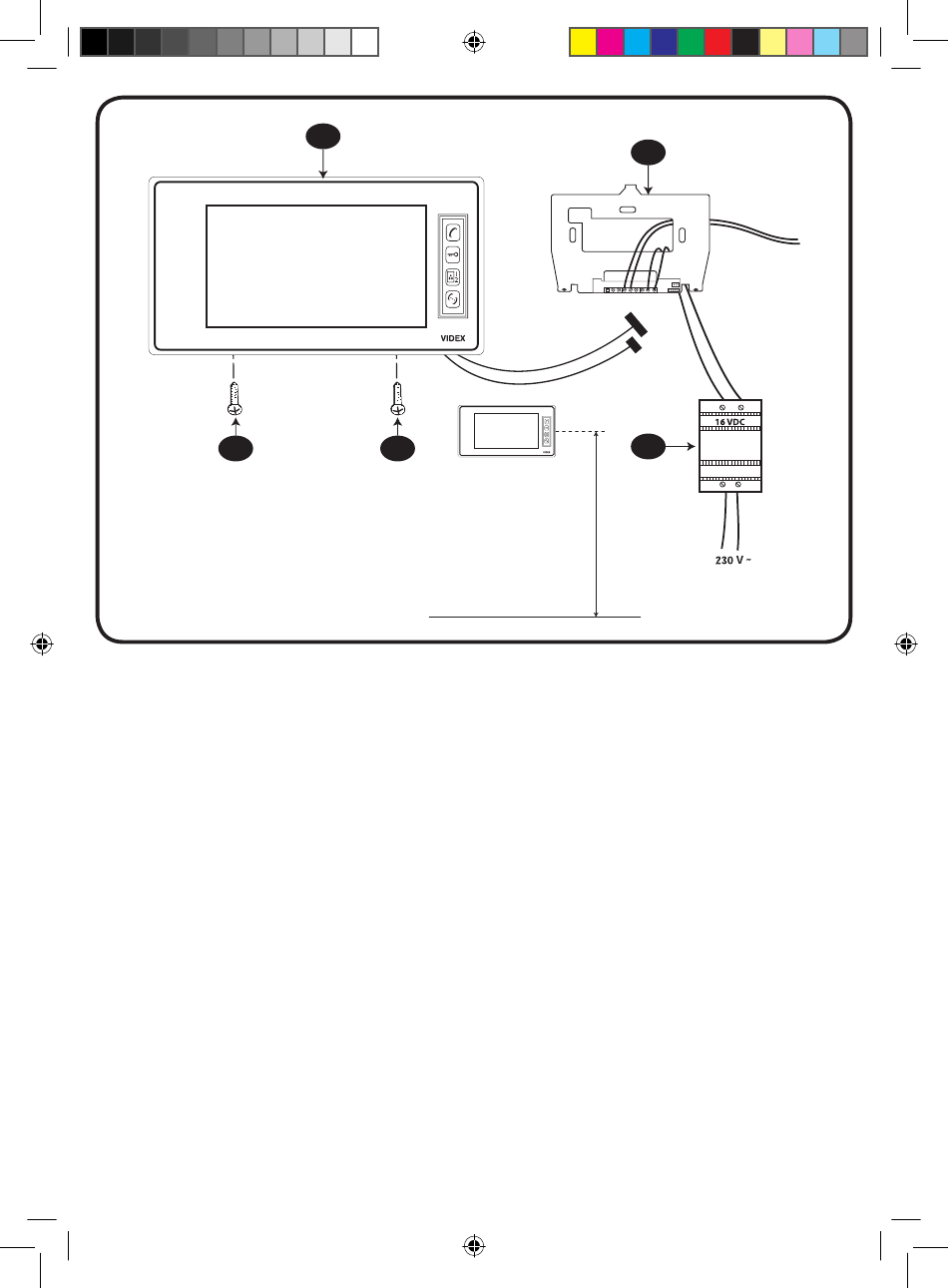

1. Fit the wall bracket and termination block (2) in the position required.
2. Connect the 2 wires from the door panel and the 2 wires from the power supply (note
power supply polarity of wires) as shown in the diagram.
3. Replace the 2 mini connectors from the monitor to the wall bracket.
4. Re fit the monitor (1) onto the wall bracket (2) and secure with the 2 screws (3)
5. Only after the door panel and video monitor have been connected should the power
supply (4) be connected to the fused mains (230Vac) outlet.
ESVK7
ESVK7_IT_ENG_FR_ES.indd 7
1
3
2
INT FM DATA C1+ C1- C2+ C2- B+ GND
- +
4
1,60 m
