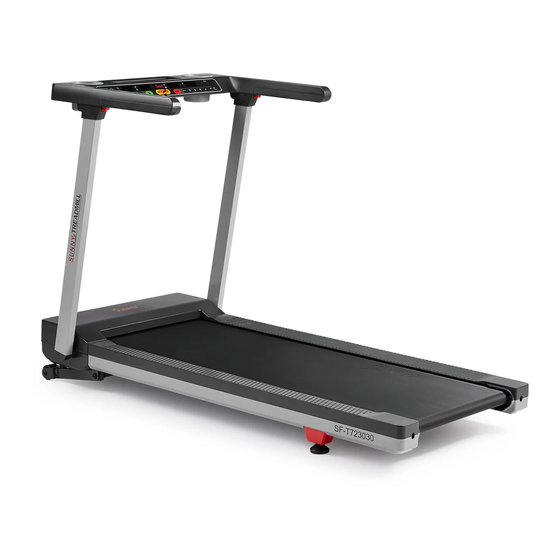

FOLDABLE AUTO INCLINE
TREADMILL WITH 20'' RUNNING BELT
& BRUSHLESS MOTOR
SF-T723030
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-T723030
Summary of Contents for Sunny Health & Fitness SF-T723030
- Page 1 FOLDABLE AUTO INCLINE TREADMILL WITH 20'' RUNNING BELT & BRUSHLESS MOTOR SF-T723030 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER To reduce the risk of electric shock and the injury from moving parts: – Always unplug this appliance from the electrical outlet immediately after using and before cleaning or serving. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 4: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Frame Assembly Bottle Holder Safety Key Allen wrench 6mm*80mml*130mml Lubricant Oil Thank You Card Manual Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: We recommend having two people to remove the product from the carton. Open the carton and take out the contents.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: Insert the Bottle Holders (No. 84) into the place. Tighten the Bottle Holders (No. 84) clockwise. Open the Tablet Holder 1(No.
-
Page 7: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and improve the performance of your treadmill. Keep the treadmill clean and maintained by dusting the components on a regular basis. Cleaning the two exposed sides both sides of the Running Belt (No. 28) will prevent dust from accumulating underneath. -
Page 8: Lubricating The Treadmill
LUBRICATING THE TREADMILL *IMPORTANT NOTE: This treadmill does come pre-lubricated, but it is recommended to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. 29) and Running Belt (No. 28) is essential as the friction affects the life span and operation of the treadmill. -
Page 9: Folding Instructions
FOLDING INSTRUCTIONS FOLDING STEP 1: Set the incline to flat (Incline Level 0) and turn off the power. STEP 2: Press both triggers on each side of “A,” then lift the handlebar fully upward to unlock the upright frames. Step 3: Hold the handlebar and laydown the upright frames. -
Page 10: How To Move The Treadmill
UNFOLDING: STEP 1: Lift the handlebar and upright frames fully upward. A STEP 2: Then, pull down the handlebar until the pin locks. Note: Be careful not to pinch your fingers when pulling down the handlebar and locking it. Also, ensure the tension cable that connects handlebar and upright frames doesn’t get jammed. -
Page 11: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 15 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 12: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult with your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 13: The Display Console
THE DISPLAY CONSOLE BLUETOOTH 1. The Bluetooth icon will flash when the console is on or wakes from power saving mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2. The Bluetooth icon will stay on when it is connected. WIRELESS HEART RATE 1. - Page 14 5. MODE: In standby mode to switch 3 count-down mode: time countdown, distance countdown, calories countdown. 6. PROGRAM: Press to choose Program. 7. USER: Press to choose User 1 or User 2 or User 3. 8. SPEED SHORTCUT KEYS: Press to select 3/6/9 MPH when the treadmill is running. 9.
-
Page 15: Setup Program
SET UP PROGRAM: (Speed is in MPH) Press "P"（program） key to select a mode from P01 to P24, and use the SPEED+ / -or INCLINE + / - key to set the time (time range: 1:00 ~ 99:00, default: 30: 00), press the START key to execute the program, the treadmill moves according to the fixed program preset value, the Time changes once every interval (Time/10) *60 seconds, the speed can be adjusted through the SPEED+ / SPEED- keys, shortcut keys, the INCLINE can also be adjusted through the INCLINE +./ INCLINE- or incline shortcut keys.but the program default value is... - Page 16 USER MODE 1. In standby mode, press USER key to enter USER mode. 2. Press USER key to choose U1 U2 or U3. Press ENTER key to confirm. 3. Press UP/DOWN keys to set time value. Press ENTER key to confirm. 4.
-
Page 17: Troubleshooting
TROUBLE SHOOTING Error code Explanation Trouble shooting Safety key Please check whether the safety key is well connected or drop off not. Communication Please check whether the signal connecting wire are in fault. good condition or well connected. 1. Please keep the treadmill running and check whether Overcurrent the motor is blocking. -
Page 18: Exploded Diagram
EXPLODED DIAGRAM 17 ... -
Page 19: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Incline Frame Column Lower Cover Transportation Wheel Column Outer Cover Left Screw M8*P1.25*45L*S15 Column Inner Cover Left Sleeve Φ25*Φ15*5.8 Column Inner Cover Right Screw M8*P1.25*42L*S12 Column Outer Cover Right M8*P1.25*7T Handle Bar Folding Switch Main Frame Isolate Pad Umbrella Head Cross Self-... - Page 20 19 ...
Need help?
Do you have a question about the SF-T723030 and is the answer not in the manual?
Questions and answers
How can I use my treadmill without using one of the programed workouts? I find it very inconvenient when it changes speed or incline on me every few minutes
To use the Sunny Health & Fitness SF-T723030 treadmill without using the programmed workouts:
1. Turn on the power switch.
2. Stand on the side rails and hold the handlebars.
3. Attach the clip end of the Safety Key to your clothes and insert the magnetic end into the console.
4. Press the START key to begin. The treadmill will start at 0.6 MPH.
5. Manually adjust the speed using the SPEED+ or SPEED– keys as needed.
6. When finished, press the STOP key to stop the treadmill.
This answer is automatically generated
