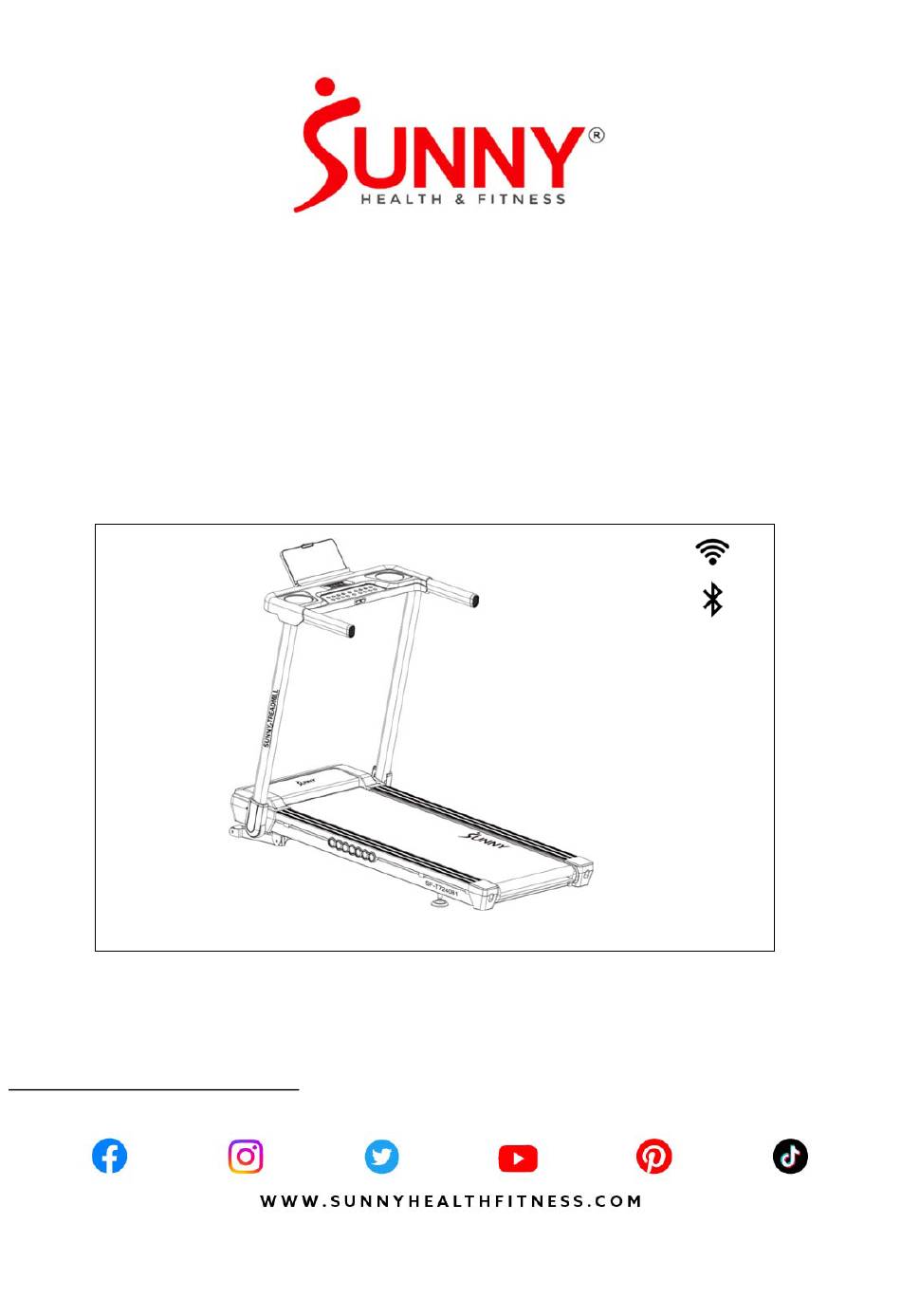

PACE 500 SMART
AUTO INCLINE TREADMILL
SF-T724081
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness PACE 500 SMART
Summary of Contents for Sunny Health & Fitness PACE 500 SMART
- Page 1 PACE 500 SMART AUTO INCLINE TREADMILL SF-T724081 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER –To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. - Page 3 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s) and Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause interference.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 5: Important Note
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 6: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. HARDWARE PACKAGE... - Page 7 ASSEMBLY INSTRUCTIONS...
- Page 8 Do not tighten all the bolts here.
- Page 9 Tighten all the bolts after assembling console part.
-
Page 11: How To Move The Machine
HOW TO MOVE THE MACHINE... - Page 12 HOW TO ADJUST THE BALANCE If the machine is uneven, you need to adjust the Adjustable Knob（No. C19）to level the machine on the ground. Adjustment method: First, place the machine as shown above, use Cross Wrench (No. B04), and adjust the Adjustable Knob（No. C19）clockwise to raise the footpad, and counter-clockwise to lower the footpad.
-
Page 13: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board and Running Belt is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt and Running Board regularly. If you find any wear on the Running Board, please contact us at: support@sunnyhealthfitness.com. -
Page 14: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and improve performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning two exposed sides of the Running Belt will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board and Running Belt. -
Page 15: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 16: The Display Console
THE DISPLAY CONSOLE QUICK START: 1. Insert the pin end of the Safety Key into the holes on the Console. 2. Press the START button, and the system will automatically display a 3 seconds countdown. Once the countdown reaches zero, the Running Belt will start at the initial default speed of 1.0 MPH. 3. - Page 17 PROGRAMS Initial Default Value Set Range Display Range 0:00－99:59 TIME (MIN: SECOND) 0:00 15:00 5:00-99:00 SPEED (MPH) 1.0-10.0MPH 1.0-10.0MPH INCLINE 0-12 0-12 DISTANCE (MILE) 0.00 1.00 0.5-99.90 0.00-99.99 STEP 0-99999 0.0－9999.9 CALORIE (KCAL) 50.0 10.0-999.0 CONSOLE FUNCTION KEYS: PROGRAM: Press the “P” button to set your desired interval setting. Programs are displayed as P1- P2---P12.
- Page 18 LUBRICATION REMINDER: Your treadmill needs lubrication maintenance every 188 Miles. The system will release a beeping sound every 10 seconds and display an “OIL” icon on your display to remind you when it’s time. Please read the LUBRICATING THE TREADMILL to learn the proper steps to lubricate your treadmill. Apply the lubricant to the middle of the Running Board on both sides.
-
Page 19: Technical Data
BLUETOOTH 1. The Bluetooth icon will flash when the console is on or wakes from power saving mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2. The Bluetooth icon will stay on when it is connected. WIRELESS HEART RATE 1. -
Page 20: App Connection
TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key from the Console while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the console will show “------” and the speaker will beep 3 times. To start the treadmill again, insert the pin end of the Safety Key into the Console and press the START button. -
Page 21: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 22: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key is not inserted. Insert Safety Key. Running belt tension is not Tighten the left and right adjusting Running belt not centered correct on the left or right sides bolts of the rear roller. -
Page 23: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 24 EXPLODED DIAGRAM 2...
-
Page 25: Parts List
PARTS LIST Description Specification Qty. Description Specification Qty. Incline Frame Locking Washer Main Frame Left Upright Tube Screw ST4.2*12 Right Upright Tube Bolt M10*65 Console Base Bracket Bolt M10*45 Brushless Motor Pressure Plate Bolt M10*55 Device Support Plate Bolt M8*55 Front Roller Bolt M8*48... - Page 26 Description Specification Qty. Description Specification Qty. AC Single Line Blue 200mm Screw ST2.9*6.0 AC Single Line Filter Brown 350mm AC Single Line Blue 350mm AC Single Line Brown 350mm Grounding Wire 350mm AC Single Line Blue 350mm USB Module Grounding Wire USB Charging Wire Screw ST4.2*12...
