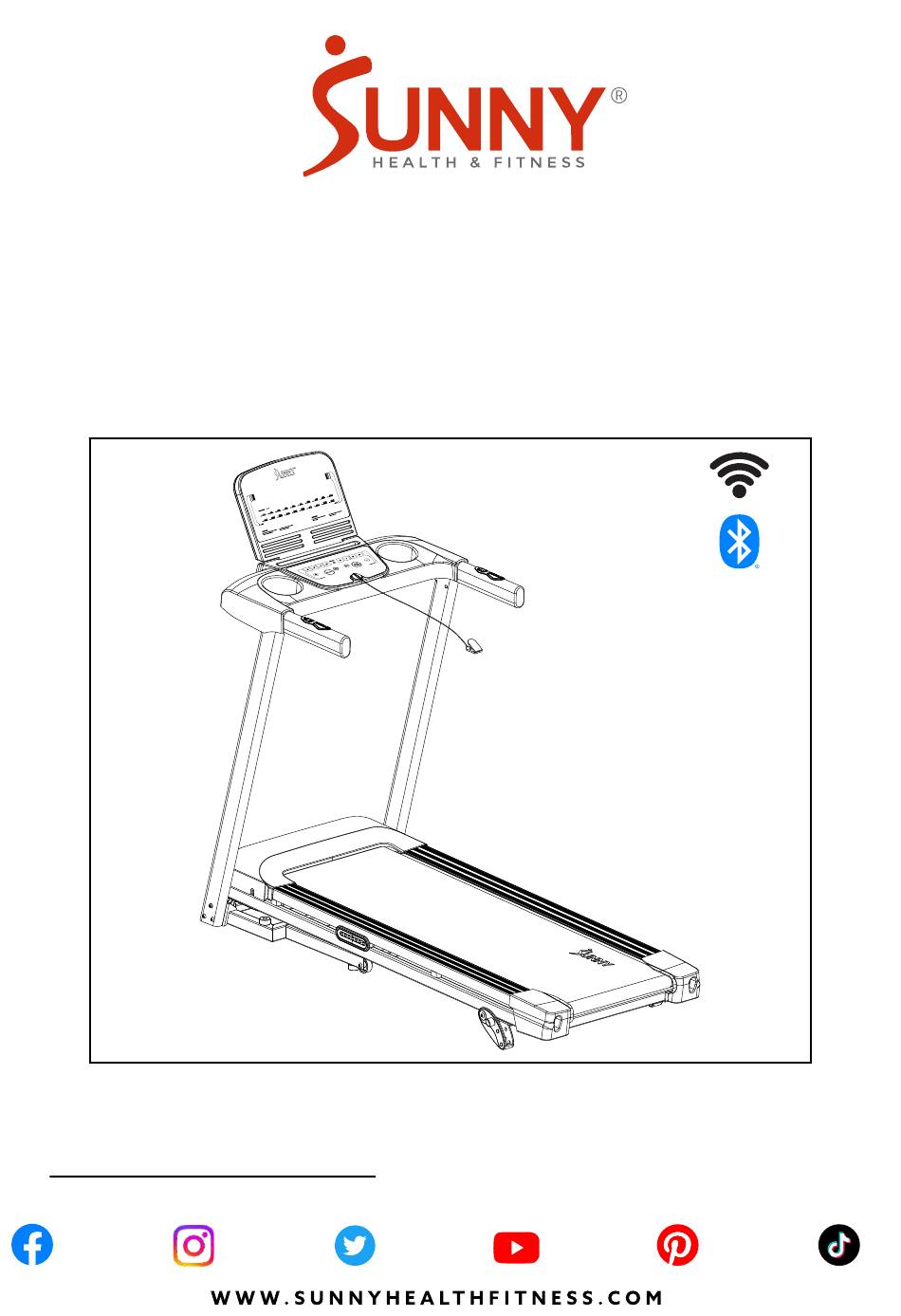

ACTIVE 300 SMART INCLINE
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
TREADMILL
SF-T724011
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVE 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny Health & Fitness ACTIVE 300

  • Page 1 ACTIVE 300 SMART INCLINE TREADMILL SF-T724011 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER – To reduce the risk of electric shock and the injury from moving parts: Always unplug this appliance from the electrical outlet immediately after using and before cleaning or servicing.
  • Page 4: Warning Labels

    WARNING LABELS...
  • Page 5: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST WHEN YOU OPEN THE CARTON, YOU WILL FIND THE FOLLOWING PARTS: ACTIVE 300 SMART INCLINE TREADMILL SF-T724011 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED...
  • Page 6 #F2 S5 1PC #D15 M8*40 4PCS #D7 D8 4PCS...
  • Page 7 #F2 S5 1PC #D18 M8*15 2PCS #D7 D8 4PCS...
  • Page 9  N OTE: LIGHTLY press in the center of the Cylinder and help down the running deck!
  • Page 12: Lubricating The Treadmill

    LUBRICATING THE TREADMILL You will need to lubricate your treadmill before the first use! Lubricating the Running Belt (No. B6) and Running Board (No. B5) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. B6) regularly. If you find any wear on the Running Board (No.
  • Page 13: Maintenance Instruction

    MAINTENANCE INSTRUCTION General cleaning will help to prolong the life and improve the performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning the two exposed sides of the Running Belt (No. B6) will prevent dust from accumulating underneath. Keep your running shoes clean so no dirt will stay on the Running Board (No.
  • Page 14: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION IMPORTANT NOTE: This treadmill requires a power source of 120 Volts in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the equipment.
  • Page 15: The Display Console

    THE DISPLAY CONSOLE DISPLAY 1. PROGRAM: In addition to manual mode, there are 20 preset programs (P1-P20), 3 personalized user programs (U1-U3) and FAT program. 2. SPEED: The speed range is 1- 9 MPH (1-14 KM/H). The initial default speed is 1 MPH (1 KM/H).
  • Page 16 UNIT CONVERTIONS FROM IMPERIAL TO METRIC SYSTEM First, remove the Safety Key (No. C19) from Console Assembly (No. G3) then press “PROG” and “MODE” buttons together for 5 seconds. The display will show “9” or “14”. It’s in Imperial System when “9” is displayed. It’s in Metric System when “14” is displayed. NOTE: If treadmill is converted to Metric System, speed and distance will be measured in Kilometers and Kilometers/Hour.
  • Page 17 PROGRAMS Press the “PROG” button to select P1, P2, ……P19, P20. Press the “SPEED +/-” buttons to set the exercise time, then press “START” button to start your exercise. When the exercise is finished, the treadmill will display “End” and stop automatically. Each program is divided into 16 exercise segments in an equal time division.
  • Page 18 Program in Metric System (Kilometers/ Hour) SET TIME/16 TIME PROGRAM SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED...
  • Page 19 USER PROGRAMS (U1-U3): User program is made up of 16 segments. You are allowed to personalize each segment of your exercise by programming each individual segment’s time duration, desired speed, and incline. 1. Press the “PROG” button to select U1, U2, or U3. Press the “SPEED +/-” buttons to set the exercise time.
  • Page 20 WIFI 1. If the access point is not configured or fails to be configured, the WIFI indicator light will turn off. 2. After configuring the access point, the WIFI indicator light will flash during the connection to the server. 3. The WIFI indicator light will stay on when the server is successfully connected. NOTE: 1.
  • Page 21: Exercise Instructions

    EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise programs, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
  • Page 22: Troubleshooting

    TROUBLESHOOTING Code Description Possible Reasons How to Troubleshoot The safety key is not inserted Insert the safety key properly. Safety key correctly. Replace the safety key sensor or safety key. ----- fault. Safety key sensor or safety If there’s still a problem, replace the top key is damaged.
  • Page 23: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Bolt M8*50 Left Support Tube Bolt M10*25 Right Support Tube Bolt M8*15 Base Frame Bolt M8*55 Console Bracket Bolt M8*45 Motor Fixed Board (A) Bolt M8*40 Motor Fixed Board (B) Bolt M8*35 Motor...
  • Page 24: Exploded Diagram

    EXPLODED DIAGRAM Version: 1.0...
