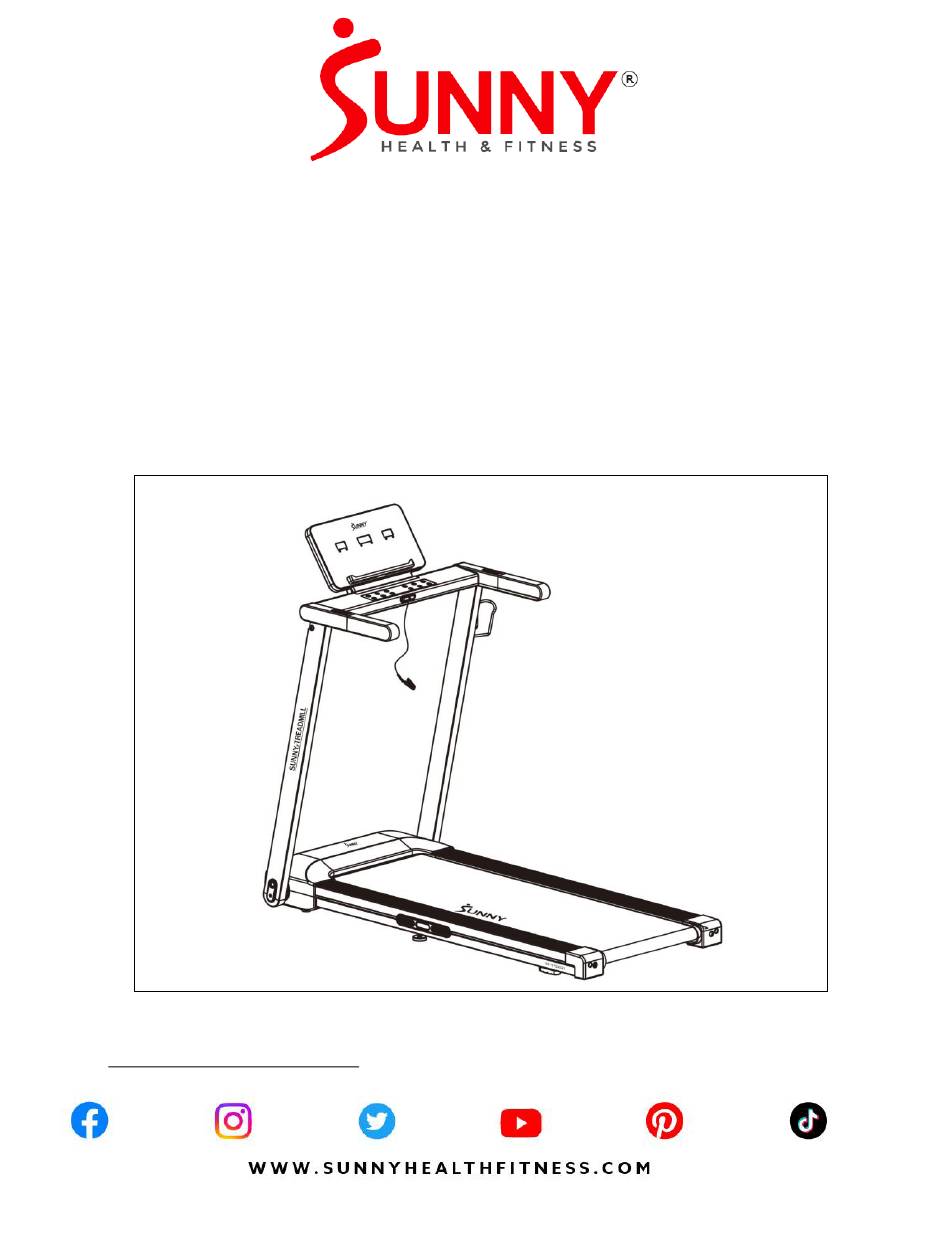

INTERACTIVE SLIM TREADMILL WITH
BLUETOOTH
SF-T722021
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your satisfaction
is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-T722021
Summary of Contents for Sunny Health & Fitness SF-T722021
- Page 1 INTERACTIVE SLIM TREADMILL WITH BLUETOOTH SF-T722021 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER –To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING To reduce the risk of burns, fire, electric shock, or injury to persons: –... -
Page 3: Important Safety Information
CAUTION: To avoid Injury, use extreme caution when stepping onto or off the running belt. Read the instruction manual before using. IC CAUTION: This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. -
Page 4: Important Note
been rectified. 7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment. 8. Do not place fingers or objects into the moving parts of the equipment. 9. The maximum weight capacity of this unit is 265 lbs (120 kgs). 10. -
Page 5: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Treadmill Safety Key Power Wire Bottle Holder Lubricant Oil Manual Thank You Card Hardware Package... -
Page 6: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓... - Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: Open the carton and remove contents. Place the Main Frame (No. A) on level ground, ensure that you have a work area that is clean and has adequate space.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 3: Support the Left & Right Upright Tubes (No. A07 & No. A08) with your hands to prevent them from falling.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 5: Adjust the Panel Top Cover (No. C03) to the angle you feel comfortable. Attach the Bottle Holder (No.
-
Page 10: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Board (No. D11) and Running Belt (No. C17) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. C17) and Running Board (No. -
Page 11: How To Move The Machine
HOW TO MOVE THE MACHINE Please always remove the power cord from the Treadmill (No. A) before moving the treadmill. Hold the Treadmill (No. A) at position “E” with your hand. Lift up the Treadmill (No. A) until the Transportation Wheels (No. C20) touch the ground. With the Transportation Wheels (No. - Page 12 HOW TO ADJUST THE BALANCE If the machine is unbalanced, you can adjust the Adjustable Pads (No. C10) to level the machine on the ground. Adjustment method: First, loosen the Nut (No. E04) by turning it counter-clockwise using Spanner w/ Screw Driver (No. B10), then adjust the Adjustable Pad (No. C10) by turning it clockwise to raise, and counter-clockwise to lower.
-
Page 13: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and improve performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning two exposed sides of the Running Belt (No. C17) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No. -
Page 14: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 15: The Display Console
THE DISPLAY CONSOLE QUICK START: 1. Insert the pin end of the Safety Key (No. C24) into the Console (No. D01). 2. Press the START button, and the system will automatically display a 3 seconds countdown. Once the countdown reaches zero, the Running Belt (No. C17) will start at the initial default speed of 0.6 MPH. -
Page 16: Window Display
WINDOW DISPLAY: SPEED/ PULSE: The speed range is 0.6-9 MPH. 0.6MPH is the default running speed. When the runner holds both hands on the pulse sensors (located on the handles), the system will calculate the runner’s heartbeat and display it in this window. The pulse range is 50-200 beats/min. NOTE: This data is just for reference and cannot be used for medical purposes. - Page 17 Pressing and holding either of these buttons for a duration of over ½ of a second will increase or decrease the speed continually. 3, 4, ... & 8 (QUICK SPEED BUTTONS): These buttons are preset to 3, 4, ... or 8 MPH speeds for convenience.
-
Page 18: Self-Define Program
SELF-DEFINE PROGRAM Besides 15 inner installed programs, there are 3 user self-define programs: U1, U2, U3 1.User self-define program setting: In the initial situation, press “PROG” continually till U1, U2, U3, and the “time” window glitter, show the time 10:00, press “speed+”, “speed-” to set the running time; press “MODE” to set program data, set the first interval time, press “speed+”, “speed-”... - Page 19 TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. C24) from the Console (No. D01) while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the console will show “- - -”...
-
Page 20: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key is not inserted. Insert Safety Key. Running belt tension is not Tighten the left and right Running belt not centered correct on the left or right adjusting bolts of the rear roller. - Page 22 Check motor wires to see if the motor is connected. If the wire The motor wire is not has been punctured or E06/E07: Motor Abnormality connected, or the motor is damaged, you will need to damaged. replace it. If the problem is not rectified, you may need to replace the motor.
-
Page 23: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 24 EXPLODED DIAGRAM 2...
-
Page 25: Parts List
PARTS LIST Description Specification Qty. Description Specification Qty. Left Side Tube Assembly Decorative Cushion Right Side Tube Assembly Running Belt Front Tube Frame Side Rail Motor Bracket Motor Belt Computer Bracket Transportation Wheel Pannel Fixed Bracket Rubber Cushion Left Upright Tube Tapered Cushion Right Upright Tube Front Mat... - Page 26 Description Specification Qty. Description Specification Qty. Screw ST2.9*8 Screw ST2.0*6 Bolt M10*80 Flat Washer Φ10 M10*40 Flat Washer Φ8 Bolt M8*32 L15 Flat Washer Φ6 Bolt M8*50 Big Flat Washer Φ5*Φ13*1.0 Bolt M8*15 Washer Φ6 Flat Washer Φ6*Φ18*1.5 Washer Φ5 Bolt M6*55 Spring Washer...
