Summary of Contents for Sunny Health & Fitness SF-T723016
Page 1

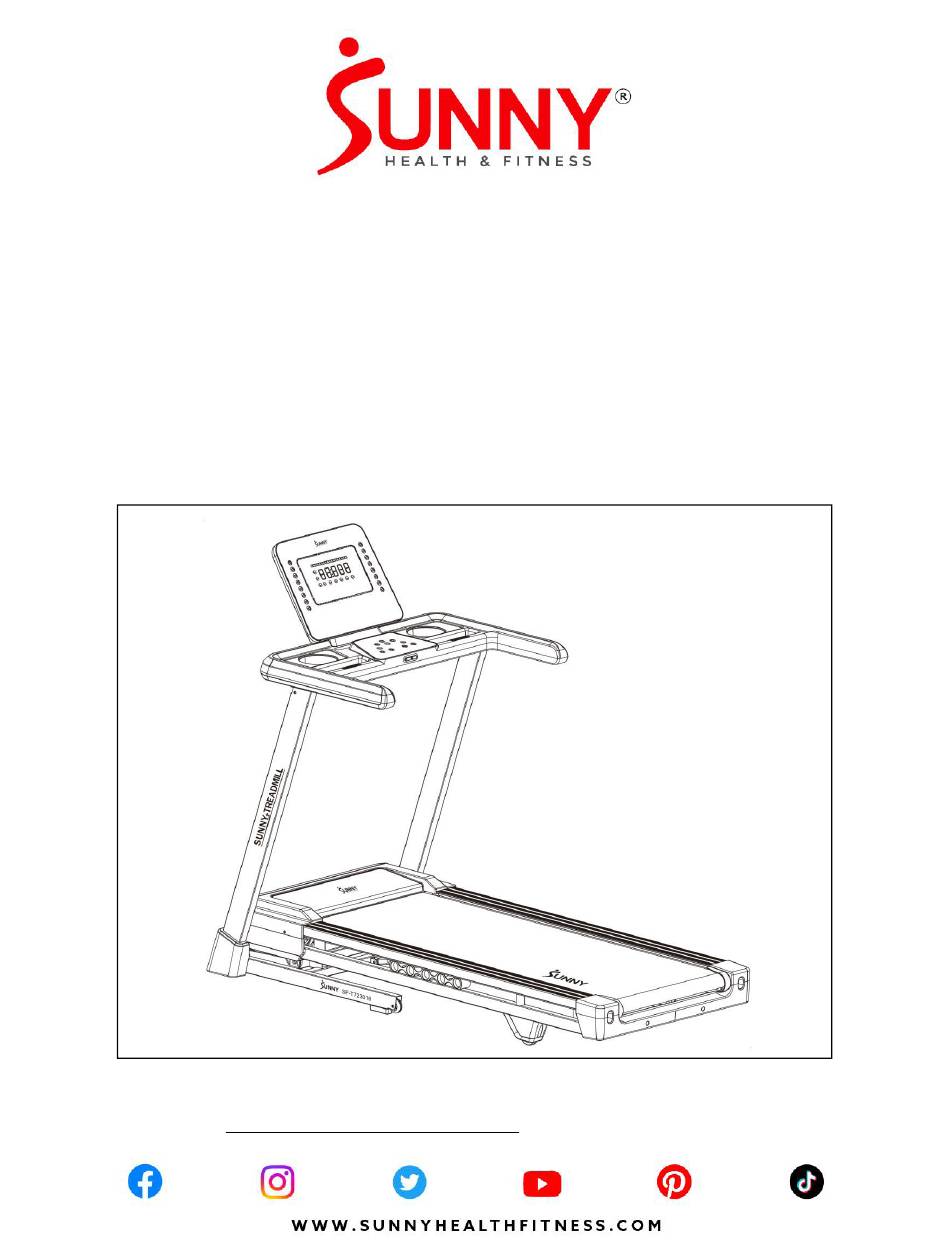

ELITE SMART AUTO INCLINE 20" DECK TREADMILL WITH 300LB WEIGHT CAPACITY SF-T723016 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER –To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
Page 3
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s) and Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause interference.
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the treadmill. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4.
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Main Frame Panel Connecting Bracket Console Assembly Left Upright Tube Cover Right Upright Tube Cover Safety Key Power Wire Lubricant Oil Hardware Package Manual Thank You Card...
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ...
Page 8
ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Note: We recommend having two people to do the assembly. Open the carton, take out the contents, and place the Treadmill (No.
Page 9
We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Lift the Left & Right Upright Tubes (No. A06 & No. A07) (in the direction shown on the diagram) to the left.
Page 10
We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Tighten the Panel Connecting Bracket (No. B) to the Left & Right Upright Tubes (No.
Page 11
We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7: Connect the wire ports of Console Assembly (No. C) to the wire ports of Panel Connecting Bracket (No.
Page 12
We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 9: Insert the pin end of Safety Key (No. C17) into the Console Top Cover (No. C06). The assembly is complete! IMPORTANT NOTE! You will need to lubricate...
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. E31) and Running Belt (No. C26) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. C26) and Running Board (No.
Page 14
HOW TO FOLD THE MACHINE FOLDING: NOTE: Please make sure the incline is at ZERO when folding and unfolding. Place your hand at position “H” and lift the Main Frame (No. A01) until the Air Cylinder (No. B03) “G” locks into the tube.
HOW TO MOVE THE MACHINE Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “H” to support the top end of the treadmill. Next, place one foot at position “K”...
Page 16
HOW TO ADJUST THE BALANCE Adjustment method: Place the machine on ground, rotate Adjustable Foot Pad (No. C24) to raise or lower the footpad until the machine is level.
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. C13) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear the Running Board (No.
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 12 amps (100-120 V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user.
THE DISPLAY CONSOLE QUICK START: 1. Insert the pin end of the Safety Key (No. C17) into the holes on the Console Top Cover (No. C06). 2. Press the START button and the system will automatically display a 3-second countdown. Once the countdown reaches zero, the Running Belt (No.
WINDOW DISPLAY: DISTANCE: Displays the distance traveled (0.0-99.99 MILES). When the distance reaches 99.99 MILES, it will reset to 0.00 and begin counting again from 0.0. When in Countdown Mode, it will count down from the set distance to 0.00. When it reaches 0.00, the treadmill will stop smoothly and display “End”...
Page 21
PAUSE your workout and the current workout data will still be shown. Press this button again to STOP your workout session and all data will be reset to the initial setting. In the STOP state, press and hold this button for 6 seconds to disconnect the heart rate monitor. To reconnect the heart rate monitor, press and hold this button for 6 seconds again.
Page 23
TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. C17) from the Console Top Cover (No. C06) while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the console will show “- - -”...
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals.
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key is not inserted. Insert Safety Key. Running belt tension is not Tighten the left and right Running belt not centered correct on the left or right sides adjusting bolts of the rear roller.
Page 26
Restart the treadmill. Check the The incoming voltage is too low incoming voltage to ensure it is or too high. The control board is correct. Check the control board, damaged. replace if damaged. E05: Current overload protection (Self Protecting Inspect moving parts of the System) treadmill to ensure that they are A moving part of the treadmill is...
PARTS LIST Description Specification Qty. Description Specification Qty. Main Frame Ring Protective Plug Base Assembly Adjustable Foot Pad Incline Assembly Motor Belt Console Base Bracket Running Belt Panel Fixed Bracket EVA Pad 10*1.0*1100 Left Upright Tube EVA Pad 80*64*3.0 Right Upright Tube EVA Pad 50*20*2.0 Front Roller...
Page 30
Description Specification Qty. Description Specification Qty. Locking Washer Φ8 Right Button Board Connecting Wire Locking Washer Φ5 Power Socket Spring Washer Φ5 Power Wire 2050mm Spring Washer Φ8 Square Switch Flat Washer Φ8 Magnetic Ring Big Washer Φ10 Magnetic Core Bolt M8*45 L20 Grounding Wire...
