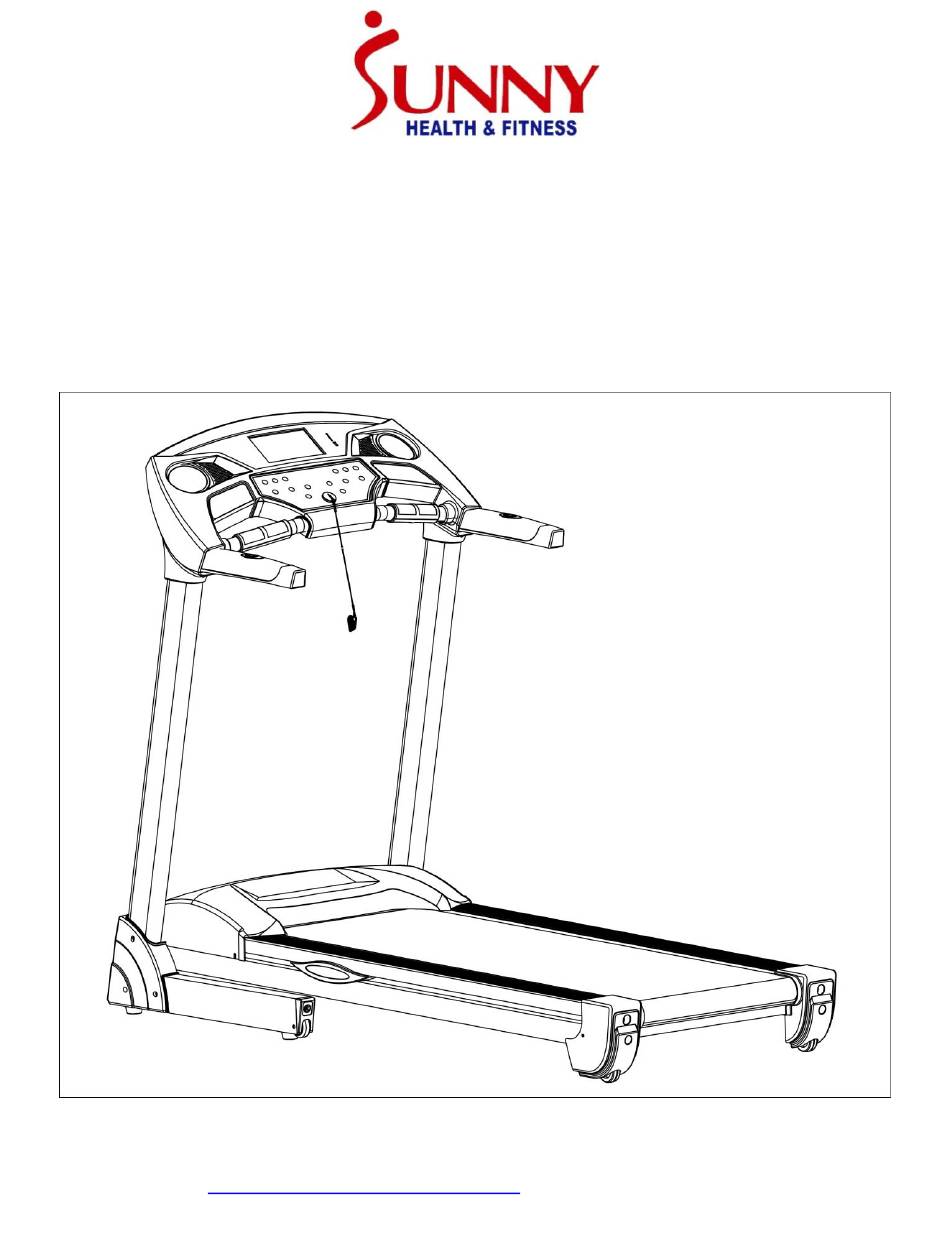

PERFORMANCE TREADMILL WITH
AUTO INCLINE
SF-T7874
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US:
support@sunnyhealthfitness.com
or 1 - 877 - 90SUNNY (877-907-8669).
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-T7874 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny Health & Fitness SF-T7874

  • Page 1 PERFORMANCE TREADMILL WITH AUTO INCLINE SF-T7874 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1 - 877 - 90SUNNY (877-907-8669).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
  • Page 3 EXPLODED DIAGRAM...
  • Page 4 PARTS LIST PARTS LIST Description Specification Qty. Description Specification Qty. Main Frame Bolt M8*50 Left Upright Tube Right Upright Tube Transport Wheel Base Frame Transport Wheel Plug Running Belt Flat Pad Running Board Screw M6*15 Bolt M6*30 Square Plug Bolt M6*25 Bolt M10*50...
  • Page 5 Bolt M5*16 MP3 Connecting Wire Plastic Pad Loudspeaker Filter Loudspeaker Platen Allen Wrench Audio Jack Pulse Bottom Cover Spanner S=13,14,15 HARDWARE PACKAGE # 18 Φ8*1.2 12PCS # 55 M8*15 12PCS # 90 S=5 1PC # 96 S=13,14,15 1PC # 9 ST4*16 2PCS Ordering Replacement Parts (U.S.
  • Page 6: Main Frame (

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: We recommend having two people to do the assembly. Open the carton and remove contents. Place the Main Frame (No.
  • Page 7: Right Upright Tube 1

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Insert the 2 Screws (No. 9) marked in circles to the Console Bracket (No. 60) and tighten with Spanner (No.
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Put the Safety Key (No. 62) on the E slot of Console Button Board (No. 71). The assembly is complete! IMPORTANT NOTE! You will need to lubricate...
  • Page 9: Running Belt 1

    MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. 5) to prevent dust from accumulating underneath the Running Belt (No. 5). Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No.
  • Page 10: Running Board 1

    LUBRICATING THE TREADMILL *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. Lubricating the Running Board (No. 6) and Running Belt (No. 5) is essential as the friction between the two affects the life span and function of the treadmill. Inspect the Running Board (No. 6) and Running Belt (No.
  • Page 11: Folding Instructions

    FOLDING INSTRUCTIONS FOLDING Turn off the power before folding. Restore the incline to flat position (Incline Level 0). Place your hand at position “A” and lift up on the Main Frame (No. 1) to push top of the running board forward until Cylinder (No.
  • Page 12 HOW TO MOVE THE MACHINE Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. Next, place one foot at position “M”...
  • Page 13: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.
  • Page 14: Side Rail

    EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals.
  • Page 15: The Display Console

    THE DISPLAY CONSOLE DISPLAYS DISPLAY WINDOW DESCRIPTION Displays the speed (0.6-11.0 mph / 1.0 – 18.0 kmh) Speed Alternates display of heart rate (50-200 bpm) Time/Heart Rate And time (0:00-99:59 minutes) Alternates display of distance (0.00-99.99 mi or km), calorie (0.0 – 999.9 Distance/Calorie/Incline kcal), and incline (0-15) FUNCTION KEYS...
  • Page 16 Initial Initial setting value Setting range Display range Time (m: s) 0:00 30:00 5:00-99:00 0:00-99:59 Speed in metric system (km/h) 1.0—18.0KMH Speed in imperial system 0.6-11.0MPH (mi/h) Incline (%) 0-15 Distance (km/mi) 1.00 0.00—99.9 0.00—99.99 Calorie (kcal) 50.0 0.0—999 0.0—999.9 KILOMETERS OR MILES When the safety key is removed, press PROGRAM and MODE for 3 seconds to change from miles to kilometers.
  • Page 17 OPERATION IN MANUAL MODE A. Press START and the treadmill will start operating after 3 seconds of countdown. The initial speed is 1.0 km/h for metric system or 0.6mile/h for imperial system. B. Press SPEED + / SPEED - to adjust speed, or press speed shortcuts to change to the speed marked on the key;...
  • Page 18 PROGRAM PARAMETERS Time Set time/ 20 =running time for each section Section Program Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline Speed Incline CUSTOMIZED PROGRAM In addition to 14 built-in programs, the treadmill also has 3 customized programs to support the...
  • Page 19 for the second time section until the completion of setting for all the 20 time sections. Set parameters will be permanently saved until the next time setting. These parameters will not be lost until power disconnection. 2. Start of customized program: A.
  • Page 20 ENERGY-SAVING MODE The treadmill has energy-saving function. In standby state, after 10 minutes and no key has been pressed, console will enter the energy-saving mode and automatically turns off the display. Press any key to turn on the console. SHUTDOWN Turn off the treadmill when not in use to avoid damage to the treadmill.
  • Page 21: Trouble Shooting

    TROUBLE SHOOTING PROBLEM POTENTIAL REASONS SOLUTIONS 1.Place back the safety key; 2.Replace safety key switch or magnetic sensor in the ------- Safety key is disconnected electronic meter; if the problem still fails to be solved, replace the electronic meter; ERROR POSSIBLE REASONS TEST METHOD SOLUTIONS...
  • Page 22: Control Board 1

    Failure controller 24C02 is broken down or you forgot to install 24C02, change EEPROM. the motor control board. Place machine on a level Machine is not placed on level Controller is in tilted position. surface, then start the surface when it is powered on machine.
