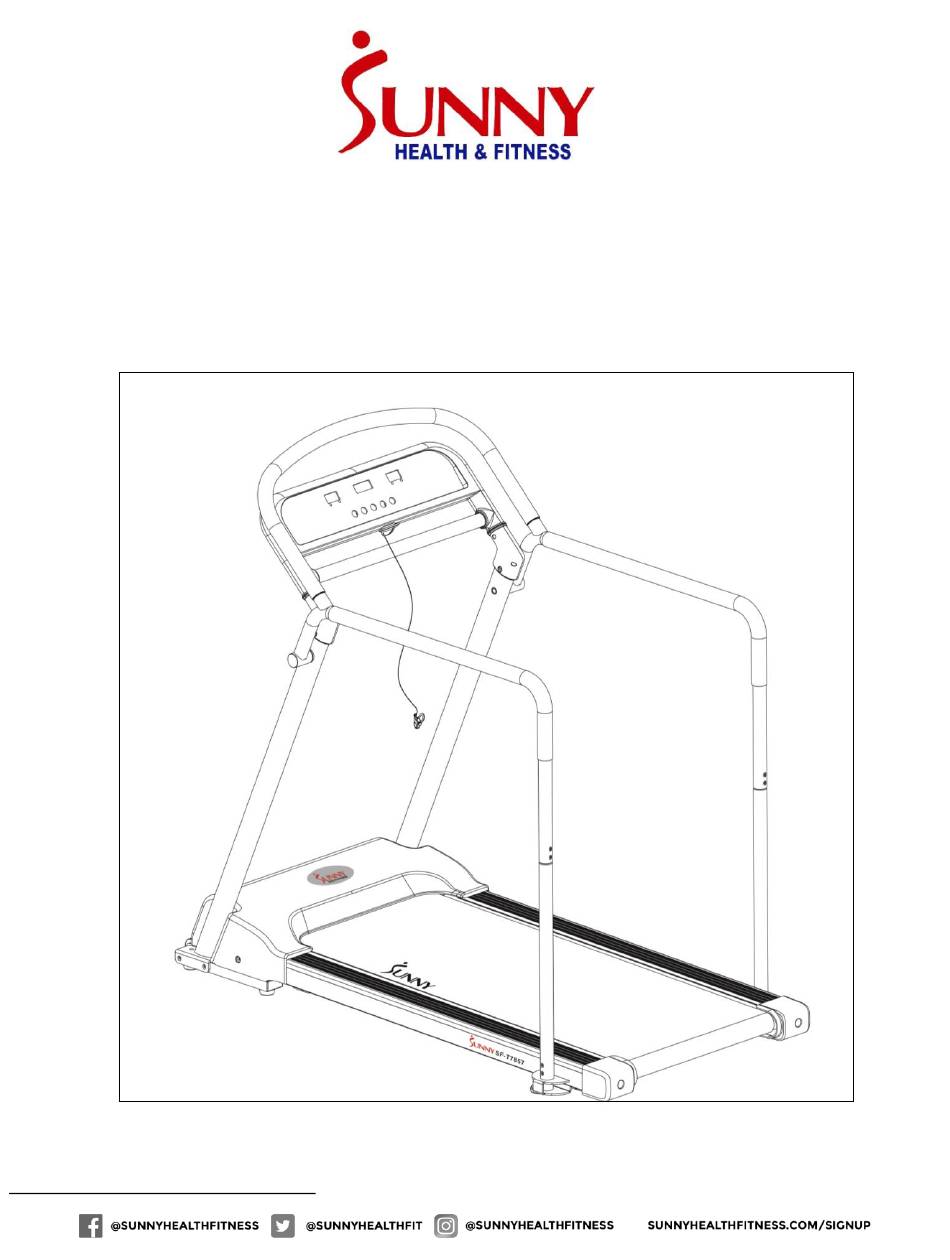

- Page 1 WALKING TREADMILL WITH HANDRAIL SF-T7857 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed. Read all instructions before using this treadmill. DANGER – To reduce the risk of electric shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Exploded Diagram
EXPLODED DIAGRAM 1... -
Page 6: Parts List
EXPLODED DIAGRAM 2 PARTS LIST... - Page 7 PARTS LIST Description Specification Description Specification Ribbon Cable on Key Main Frame Board Left Upright Upper Signal Wire Right Upright Middle Signal Wire Console Bracket Bottom Signal Wire Support Tube Safety Key Sensor Left Side Handlebar Safety Key Right Side Handlebar Power Wire Front Handlebar Power Switch...
- Page 8 Description Specification Description Specification Optional Grounding Wire Optional Audio Jack Wire M5*8 Optional Bolt Speaker Optional ST2.9*6.0 MP3 Connecting Optional Screw Optional Wire Optional Audio Module Fixing Cap Optional Amplifier Board Optional Amplifier Wire Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...
- Page 18 HOW TO ADJUST THE BALANCE To achieve a smooth and comfortable experience, you must ensure that the treadmill is stable. If you notice that the treadmill is unbalanced during use, you should adjust the Adjustable Foot Pads (No. C23-2). To do so, use Spanner w/ Screw Driver (No. B03) to loosen Nut (No. C23-1) by turning it clockwise.
-
Page 19: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. C19) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No. -
Page 20: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Board (No. D13) and Running Belt (No. C19) is essential as the friction between the two affects the life span and function of the treadmill. It is suggested that the Running Board (No. -
Page 21: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a correct power source in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 22: Console Instructions
CONSOLE INSTRUCTIONS DISPLAY AND BUTTON FUNCTIONS 1. CAL. / DIS: Displays calories and distance. 2. TIME: Displays running time. 3. SPEED: Displays current speed. 4. START: Press this button at any time to start the treadmill. 5. SPEED – : Press this button to decrease the speed. 6. -
Page 23: Power On & Power Off
POWER ON & POWER OFF POWER ON: Flick the power switch to this symbol to turn on the treadmill. POWER OFF: Flick the power switch to this symbol to turn the treadmill off at any time, including while the treadmill is in use. -
Page 24: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into the outlet. Treadmill will not start Safety Key not inserted. Insert Safety Key. Running belt tension is not Tighten the adjustment bolts Running belt correct on the left or right on the left and right side of the centered side of the running board. - Page 25 Check motor wires to see if the motor is connected. If the The motor wire is not wire has been punctured or E06: Motor Abnormality connected, or the motor is damaged, you will need to damaged. replace it. If the problem is not rectified, you may need to replace the motor.
