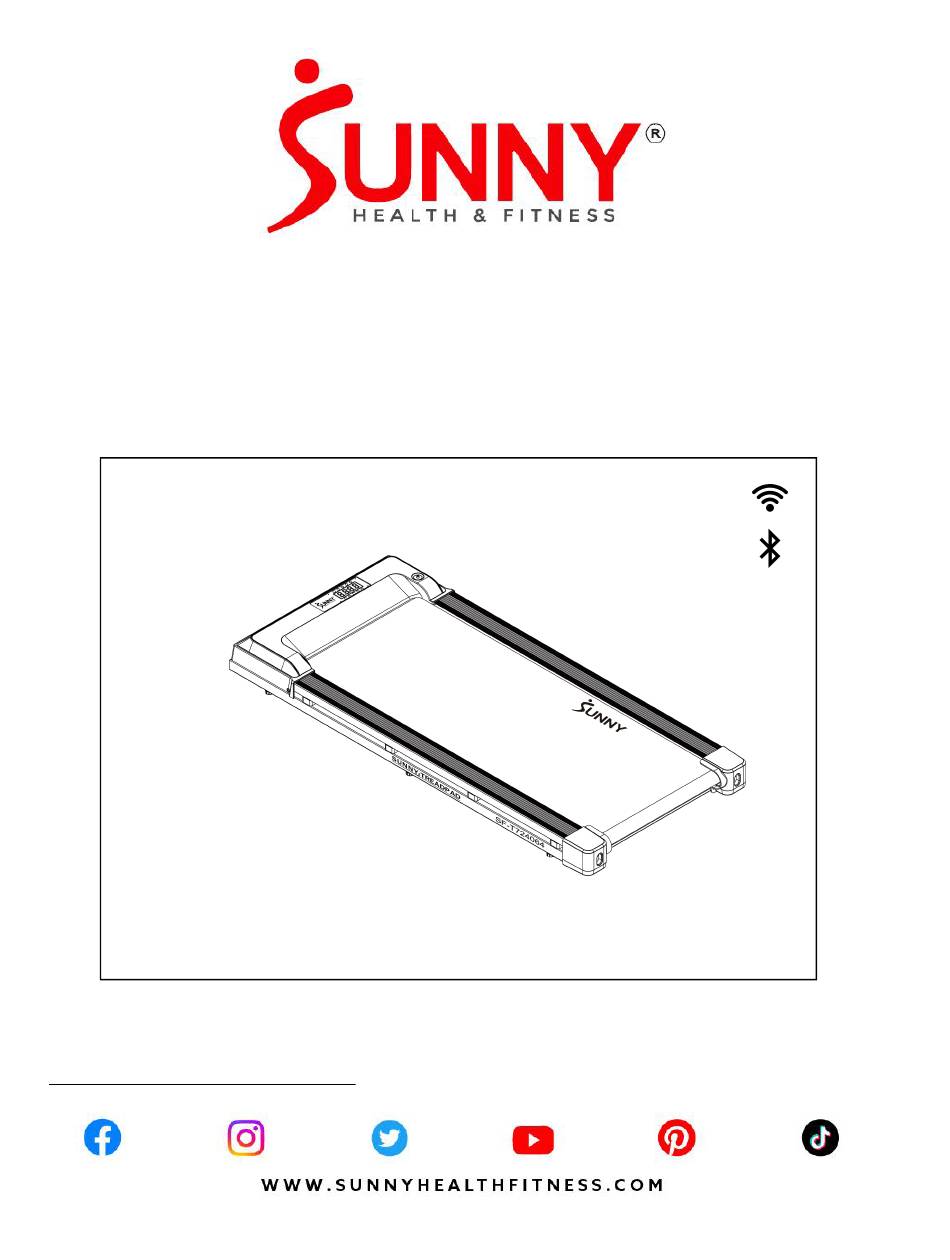

TREADPAD 100 SMART WALKING
TREADMILL
SF-T724064
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness TREADPAD 100
Summary of Contents for Sunny Health & Fitness TREADPAD 100
- Page 1 TREADPAD 100 SMART WALKING TREADMILL SF-T724064 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER –To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. -
Page 3: Important Safety Information
CAUTION: To avoid Injury, use extreme caution when stepping onto or off the running belt. Read the instruction manual before using. IC CAUTION: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. - Page 4 7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment. 8. Do not place fingers or objects into the moving parts of the equipment. 9. The maximum weight capacity of this unit is 245 lbs (110 kgs). 10.
-
Page 5: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST... - Page 6 USER INSTRUCTIONS...
-
Page 7: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT Dispose the old battery (1.5V, AAA) according to your regional guidelines. -
Page 8: How To Move The Treadmill
HOW TO MOVE THE TREADMILL... -
Page 9: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board and Running Belt. -
Page 10: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. Clean the Running Belt and Running Board before lubricating. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board and Running Belt is essential as the friction between the two affects the life span and function of the treadmill. -
Page 11: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: For your safety, as well as the safety of others, verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. GROUNDING METHODS: This product must be grounded. -
Page 12: The Display Console
THE DISPLAY CONSOLE WINDOW DISPLAY: Displays time, distance, calories, steps, pulse and speed value every 5 seconds. Pulse will display when wireless heartrate monitor is connected. REMOTE CONTROL FUNCTIONS: NOTE: If the treadmill does not respond to the remote control, you will need to resync the treadmill and remote control. -
Page 13: Power Save Function
*NOTE: The maximum speed on this treadmill is 3.7 MPH (Miles per hour). PROGRAMS Initial Default Value Set Range Display Range 0:00—99:59 TIME (MIN: SECOND) 0.5－3.7 SPEED(MPH) 0.5-3.7 0.00--99.9 DISTANCE(MILES) 0-9999 STEP 0.0--9999 CALORIE(KCAL) LUBRICATION REMINDER: Your treadmill needs lubrication maintenance every 188 miles. The system will release a beeping sound every 10 seconds and display an “OIL”... -
Page 14: Technical Data
WIRELESS HEART RATE 1. The wireless heart rate icon will stay on when the heart rate monitor is connected. 2. The console can be connected to the heart rate monitor at any time except in power saving mode. 3. The wireless heart rate icon will flash when the console is on. If the heart rate monitor is not connected within 3 minutes, the wireless heart rate icon will turn off. -
Page 15: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key not inserted. Insert Safety Key. Running belt tension not Running belt not Tighten the adjustment bolts on the left correct on the left or right centered and right side of the rear roller. - Page 17 Check the upper and middle wires to see if the control board is connected. If the E08 ERROR: Control The control board is not wire has been punctured or damaged, board abnormality connected. you will need to replace it. If the problem is not rectified, you may need to replace the control board.
-
Page 18: Exploded Diagram
EXPLODED DIAGRAM... -
Page 19: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Screw ST2.5*6 Running Board Screw ST2.2*8 Strengthen Tube Front Roller Screw ST2.0*8 Rear Roller Screw ST4.2*12 Safety Key Plate Screw ST4.2*12 Allen Wrench Bolt M5*12 Motor Top Cover Spring Washer Optical Grating Spring Washer Left End Cap...
