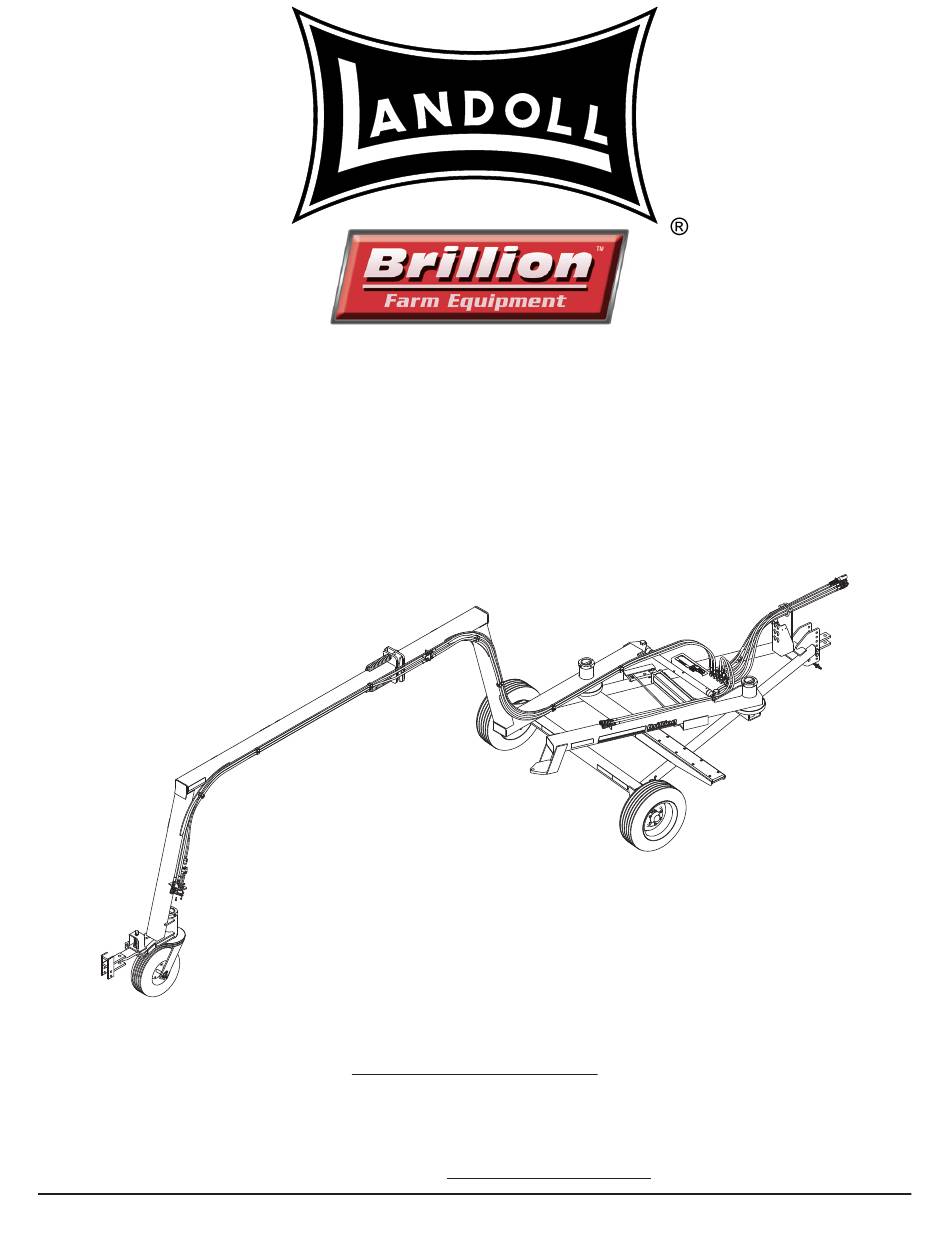

Double Seeder Hitch
BDH512
Operator's Manual
LANDOLL COMPANY, LLC
1900 North Street
Marysville, Kansas 66508
(785) 562-5381
800-428-5655 ~ WWW.LANDOLL.COM
F-645-2408

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brillion BDH512 and is the answer not in the manual?

Questions and answers

Related Manuals for Landoll Brillion BDH512

Summary of Contents for Landoll Brillion BDH512

  • Page 1 ‘ Double Seeder Hitch BDH512 Operator’s Manual LANDOLL COMPANY, LLC 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM F-645-2408...
  • Page 2 Manuals for BDH512 - Double Seeder Hitch Manual Number Manual Type F-645 Operator’s Manual F-646 Parts Manual...
  • Page 3 DANGER DO NOT operate or perform any maintenance tasks on this equipment until you have completed the following: 1. Receive proper training to operate this equipment safely. 2. Read and understand the operator’s manual. 3. Be thoroughly trained on inspection and repair procedures. Failure to comply with this warning may result in serious injury or possibly death.
  • Page 5 Table of Contents Safety Introduction ............1-1 Description of Unit .
  • Page 6 TABLE OF CONTENTS Operation Tractor Preparation..........3-1 Double Seeder Hitch Preparation.

  • Page 7: Warranty Registration

    Failure to comply with this warning can result in within 10 days of retail purchase, using the Landoll personal injury or death, damage to the Corporation Ag Products on-line registration process.

  • Page 8: Transporting Safety

    TABLE OF CONTENTS SAFETY Safety • When applying decals to the implement, be sure to clean the surface to remove any dirt or residue. Where possible, sign placement should protect the NOTE sign from abrasion, damage, or obstruction from mud, dirt, oil etc.

  • Page 9: Maintenance Safety

    TABLE OF CONTENTS SAFETY Safety Instructions for Towing Maintenance Safety Vehicles • Block the machine so it will not roll when working on or under it. The maximum travel speed is the lesser of • Transport Locks installed. • The limit of the road conditions; •...

  • Page 10: High Pressure Fluid Safety

    TABLE OF CONTENTS SAFETY High Pressure Fluid Safety Safety Chain Escaping fluid under pressure can be nearly invisible and 1. Use the Safety Chain to help control drawn machinery have enough force to penetrate the skin causing serious should it separate from the Tractor Drawbar. See injury.
  • Page 11 ITEM 1 - 3K706 ITEM 3 - 4K037 ITEM 4 - 4K039 ITEM 5 ITEM 6 ITEM 7 528933 528934 528938 Landoll Company, LLC Marysville, Kansas www.landoll.com MODEL # SERIAL # MADE IN USA 1-573-010006 ITEM 8 - 1-573-010006 Figure 1-3: Decals...
  • Page 12 TABLE OF CONTENTS SAFETY Figure 1-4: Decal Locations F-645-2408...

  • Page 13: Drawbar Assembly

    Chapter 2 TABLE OF CONTENTS Assembly IMPORTANT CAUTION All harnesses must be firmly attached to machine Do Not work on or under this machine unless frame members, so they don’t sag or become torn securely blocked and supported by a hoist or loose by field debris.

  • Page 14: Tire Installation

    TABLE OF CONTENTS ASSEMBLY Hose Support Drawbar Bolt, 5/8-11 x 2-1/4 Flat Washer,5/8 Bolt,3/8-16 X 3 Connector Flange Holder Locknut,1/4-20 Hose Support Bolt, Locknut,3/8-16 3/4-10 x 6-1/2 Bolt, Hub & Spindle Hitch 1/4-20 x 3/4 4K636 Jack Locknut,5/8 Wheel Bolt, Wheel and Tire 1/2-20 x 1"...
  • Page 15 TABLE OF CONTENTS ASSEMBLY Attach the Pivoting Hitches 3. Each Keeper Plate has 2 sets of holes. Position it so that the smallest gap as possible is between the to the Drawbar Keeper Plate and the Hitch Pipe. Line the appropriate hole up with the Drawbar Pipe and secure in place 1.
  • Page 16 TABLE OF CONTENTS ASSEMBLY Attaching the Rear Portion of 2. Install cushion by installing two Spring Bolts, six 3/8" Thick Washers, two Inner and Outer Compression the Long Hitch to the Front Springs and two 3/4-10 Locknuts into the front and Portion rear portions of the rear Hitch as shown.
  • Page 17 TABLE OF CONTENTS ASSEMBLY Caster Wheel Installation 4. Remove the Rear Seeder Drawbar Hitch and replace it with 1P885 Hitch which is longer. 1. Slide the Wear Disk and Bushing onto the Caster Assembly Pipe. See Figure 2-5. NOTE 2. Slide the Caster Assembly Pipe onto the Rear Hitch. Locking Collars should be tightened in normal direction of rotation.
  • Page 18 TABLE OF CONTENTS ASSEMBLY Turnbuckle Installation 2. Install bushing end of the Turnbuckle between the lugs on the Short Hitch. Secure in place with 1-1/4 x The Turnbuckle is used to adjust the overlap of the 6-1/2 Bolt and Locknut. seeders.
  • Page 19 TABLE OF CONTENTS ASSEMBLY Hydraulic Cylinder • If you are using two 12 FT wide seeders, the front holes are used for mounting the cylinder. Installation • If you are using the two 10 FT wide seeders, use the middle holes. 1.
  • Page 20 TABLE OF CONTENTS ASSEMBLY Transport Lock Installation 2. Remove the Hairpin from the Transport Lock and install it in either the slot on the Drawbar Frame 1. Remove the Flat Washer and Cotter Pin from the (Storage Position) or into the appropriate hole in the Transport Lock and insert it in the proper hole in the Short Hitch 3-Hole Lug (Lock Position).

  • Page 21: Hydraulic Installation

    TABLE OF CONTENTS ASSEMBLY Hydraulic Installation 2. Orient the Fitting by turning counterclockwise up to 1 turn. 4. Tighten the Locknut using 50-60 Ft-Lbs of torque. See WARNING "Hydraulic Fitting Torque Specifications" on page 4-2. Escaping fluid under pressure can be nearly invisible and have enough force to penetrate the Plumbing the Hydraulic System skin causing serious injury.
  • Page 22 TABLE OF CONTENTS ASSEMBLY Female Coupling Hose Asm,3/8 x 161 Bulkhead P/N 159569 08MJ x 08MOR Bulkhead Female 08MJ x 08MJ Coupling Elbow,08MJ x Bulkhead 08FJS 90° 08MJ x 08MOR Hose Asm,3/8 x 82 P/N 122909 Hose Asm,3/8 x 185 P/N 150273 Cap,08FJ Elbow,08MJ x...
  • Page 23 TABLE OF CONTENTS ASSEMBLY Figure 2-11: Hydraulic Layout (1 of 2) F-645-2408 2-11...
  • Page 24 TABLE OF CONTENTS ASSEMBLY Figure 2-12: Hydraulic Layout (2 of 2) 2-12 F-645-2408...

  • Page 25: Electrical Installation

    TABLE OF CONTENTS ASSEMBLY Electrical Installation 4. 7-Pin Plug end connects to the tractor or is stored in connector Holder located on the Hose Holder Bracket 1. Attach Tandem Hauler Adapter to Rear Hitch that is mounted to the Drawbar. Allow enough Bulkhead just above the Caster Wheel Assembly.
  • Page 26 TABLE OF CONTENTS ASSEMBLY S-Tine Tire Track Remover - NOTE Optional S-Tines should not be operated any deeper than necessary to remove tractor tire tracks. Otherwise, wet 1. Attach Brackets to the frame with 1/2-13 x 4-1/2 x soil is brought up which will stick to the rollers, draft load 7-1/2 U-Bolts, Lock Washers, and Nuts.
  • Page 27 TABLE OF CONTENTS ASSEMBLY Bracket S-Tine 10-1/4" 4" 13-1/8" Tube 18-3/8" 7-1/2" 13-1/8" 4" Frame Hoses over the top of Brackets Tube Bracket S-Tine 15-3/8" 7-1/2" 10-1/4" 52-1/2" Figure 2-16: S-Tine Track Remover Kit - Optional F-645-2408 2-15...
  • Page 28 TABLE OF CONTENTS ASSEMBLY Table provided for general use. NOTES: 2-16 F-645-2408...

  • Page 29: Tractor Preparation

    Chapter 3 TABLE OF CONTENTS Operation Tractor Preparation DANGER DANGER The Double Seeder Hitch is a Pull-Type machine Never allow anyone a ride on the seeder at any equipped with a drawbar. time. Allowing a person to ride on the machine can Before attaching the implement, prepare the tractor as inflict serious personal injury or death to that follows:...
  • Page 30 TABLE OF CONTENTS OPERATION Attaching the Double Seeder 8. Transport the Double Seeder Hitch to the field. 9. Fully retract Double Hitch Hydraulic Cylinder. Hitch Remove Transport Lock and position it in storage. See Figure 3-1. Secure Transport Lock with Hairpin The Double Seeder Hitch is designed to be pulled behind Cotter.

  • Page 31: Transport Lock

    TABLE OF CONTENTS OPERATION Transport Lock • Engaged: Retract the Double Seeder Hitch Hydraulic Cylinder. Remove the Hairpin Cotter from Depending on the width of the seeders being used, install the Transport Lock. Rotate the Transport Lock and the Transport Lock as follows: See Figure 3-1. insert it into the appropriate hole in the Short Hitch 3-Hole Lug.
  • Page 32 TABLE OF CONTENTS OPERATION Attaching the Seeders 2. As soon as the front Seeder is past the hitch of the second Seeder, extend Double Hitch Hydraulic Cylinder to expand the Hitch Pivots to field position NOTE NOTE and turn the tractor to the right so that the rear hitch When attaching two seeders of different widths, attach the gets closer to the rear Seeder.

  • Page 33: General Operation

    TABLE OF CONTENTS OPERATION General Operation • Use extreme caution when turning corners. When turning left, the seeder swings widely to the right. • Horsepower requirement should be enough to • The left edge of the front seeder follows directly along adequately and safely support the Seeders being the center of the tractor.
  • Page 34 TABLE OF CONTENTS OPERATION Transport Lock Figure 3-4: Transport Position F-645-2408...

  • Page 35: Hydraulic System

    TABLE OF CONTENTS OPERATION Hydraulic System The Double Seeder Hitch is equipped with 3 circuits: Fold/Unfold Circuit - Folds/unfolds the Drawbar Pivot Hitches, approximate oil requirement: 0.8 WARNING gallons Escaping fluid under pressure can be nearly Front Seeder Lift Circuit - Raises/Lowers the Front invisible and have enough force to penetrate the Seeder, approximate oil requirement: skin causing serious injury.
  • Page 36 TABLE OF CONTENTS OPERATION Hose Set-Up for Both NOTE Seeders on One Hydraulic To relieve hydraulic pressure: Depending on tractor hydraulic system, some can be relieved by actuating Circuit control lever after engine is stopped. If tractor has electric over hydraulic controls, it may be necessary to move the control lever to the float position.
  • Page 37 TABLE OF CONTENTS OPERATION Transport 6. Before transporting: • Know the height and width of the implement being 1. Check and follow all federal, state, and local towed. Markers, tanks, attachments, etc. can requirements before transporting the Double Seeder increase the height and width of the implement. Hitch.
  • Page 38 TABLE OF CONTENTS OPERATION Table provided for general use. NOTES: 3-10 F-645-2408...

  • Page 39: General Torque Specifications

    Chapter 4 TABLE OF CONTENTS Maintenance General Torque Specifications (rev. 4/97) This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used.

  • Page 40: Hydraulic Fitting Torque Specifications

    TABLE OF CONTENTS MAINTENANCE Hydraulic Fitting Torque Specifications 37 degree JIC, ORS, & ORB (REV. 10/97 This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used.

  • Page 41: Lubrication Maintenance

    TABLE OF CONTENTS MAINTENANCE Fasteners NOTE The Single Lip Seals should point away from the Hub to Before operating your Brillion machine, check all keep contaminants out and allow grease to pass. hardware for tightness. Use the Tightening Torque Table as a guide.

  • Page 42: Hydraulic Maintenance

    TABLE OF CONTENTS MAINTENANCE Hydraulic Maintenance Warning Lamps When connecting the 7-Pin Warning Lamp Connector: WARNING 1. Make sure the Tractor has a good clean Receptacle, free of dirt and corrosion. Escaping fluid under pressure can be nearly 2. Make sure the 7-Pin Connector is inserted ALL the invisible and have enough force to penetrate the way in.
  • Page 43 TABLE OF CONTENTS MAINTENANCE Storage 1. The service life of the Double Seeder Hitch will be extended by proper off-season storage practices. Prior to storing the unit, complete the following procedures: • Completely clean the unit. • Inspect the machine for worn or defective parts. Replace as needed.
  • Page 44 TABLE OF CONTENTS MAINTENANCE Table provided for general use. NOTES: F-645-2408...
  • Page 45 Chapter 5 TABLE OF CONTENTS Specifications Product Attributes BDH 512 Approximate Weight 2,050 lbs. (930 kg) Working Width Dependent on Implements Used Transport Width (Less Implements) 8 ft. 5 in. (2.57 m Transport Height 7 ft. 9 in. (2.36 m) Overall Length (Less Implements) 28 ft.

  • Page 46: Specifications

    TABLE OF CONTENTS SPECIFICATIONS Table provided for general use. NOTES: F-645-2408...
  • Page 47 Document Control Revision Log: Date Form # Improvement(s): Description and Comments 04/2012 F-645-R1 New Release 08/2024 F-645-2408 Update Template Updated ISO logos to ISO 9001:2015...
