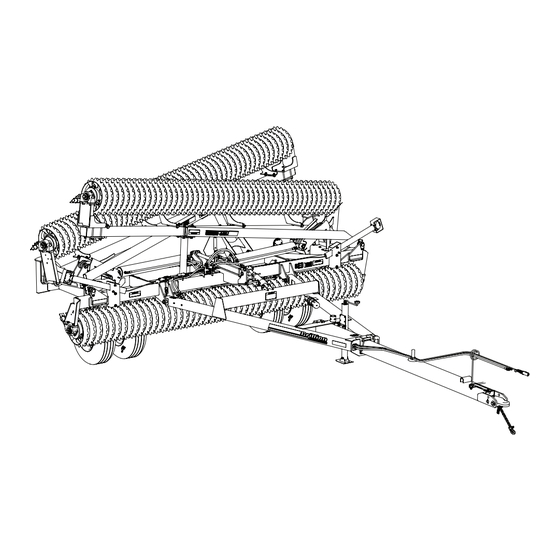

Wing Float Pulverizer
Models WFP38-52
Operator's Manual
LANDOLL COMPANY, LLC
1900 North Street
Marysville, Kansas 66508
(785) 562-5381
800-428-5655 ~ WWW.LANDOLL.COM
F-661-2406

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brillion WFP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Landoll Brillion WFP Series

Summary of Contents for Landoll Brillion WFP Series

  • Page 1 ‘ Wing Float Pulverizer Models WFP38-52 Operator’s Manual LANDOLL COMPANY, LLC 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM F-661-2406...
  • Page 2 Manuals for Wing Float Pulverizer, WFP38-52 Manual Number Manual Type F-661 Operator’s Manual F-662 Parts Manual...
  • Page 3 Table of Contents Safety Information Introduction ........... . 1-1 Description of Unit .
  • Page 4 TABLE OF CONTENTS Center Notch Wheel Scraper - Optional ......2-30 Wing Notch Wheel Scraper - Optional ......2-32 Center V-Wheel Scraper - Optional .

  • Page 5: Description Of Unit

    Failure to comply with this warning can result in within 10 days of retail purchase, using the Landoll personal injury or death, damage to the Company, LLC Ag Products on-line registration process.

  • Page 6: Transporting Safety

    TABLE OF CONTENTS SAFETY INFORMATION Safety • When applying decals to the implement, be sure to clean the surface to remove any dirt or residue. Where possible, sign placement should protect the NOTE sign from abrasion, damage, or obstruction from mud, Investigation has shown that nearly 1/3 of all farm dirt, oil etc.

  • Page 7: Maintenance Safety

    TABLE OF CONTENTS SAFETY INFORMATION Safety Instructions for Towing Maintenance Safety Vehicles • Block the implement so it will not roll when working on or under it to prevent injury. The maximum travel speed is the lesser of • Transport Locks installed. •...

  • Page 8: High Pressure Fluid Safety

    TABLE OF CONTENTS SAFETY INFORMATION High Pressure Fluid Safety Bolt, Escaping fluid under pressure can be nearly invisible and Hitch Lock Tractor 1-8 x 2-1/2 have enough force to penetrate the skin causing serious Drawbar injury. Use a piece of cardboard, rather than hands, to search for suspected leaks.
  • Page 9 SERIOUS PERSONAL INJURY. SEE OPERATORS MANUAL FOR CORRECT PROCEDURE. ITEM 4 - 3J675 ITEM 3 - 3J678 MEMBER DANGER LANDOLL COMPANY, LLC 1900 North Street WATCH FOR ELECTRICAL WIRES AND Marysville, Kansas 66508 OTHER OVERHEAD OBSTRUCTIONS WHEN FOLDING WINGS. FARM EQUIPMENT...

  • Page 10: Decal Locations

    TABLE OF CONTENTS SAFETY INFORMATION Decal Locations FRONT VIEW REAR VIEW Figure 1-5: Center Frame Decals (1 of 5) F-661-2406...
  • Page 11 TABLE OF CONTENTS SAFETY INFORMATION Figure 1-6: Drawbar Decals (2 of 5) F-661-2406...
  • Page 12 TABLE OF CONTENTS SAFETY INFORMATION Figure 1-7: RH Wing Decals (3 of 5) F-661-2406...
  • Page 13 TABLE OF CONTENTS SAFETY INFORMATION Figure 1-8: LH Wing Decals (4 of 5) F-661-2406...
  • Page 14 TABLE OF CONTENTS SAFETY INFORMATION FRONT WFP50-52 REAR WFP50-52 Figure 1-9: WFP50-52 Decals (5 of 5) 1-10 F-661-2406...
  • Page 15 Chapter 2 TABLE OF CONTENTS Assembly IMPORTANT CAUTION All Harnesses must be firmly attached to machine Do not work on or under this machine unless frame members or Hydraulic Hoses so they do not securely blocked and supported by a hoist or sag or become torn loose by field debris.
  • Page 16 TABLE OF CONTENTS ASSEMBLY Frame and Transport Axle Tire and Wheel Installation Assembly WARNING NOTE Use a torque wrench to assure proper torque. The Bearing Inserts are maintenance free and require no Insufficient torque can cause stud breakage and grease. damage the wheel pilots.
  • Page 17 TABLE OF CONTENTS ASSEMBLY Figure 2-2: Frame and Transport Axle Assembly F-661-2406...
  • Page 18 TABLE OF CONTENTS ASSEMBLY Center Frame Roller Assembly Installation Rotation Arrow must follow the direction of travel NOTE Wheel Stop is on the Clamp side of the Roller Assembly. NOTE Crowfoot Wheel Rotation Arrow must follow the direction of travel. See Figure 2-3. Roller Assemblies are pre-assembled from the factory with trunnion bearings, shims, and retaining washers.
  • Page 19 TABLE OF CONTENTS ASSEMBLY Center Frame Center Frame Bearing Hanger Bearing Hanger 3/4-10 Bolt Flat Top Washer Flat Top Washer Loosen 1-8 Bolt Trunnion Shim Stub Shaft Stub Shaft Bearing Washers Mount Center Frame Center Frame Bearing Hanger Bearing Hanger Flat Top Flat Top Washer...
  • Page 20 TABLE OF CONTENTS ASSEMBLY Trunnion Washer Rear Only Trunnion Bearing Trunnion Bearing Mount Grease Fitting must be oriented to rear of machine FRONT Roller Assembly Bolt,3/4-10 x 2-1/4 Trunnion Bearing Lock Washer,3/4 Mount Trunnion Washer Shim Washer Rear Only Trunnion Bearing Mount Grease Fitting Trunnion Bearing...
  • Page 21 TABLE OF CONTENTS ASSEMBLY Figure 2-6: Center Frame V-Wheel Roller Installation F-661-2406...

  • Page 22: Drawbar Installation

    TABLE OF CONTENTS ASSEMBLY Drawbar Installation 2. Attach turnbuckle to Center Frame Lug with 1 x 6 Pin and to the Drawbar with 1 x 5-1/2 Pin. Place a 1" Flat Washer on each side of the Pin. Secure each Pin with NOTE a 5/16 x 2 Roll Pin and Klik Pin.
  • Page 23 TABLE OF CONTENTS ASSEMBLY Drawbar Jack, Hose Support and Manual Storage Canister Installation 1. Assemble the Jack Mount to the Jack with the 1/2-13 x 1-1/2 Bolts and Locknuts in the four upper holes. Attach the Jack to the drawbar by slipping the Jack sleeve into the Drawbar sleeve and inserting the Jack 3/4 Pin with Chain.

  • Page 24: Wing Fold Cylinder Installation

    TABLE OF CONTENTS ASSEMBLY Wing Fold Cylinder 3. Place the base end of the 5 x 42 Hydraulic Cylinder (WFP38-46) or 5-1/2 x 42 Hydraulic Cylinder Installation (WFP50-52) between each pair of Center Frame Lugs. Insert bushings into frame Lugs. Secure with 1-1/4-7 x 5-1/4 Bolts and Locknuts.

  • Page 25: Hydraulic Installation

    TABLE OF CONTENTS ASSEMBLY Hydraulic Installation Tightening Procedure For Swivel O-Ring Fittings 1. Lubricate O-Ring and install the fitting until the metal washer which backs up the O-Ring contacts the face IMPORTANT of the boss. Unfold and lower the unit to the ground and relieve 2.
  • Page 26 TABLE OF CONTENTS ASSEMBLY Drawbar A-Frame Handle Hose Clamp Magnet Flat Washer,5/16 Bolt,5/16-18 x 2 Hose Support Magnet Drawbar Figure 2-12: Telescoping Drawbar Magnet Hose Holder 2-12 F-661-2406...
  • Page 27 TABLE OF CONTENTS ASSEMBLY Hydraulic Valve Assembly 2. For initial setting, Open Flow control by turning Allen Wrench CCW 1 turn. Tighten nut and reinstall Cap. Installation Fold Shut-Off 1. Fasten Valve Assembly onto Center Frame Bracket with 5/16-18 x 1" Bolts and Lock Washers. See To operate wing fold shut-off circuit: Figure 2-13.

  • Page 28: Hydraulic Hose Installation

    TABLE OF CONTENTS ASSEMBLY Hydraulic Hose Installation 4. Attach hoses to Cylinders and Manifold. 5. Install Male Couplers on the ends of the Male O-Ring 1. Install Elbow O-Ring Fittings into Lift Cylinder Ports. Hose ends and insert them into the Female Coupler See Figures 2-14 and 2-15.
  • Page 29 TABLE OF CONTENTS ASSEMBLY Figure 2-15: Hydraulic Schematic F-661-2406 2-15...

  • Page 30: Purging The Hydraulic System

    TABLE OF CONTENTS ASSEMBLY Purging the Hydraulic System DANGER DANGER IMPORTANT Falling wings can cause injury or death. Stand Unfold and lower the unit to the ground and relieve clear when wings are being raised or lowered. system pressure before attempting to repair, adjust or disconnect components.
  • Page 31 TABLE OF CONTENTS ASSEMBLY Table provided for general use. NOTES: F-661-2406 2-17...

  • Page 32: Wing Installation

    TABLE OF CONTENTS ASSEMBLY Wing Installation 1. Assemble the Wings onto the Center Frame. See Figure 2-17. At the rear of the Center Frame, slide the RH or LH Wing Guide Roller into the Center Frame Yoke/Guide. At the front of the Center Frame, place a Spacer on each side of the Spherical Bearing, positioning it between the Center Frame Lugs.
  • Page 33 TABLE OF CONTENTS ASSEMBLY Wing Link Roller WFP38-46OpWingFrame2016 Bushing,1-1/4 x 14ga Pin,1-1/4 x 9 Roll Pin,5/16 x 2 Bushing,1-1/4 x 14ga Wing Guide Roller Wing Link Roller Bushing, Grease Fitting 1-1/4 x 14ga 1/8 NPT Yoke Cotter Pin, 1/4 x 2-1/2 Roll Pin,5/16 x 2 Slotted Nut, 1-1/4-12...
  • Page 34 TABLE OF CONTENTS ASSEMBLY Wing Rest Installation 2. Attach the Wing Rest Bumper Pads onto the top of the RH and LH Wing Rest with 3/8-16 x 1-1/2 Flat Head 1. Install the RH and LH Wing Rest to the RH and LH Screws and Locknuts.
  • Page 35 TABLE OF CONTENTS ASSEMBLY Wing Frame Roller Assembly Installation Rotation Arrow must follow the direction of travel NOTE Wheel Stop is on the Clamp side of the Roller Assembly. NOTE Roller Axle Assembly clamped end must be on the outer extremity of the Wing.
  • Page 36 TABLE OF CONTENTS ASSEMBLY Bearing Hanger Clamp Locknut,5/8-11 Bearing Hanger Bolt,5/8-11 x 7 Bolt,3/4-10 x 2-1/4 Trunnion Bearing Lock Washer,3/4 Mount Trunnion Washer Rear Only Trunnion Bearing Mount Roller Assembly FRONT Roller Assembly Trunnion Bearing Mount Trunnion Bearing Trunnion Bearing Mount Grease Fitting, must be oriented to...
  • Page 37 TABLE OF CONTENTS ASSEMBLY Bearing Hanger Clamp Locknut,5/8-11 Bearing Hanger Bolt,5/8-11 x 7 Bolt,3/4-10 x 2-1/4 Trunnion Bearing Lock Washer,3/4 Mount Trunnion Bearing Trunnion Washer Mount Rear Only Trunnion Bearing Mount Trunnion Bearing Grease Fitting, must be oriented to rear of machine Outer Roller Assembly Bearing Hanger...
  • Page 38 TABLE OF CONTENTS ASSEMBLY Warning Lamp Installation 10. Route the “Right” 3-Prong Cord across the top of inner frame tube to the rear frame, connect the Lamp NOTE Harness into the right Red Lamp. Route the “Left” Be sure when assembling Lamps onto Brackets that the 3-Prong Cord along the top of front frame, then across wires are not pinched when tightening hardware.
  • Page 39 TABLE OF CONTENTS ASSEMBLY Figure 2-22: Warning Lamp Installation F-661-2406 2-25...
  • Page 40 TABLE OF CONTENTS ASSEMBLY WFP38-46 Warning Lamp Bracket Dimensions Warning Warning Lamp Bracket Lamp Bracket Front RH Warning Lamp Bracket 18"±1/2" 18"±1/2" LH Warning Lamp Bracket 12-1/2" SMV Mount Rear Figure 2-23: WFP38-46 Warning Lamp Bracket Dimensions 2-26 F-661-2406...
  • Page 41 TABLE OF CONTENTS ASSEMBLY WFP50-52 Warning Lamp Bracket Dimensions 16" Max 16" Max Amber Amber Reflective Reflective Decal Decal Warning Warning Lamp Bracket Lamp Bracket Front RH Warning Lamp Bracket 18"±1/2" 18"±1/2" LH Warning Lamp Bracket 16" Max 16" Max Reflective Reflective Decal...
  • Page 42 TABLE OF CONTENTS ASSEMBLY SMV Installation 1. Attach the SMV Mount to the frame tube 12-1/2" left of center with 5/8-11 U-Bolts, Flat Washers and Locknuts. See Figures 2-23 or 2-24. 2. Attach the SMV Sign to the mount with 5/16-18 X 1 Bolts, Flat Washers, and Locknuts.
  • Page 43 TABLE OF CONTENTS ASSEMBLY Table provided for general use. NOTES: F-661-2406 2-29...
  • Page 44 TABLE OF CONTENTS ASSEMBLY Center Notch Wheel Scraper - Optional NOTE A scraper can be used as a guide to achieve the 1/4" gap, between the Scraper and Notched Wheels. 1. Place the Center Roller on level ground. Install the Center Scraper Mounts to the Center Frame Front Tube with 1/2-13 U-Bolts and Flange Locknuts.
  • Page 45 TABLE OF CONTENTS ASSEMBLY Bolts,1/2-13 x 8 U-Bolt,1/2 x 5-1/4 x 6-1/16 Flat Washer, 1/2 4-Hole Plate Flange Locknut,1/2-13 Scraper Mount Bracket Center Flat Washer,1/2 Scraper Mount Bolt,1/2-13 x 1-3/4 Scraper Mount Bracket Flat Washer,1/2 Flange Locknut, Flange Locknut, Bolt,1/2-13 1/2-13 1/2-13 x 1-3/4...
  • Page 46 TABLE OF CONTENTS ASSEMBLY Wing Notch Wheel Scraper - Optional NOTE A scraper can be used as a guide to achieve the 1/4" gap between the Scraper and Notched Wheels. 1. Place the Wing Rollers on level ground. Assemble the RH and LH Wing Scraper Mounts to Wing Frame Mounts with 1/2-13 x 1-3/4 Bolts, Flat Washers, and Flange Locknuts.
  • Page 47 TABLE OF CONTENTS ASSEMBLY Flat Washer,1/2 RH Wing Flange Locknut,1/2-13 Bolt, 1/2-13 x 1-3/4 RH Wing Scraper Mount LH Wing Bolt,1/2-13 x 1-3/4 Flat Washer,1/2 LH Wing Scraper Mount U-Bolt,3/8-16 Flange Locknut,1/2-13 U-Bolt,3/8-16 Scraper Tube Flange Locknut,3/8-16 Scraper Figure 2-27: Wing Notch Wheel Scrapers F-661-2406 2-33...
  • Page 48 TABLE OF CONTENTS ASSEMBLY Table provided for general use. NOTES: 2-34 F-661-2406...
  • Page 49 TABLE OF CONTENTS ASSEMBLY Center V-Wheel Scraper - length of the Center Roller with the Scrapers between the V-Wheels. Optional 3. Loosen the Flange Locknuts where the corresponding 1/2-13 U-Bolt will attach the Scraper 1. Place the Center Roller on level ground. Assemble Tube to the Scraper Brackets.
  • Page 50 TABLE OF CONTENTS ASSEMBLY Wing V-Wheel Scraper - the Scrapers are outward when attached to the Wing Scraper Brackets and centered between the Optional V-Wheels. 3. Loosen the Flanged Locknuts where the 1. Place the Wing Rollers on level ground. Assemble corresponding 1/2-13 U-Bolt will attach the Scraper 209842 Wing Scraper Brackets to the Wing Frame Tube to the Wing Scraper Brackets.
  • Page 51 TABLE OF CONTENTS ASSEMBLY Figure 2-30: Wing V-Wheel Scraper WFP52 - Optional F-661-2406 2-37...
  • Page 52 TABLE OF CONTENTS ASSEMBLY Acre Meter Installation - Bracket onto the Bearing Hanger and re-install existing Trunnion Bearing Bolts and Lock Washers. Optional Fully tighten. 5. Adjust the Acre Meter Switch so the center line of IMPORTANT Magnet Wheel and Pick-Up Switch are horizontally and vertically aligned with a maximum 1/8"...
  • Page 53 TABLE OF CONTENTS ASSEMBLY Figure 2-32: Acre Meter Installation F-661-2406 2-39...
  • Page 54 TABLE OF CONTENTS ASSEMBLY Float Lock Kit - Optional Float Lock Kits prevent the Wings from floating, which allows for the weight to transfer in softer field conditions. 1. Place Wing Float Stops into the Center Frame Wing Guide Slot. See Figure 2-33. 2.

  • Page 55: Tractor Preparation

    Chapter 3 TABLE OF CONTENTS Operation DANGER CAUTION DANGER Never allow anyone to ride on the Pulverizer at When transporting farm implements on public any time. Allowing a person to ride on the roads, it is the responsibility of the operator to machine can inflict serious personal injury or abide by state and local laws concerning wide death to that person.

  • Page 56: Operation

    TABLE OF CONTENTS OPERATION Attaching to the Tractor Hitch Lock The Hitch Lock prevents the hitch from moving in either DANGER DANGER the Spade and Clevis position. Note the different orientation of the Hitch Lock. Do not allow any bystanders to stand between the •...
  • Page 57 TABLE OF CONTENTS OPERATION Telescoping Drawbar The Telescoping Drawbar is designed to be operated with the Drawbar Extension retracted or extended. See Figure 3-3. The Drawbar must be extended when used as a companion equipment. Pin Retracted Position Position accordingly as drawbar is being extended or retracted Pin Extended...

  • Page 58: Hydraulic System

    TABLE OF CONTENTS OPERATION Hydraulic System DANGER DANGER Falling wings can cause injury or death. Stand IMPORTANT clear when wings are being raised or lowered. Unfold and lower the unit to the ground and relieve system pressure before attempting to repair, adjust, or disconnect components.

  • Page 59: General Operation

    TABLE OF CONTENTS OPERATION General Operation WARNING 1. Horsepower requirements will vary due to speed, Watch out for Overhead Electrical Wires and moisture, residue and types of soils. Local dealers other Overhead Obstructions when folding and can help in making recommendations for your unfolding Pulverizer Wings.

  • Page 60: Transport Lock

    TABLE OF CONTENTS OPERATION Transport Lock Clevis Pin,1/2 x 4-1/2 NOTE 20" Transport Lock is standard. 9" Transport Lock is used only when transporting on a trailer. Field to Road 1. Fold Wings completely and raise the machine fully. Wing Cylinders retracted and Lift Cylinder extended. 2.
  • Page 61 TABLE OF CONTENTS OPERATION 4. Close the Fold Shut-Off Valve completely, by backing off Jam Nut and turn Valve CW until it bottoms. Tighten Jam Nut. See Figure 3-11. Fold Shut-Off Jam Nut 5. Raise the Transport Axle to where the Center Roller Cartridge Axle and the Transport Axle Tires are both touching the Trailer Deck.
  • Page 62 TABLE OF CONTENTS OPERATION Table provided for general use. NOTES: F-661-2406...

  • Page 63: Scraper Adjustment

    TABLE OF CONTENTS OPERATION Scraper Adjustment 1. Unfold and Lower Pulverizer on a level surface. 2. Push Notched Wheels against welded Roller Axle End Stops. Add Clamp End Spacers if needed. See NOTE "Clamp End Spacers - Optional" on page 4-10. Notched Roller Wheel Scrapers are optional and 3.
  • Page 64 TABLE OF CONTENTS OPERATION Loup Acre Meter Kit - Total Acres Optional Press the /FUNC button until the “TOTAL” LED is lit. The digits indicate the acres covered since the total acre counter was cleared. IMPORTANT To clear the total acre count, press and hold the UP and Acre Meter is dust and splash resistant, under no DOWN buttons for two seconds.

  • Page 65: Changing The Password

    TABLE OF CONTENTS OPERATION Battery Replacement If the display shows “Ent”: You must enter your password using the UP and DOWN buttons. When your The battery operated acre counter uses 3 AA batteries. password is displayed, press the /FUNC button to test The “BATT”...
  • Page 66 TABLE OF CONTENTS OPERATION Transport 6. Before transporting: • Know the transport height and width of the unit 1. Check and follow all federal, state, and local before transport. Use caution when transporting requirements before transporting the Pulverizer. near bridge and power lines. 2.

  • Page 67: General Torque Specifications

    Chapter 4 TABLE OF CONTENTS Maintenance General Torque Specifications (rev. 4/97) This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used.

  • Page 68: Maintenance

    TABLE OF CONTENTS MAINTENANCE Hydraulic Fitting Torque Specifications 37 degree JIC, ORS, & ORB (REV. 10/97 This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used.
  • Page 69 TABLE OF CONTENTS MAINTENANCE Valve Assembly Torque Specifications When doing maintenance on the Valve Assembly: • Lubricate Valve Cartridge O-Rings • Install Valve Cartridges into the Manifold per the required torque specifications listed in the table below in Ft-Lbs. Manifold Identifier Part Number for 181527 Valve Figure 4-1: Valve Assembly - 181527 Torque Values...

  • Page 70: Lubrication Maintenance

    TABLE OF CONTENTS MAINTENANCE Fasteners NOTE The Single Lip Seals should point away from the Hub to Before operating your Brillion machine, check all keep contaminants out and allow grease to pass. hardware for tightness. Use the Tightening Torque Table as a guide.
  • Page 71 TABLE OF CONTENTS MAINTENANCE Grease Every 50 Hours Fold Hydraulic Cylinder Turnbuckle Grease Every 20 Hours Fold Hydraulic Cylinder Wing Hinge Pin Spherical Bearing Wheel Hub Repack Annually Trunnion Bearing Figure 4-3: Lubrication Intervals F-661-2406...

  • Page 72: Hydraulic System Maintenance

    TABLE OF CONTENTS MAINTENANCE Hydraulic System 4. Transport Lock is provided to hold the implement in a raised position. See Figure 3-7. Do not attempt to Maintenance perform any service work under the implement without first installing the transport lock. Before servicing any hydraulic component, unfold and lower IMPORTANT the implement to the ground and relieve all system...

  • Page 73: Warning Lamps

    TABLE OF CONTENTS MAINTENANCE Warning Lamps When plugging in the 7-Pin Connector: Amber Amber Red Lamp 1. Make sure the tractor has a good clean receptacle, Lamp Lamp free of dirt and corrosion. 2. Make sure the 7-Pin Connector is inserted ALL the way in.
  • Page 74 TABLE OF CONTENTS MAINTENANCE Roller Bearing Maintenance on the inside between the Stub Shaft shoulder and the Trunnion Bearing, all three can be on the outside If bearings are removed from frame refer to the steps between the Trunnion Bearing and Flat Top Washer, below to ensure minimum axle load is applied to prolong or a combination on either side, but all three must be bearing life.
  • Page 75 TABLE OF CONTENTS MAINTENANCE Roller Axle Assembly Clamp Tightening After an initial run of 5-10 hours, check the Roller Axle 1. Tighten the Clamp bolts evenly to achieve equal Assemblies to ensure that the wheels are tight to one spacing between clamp section. Torque to 75 Ft-Lbs. another.
  • Page 76 TABLE OF CONTENTS MAINTENANCE Clamp End Spacers - Kit Part Number 201442 - 3/4" Axle Spacer Kit Part Number 201443 - 1/2" Axle Spacer Optional Installation is the same for either kit. The Clamp End Spacer Kits are used to eliminate space 1.
  • Page 77 TABLE OF CONTENTS MAINTENANCE Kit Part Number 204831 - 1" Axle Spacer Kit Part Number 204832 - 1-1/4" Axle Spacer Kit Part Number 204833 - 1-1/2" Axle Spacer 1. Place the two Axle Spacers between the Axle Clamp and the Wheel Stop. 2.
  • Page 78 TABLE OF CONTENTS MAINTENANCE Acre Meter Troubleshooting 2. Verify that the magnet in the Magnet Wheel Assembly has not come out. 3. Place the Acre Meter display in “Calibrate” mode by IMPORTANT pressing the *(FUNC) key until the P-Word indicator is Acre Meter is dust and splash resistant, under no lit and then press the up/down arrow keys until the circumstances should this unit be submerged in any...

  • Page 79: Maintenance Chart

    TABLE OF CONTENTS MAINTENANCE Maintenance Chart Initial Run-In 20 Hrs 50 Hrs Annually Storage Fasteners, Wheel Hub Bolts Grease Wing Hinge Pins Grease Wing Cylinder Base Grease Spherical Bearing Grease Trunnion Bearings Grease Turnbuckle Grease Wheel Hubs Repack Wheel Hub Bearings Adjust Scraper (if equipped) Tighten Roller Wheels and Clamps ** Clean Machine...

  • Page 80: Troubleshooting

    TABLE OF CONTENTS MAINTENANCE Troubleshooting PROBLEM PROBABLE CAUSE SOLUTION Center Roller Bulldozes Wing Hinge Roller is not in the correct Adjust turnbuckle to located Wing Hinge position. Roller in the lower 1/3 of Guide Slot. Warning Lights do not work Connections loose.
  • Page 81 Chapter 5 TABLE OF CONTENTS Specifications Product Attributes WFP38 WFP40 Approximate Weight (WFPDS) 20" Notched Ductile Iron Wheels w/ Scrapers 11,000 lbs. (4,990 kg) 11,300 lbs. (5,126 kg) (WFPD) 20" Notched Ductile Iron Wheels w/o Scrapers 10,610 lbs. (4,813 kg) 10,896 lbs.

  • Page 82: Specifications

    TABLE OF CONTENTS SPECIFICATIONS Product Attributes WFP42 WFP44 WFP46 Approximate Weight (WFPDS) 20" Notched Ductile Iron Wheels w/ Scrapers 11,900 lbs. (5,398 kg) 12,200 lbs. (5,534 kg) 12,500 lbs. (5,670 kg) (WFPD) 20" Notched Ductile Iron Wheels w/o Scrapers 11,465 lbs. (5,200 kg) 11,750 lbs.
  • Page 83 TABLE OF CONTENTS SPECIFICATIONS Product Attributes WFP50 WFP52 Approximate Weight (WFPDS) 20" Notched Ductile Iron Wheels w/ Scrapers 12,857 lbs. (5,832 kg) 13,172 lbs. (5,975 kg) (WFPD) 20" Notched Ductile Iron Wheels w/o Scrapers 12,380 lbs. (5,615 kg) 12,680 lbs. (5,752 kg) (WFPO) 20"...
  • Page 84 TABLE OF CONTENTS SPECIFICATIONS Table provided for general use. NOTES: F-661-2406...
  • Page 85 Document Control Revision Log: Date Form # Improvement(s): Description and Comments 03/15/2013 F-661R1 Initial Release 02/14/2014 F-661R2 Added 50FT-52FT Models 08/01/2016 F-661R3 Changed to Spherical Wing Bearings 10/01/2017 F-661R4 Added V-Wheel Option for 50FT-52FT Models 03/2021 F-661-0321 ECN 46893 - Adjustments to Roller Assemblies Updated ISO logos to ISO 9001:2015 (Revised 04/2024) 06/2024 F-661-2406...
