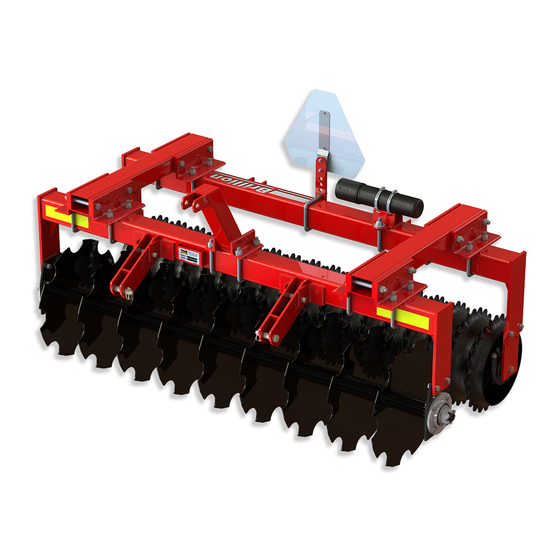

Summary of Contents for Landoll Brillion T6

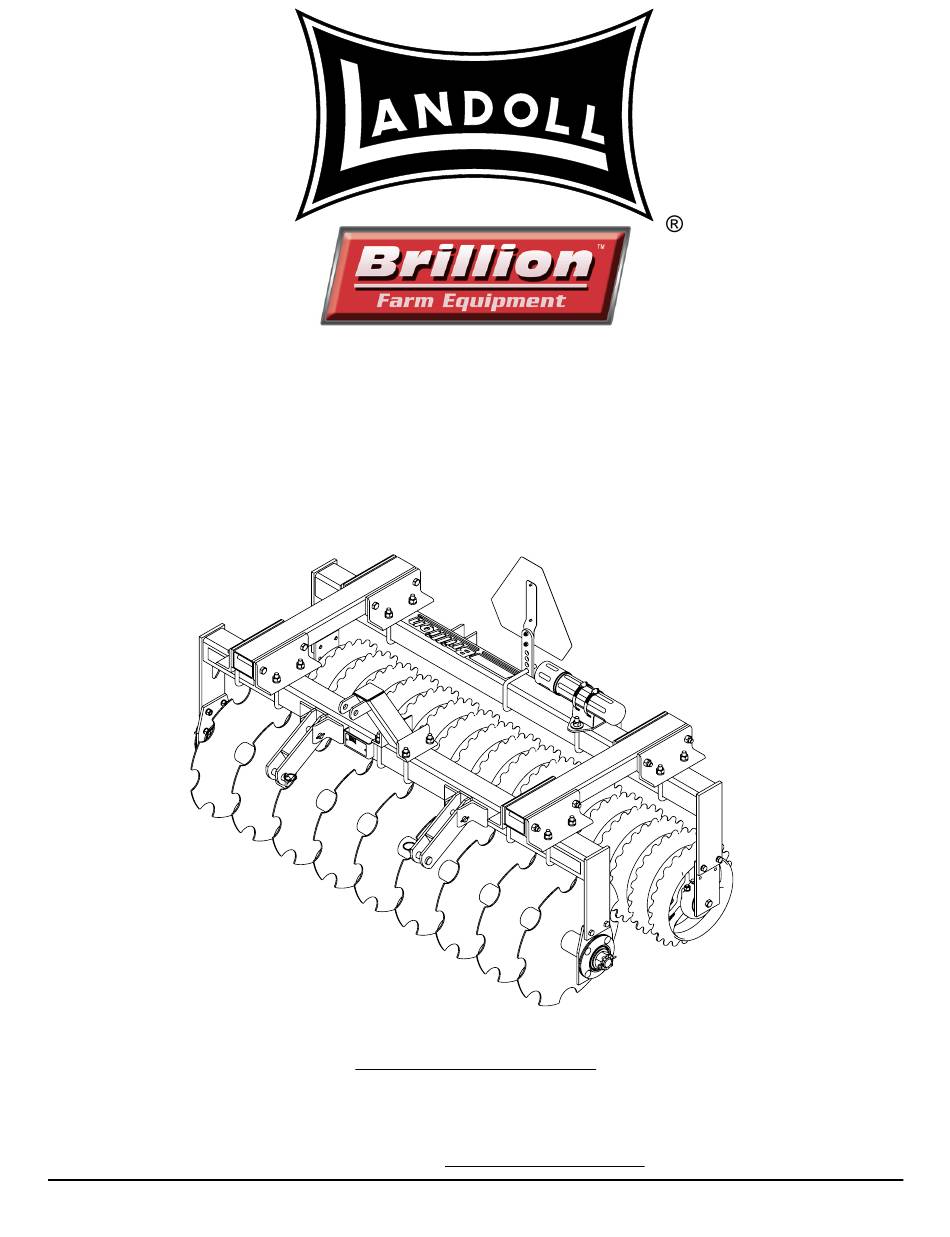

- Page 1 Operator’s Manual Repair Parts Catalog Seedbed Mulch Tucker T6, SMT6 and T8, SMT8 LANDOLL COMPANY, LLC 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM 200rev1006 6K600...
-
Page 3: Table Of Contents
Table of Contents Safety and Operation Information Introduction ..............1-1 Description of Unit . - Page 4 Illustrated Parts List Instructions for Ordering Parts ..........3-1 T6 Tucker Assembly .
-
Page 5: Safety And Operation Information
Failure to comply with this warning can result in warranty obligation unless each product is registered to the personal injury or death, damage within 10 days of retail purchase, using the Landoll implement or its components and inferior Company, LLC Ag Products on-line registration process. operation. -
Page 6: Safety
SAFETY AND OPERATION INFORMATION Examine safety decals and be sure you have the correct safety decals for the machine. See Figures 3-14 through 3-17. Order replacement decals through your Safety Brillion dealer. Federal law requires that you explain the safety and Keep these signs clean so they can be observed readily. -
Page 7: Attaching, Detaching And Storage
SAFETY AND OPERATION INFORMATION Keep clear of overhead power lines and other obstructions when transporting. Know transport height and width of your machine. Refer to transport dimensions page 2-4. Attaching, Detaching and Storage • Do not stand between the tractor and the implement when attaching or detaching the implement unless both are not moving. -
Page 8: Operation
This chapter will cover the basic operation and Clevis Pins are used for attaching the tractor’s lower links procedures for the Landoll Brillion Mulch Tucker. Be sure and a 3/4” pin is used to attach upper tractor link. to read and understand the Safety Procedures and Cautions starting on Page 1-1. - Page 9 SAFETY AND OPERATION INFORMATION Figure 1-3: Category 1 and 2 Free Link Figure 1-4: Quick Coupler Figure 1-5: Hitch Mounting Dimensions 6K600...
-
Page 10: Float Rear Roller
SAFETY AND OPERATION INFORMATION Float Rear Roller The Rear Roller can be floated so that it follows the soil contour. Remove the Rear Front Bolt from each Tube that connects the Front and Rear Frames. Figure 1-6: Floating Rear Roller 6K600... -
Page 11: Reversing Direction
Red Decal is visible from the rear on the Rear Reversing the Hitch Frame Tube. These can be ordered from your Landoll/Brillion Dealer as follows: 1. Move the upper and lower hitch brackets to the 528933 – Red Reflective Decal opposite end of the machine 528934 –... -
Page 12: Reversing The Coulter And Roller Assemblies
SAFETY AND OPERATION INFORMATION Reversing the Coulter and Roller 4. Attach Notched Roller Assembly to the Front Frame with 1/2-13 x 1-1/4 Bolts, Lockwashers and Nuts Assemblies 5. Attach Coulter Assembly to the Rear Frame with the 1. Support front and rear frames. 1/2-13 x 1-1/2 Bolts, Lockwashers and Nuts 2. -
Page 13: Field Operation
SAFETY AND OPERATION INFORMATION Field Operation 8. Transport during daylight hours when ever possible. Always use flashing warning lights, except where 1. Lower the Mulch Tucker to the ground and pull it a such use is prohibited by law. Make sure lights, few feet. - Page 14 SAFETY AND OPERATION INFORMATION Table provided for general use. NOTES: 1-10 6K600...
-
Page 15: Maintenance And Specifications
Chapter 2 Maintenance and Specifications Maintenance General Torque Specifications This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used. -
Page 16: Fasteners
MAINTENANCE AND SPECIFICATIONS Fasteners 1. Check axle and clamp for burrs on mating surfaces. 2. Remove end play between wheels by sliding wheels Before operating your Brillion machine, check all toward the fixed end of the axle. hardware for tightness. Use the Tightening Torque Table 3. -
Page 17: Storage
MAINTENANCE AND SPECIFICATIONS Storage 1. The service life of the Mulch Tucker will be extended by proper off-season storage practices. Prior to storing the unit, complete the following procedures: a. Completely clean the unit. b. Inspect the machine for worn or defective parts. Replace as needed. -
Page 18: Specifications
MAINTENANCE AND SPECIFICATIONS Specifications 6K600... -
Page 19: Illustrated Parts List
Illustrated Parts List Instructions for Ordering Parts ** Repair parts must be ordered through an authorized dealer ** DEALER INSTRUCTIONS FOR ORDERING PARTS FROM LANDOLL PARTS DISTRIBUTION CENTER PHONE #: 800-423-4320 OR 785-562-5381 FAX #: 888-527-3909 ORDER ONLINE: Dealer.landoll.com IDENTIFICATION PLATE See Figure 3-1 for the Identification Plate, which lists the model and serial number of the equipment. - Page 20 ILLUSTRATED PARTS LIST Figure 3-2: T6 Tucker Assembly 6K600...
-
Page 21: T6 Tucker Assembly
ILLUSTRATED PARTS LIST T6 Tucker Assembly ITEM PART NUMBER DESCRIPTION 9J841 6’ FRAME WELDMENT 9J847 HITCH WELDMENT 9J846 MAST 6K622 SMT6 COULTER ASSEMBLY (SEE FIGURE 3-11) 1-512-010007-09 NUT, HEX 1/2-13, ZP 1-861-010034-13 WASHER, LKG HLCL SPR, 1/2 1-654-010055-03 SCREW, 1/2-13UNC X 1-1/2CP, GR5 9J849 CLEVIS PIN (7/8 X 3-1/2) 1-557-010327... - Page 22 ILLUSTRATED PARTS LIST T8 Tucker Assembly Figure 3-3: T8 Tucker Assembly 6K600...
-
Page 23: T8 Tucker Assembly
ILLUSTRATED PARTS LIST T8 Tucker Assembly ITEM PART NUMBER DESCRIPTION 1-861-010034-15 WASHER,LKG,HLCL SPR,5/8 1-861-010034-13 WASHER, LKG HLCL SPR, 1/2 1-512-010007-09 NUT, HEX 1/2-13 ZP 1-512-010005-13 NUT, HEX SLFLKG GRB 5/8-11 1P401 MAST WLMT, SPECIAL 1-654-010061-15 SCREW, HEX CP 3/4-10UNC X 5, GR5 3J910 CLEVIS PIN (7/8 X 5-5/8) 5C077... - Page 24 ILLUSTRATED PARTS LIST SMT6 Assembly Figure 3-4: SMT6 Assembly 6K600...
-
Page 25: Smt6 Assembly
ILLUSTRATED PARTS LIST SMT6 Assembly ITEM PART NUMBER DESCRIPTION 9J841 6’ FRAME WELDMENT 9J839 WHEEL & AXLE ASSEM - 6’ (SEE FIGURE 3-6) 2K994 MOUNTING PLATE ASSEMBLY (SEE FIGURE 3-10) 1-654-010055-02 SCREW, 1/2-13UNC X 1-1/4CP, GR5 1-861-010034-13 WASHER, LKG HLCL SPR, 1/2 6K622 SMT6 COULTER ASSEMBLY (SEE FIGURE 3-11) 2K544... - Page 26 ILLUSTRATED PARTS LIST Figure 3-5: SMT8 Assembly 6K600...
-
Page 27: Smt8 Assembly
ILLUSTRATED PARTS LIST SMT8 Assembly ITEM PART NUMBER DESCRIPTION 6K982 8’ FRAME WELDMENT 9J840 WHEEL & AXLE ASSEM - 8’ (SEE FIGURE 3-6) 2K994 MOUNTING PLATE ASSEMBLY (SEE FIGURE 3-10) 1-654-010055-02 SCREW 1/2-13UNC X 1-1/4CP, GR5 1-861-010034-13 WASHER, LKG HLCL SPR, 1/2 6K975 8’... -
Page 28: Wheel And Axle Assembly
ILLUSTRATED PARTS LIST Wheel and Axle Assemblies Figure 3-6: Wheel and Axle Assemblies Wheel and Axle Assembly (Shown) ITEM PART NUMBER DESCRIPTION 9J839 WHEEL & AXLE ASSEM - 6FT 5J375 AXLE CLAMP ASSEM (SEE FIGURE 3-7) 8C988 16” NOTCHED WHEEL 9J875 PIPE AXLE ASM - 73 1/8”... -
Page 29: Axle Clamp Assembly
ILLUSTRATED PARTS LIST Axle Clamp Assembly Figure 3-7: Axle Clamp Assembly Axle Clamp Assembly ITEM PART NUMBER DESCRIPTION 5J375 AXLE CLAMP ASSEM 9D673 U-BOLT, 1/2-13 X 3-1/4 X 4-9/16 9C031 AXLE CLAMP 1-861-010034-13 WASHER, LKG HLCL SPR, 1/2 1-512-010007-09 NUT, HEX 1/2-13, ZP 1-654-010080-2 SCREW SET 1/2 X 1-1/4 SQHD CP PT 6K600... -
Page 30: Pipe Axle Assembly - 73 1/8
ILLUSTRATED PARTS LIST Pipe Axle Assemblies Figure 3-8: Pipe Axle Assemblies Pipe Axle Assembly - 73 1/8” ITEM PART NUMBER DESCRIPTION 9J875 PIPE AXLE ASM - 73 1/8” 9C182 OUTER BEARING HOUSING ASM (SEE FIGURE 3-9) 9J873 AXLE PIPE (NOT SOLD SEPARATELY ORDER ASSEMBLY TO REPLACE) Pipe Axle Assembly - 97 1/8”... -
Page 31: Bearing Housing Assembly, Outer
ILLUSTRATED PARTS LIST Bearing Housing Assembly, Outer Figure 3-9: Bearing Housing Assembly, Outer Bearing Housing Assembly, Outer ITEM PART NUMBER DESCRIPTION 9C182 OUTER BEARING HOUSING ASM 9C016 BEARING 9C014 OUTER BEARING HOUSING 6K600 3-13... -
Page 32: Mounting Plate Assembly
ILLUSTRATED PARTS LIST Mounting Plate Assembly Figure 3-10: Mounting Plate Assembly Mounting Plate Assembly ITEM PART NUMBER DESCRIPTION 2K994 MOUNTING PLATE ASSEMBLY 1-861-010034-15 WASHER, LKG, HLCL SPR, 5/8 101386 PIN, COTTER, 1/8 X 1 2K546 MOUNTING PLATE 4D529 SLOTTED NUT 5/8-11, ZP 9D669 STRAIGHT AXLE MOUNT 9D864... - Page 33 ILLUSTRATED PARTS LIST Table provided for general use. NOTES: 6K600 3-15...
- Page 34 ILLUSTRATED PARTS LIST Figure 3-11: 6ft Coulter Assembly 3-16 6K600...
-
Page 35: 6Ft Coulter Assembly
ILLUSTRATED PARTS LIST 6ft Coulter Assembly ITEM PART NUMBER DESCRIPTION 6K622 SMT6 COULTER ASSEMBLY 1-516-010001-27 NUT, HX SLOT 1-1/2-6, ZP 1-861-010032-32 WASHER FLAT ZP/CD 1-1/2 1-654-010070-03 SCREW, RDHD SQNK 1/2-13 X 1-1/2 3K045 BEARING FLANGE ZINC PLATED 3J131 BEARING 2K543 PLATE 1-861-010034-13 WASHER, LKG HLCL SPR, 1/2... - Page 36 ILLUSTRATED PARTS LIST 8ft Coulter Assembly Figure 3-12: 8ft Coulter Assembly 3-18 6K600...
-
Page 37: 8Ft Coulter Assembly
ILLUSTRATED PARTS LIST 8ft Coulter Assembly ITEM PART NUMBER DESCRIPTION 6K975 8’ COULTER ASSEMBLY 1-516-010001-27 NUT, HX SLOT 1-1/2-6, ZP 1-861-010032-32 WASHER FLAT ZP/CD 1-1/2 1-654-010070-03 SCREW, RDHD SQNK 1/2-13 X 1-1/2 3K045 BEARING FLANGE ZINC PLATED 3J131 BEARING 1-557-010362-65 PIN, COTTER 1/4 X 2-1/2 ZP 2K543 PLATE... -
Page 38: Smv Sign And Manual Canister
ILLUSTRATED PARTS LIST SMV Sign and Manual Canister Figure 3-13: SMV Sign and Manual Canister SMV Sign and Manual Canister ITEM PART NUMBER DESCRIPTION 2P151 SMV EMBLEM W/BRACKET 1-654-010049-05 SCREW, HX CP 5/16-18UNC X 1, GR5 1-861-010032-09 WASHER, FLAT 5/16 W ZP/CD 104032 NUT, HX SLF-LKG W/MYL 5/16-18 164678... -
Page 39: T6 Decals
ILLUSTRATED PARTS LIST Figure 3-14: T6 Decals T6 Decals ITEM PART NUMBER DESCRIPTION 528934 REFLECTOR - YELLOW 528933 REFLECTOR - RED 2P151 SMW W/BRACKET 4K036 DECAL-BRILLION (2 3/4 X 20) 6K600 3-21... -
Page 40: T8 Decals
ILLUSTRATED PARTS LIST T8 Decals Figure 3-15: T8 Decals T8 Decals ITEM PART NUMBER DESCRIPTION 528934 REFLECTOR - YELLOW 4K036 DECAL-BRILLION (2 3/4 X 20) 528933 REFLECTOR - RED 2P151 SMW W/BRACKET 3-22 6K600... -
Page 41: Smt6 Decals
ILLUSTRATED PARTS LIST Figure 3-16: SMT6 Decals SMT6 Decals ITEM PART NUMBER DESCRIPTION 528934 REFLECTOR - YELLOW 528933 REFLECTOR - RED 2P151 SMW W/BRACKET 4K036 DECAL-BRILLION (2 3/4 X 20) 6K600 3-23... -
Page 42: Smt8 Decals
ILLUSTRATED PARTS LIST SMT8 Decals Figure 3-17: SMT8 Decals SMT8 Decals ITEM PART NUMBER DESCRIPTION 528934 REFLECTOR - YELLOW 4K036 DECAL-BRILLION (2 3/4 X 20) 528933 REFLECTOR - RED 2P151 SMW W/BRACKET 3-24 6K600... - Page 43 Document Control Revision Log: Date Revision Improvement(s) Description and Comments Team Member 04/2016 New and Updated Drawings...
- Page 44 Equipment from Landoll Company, LLC is built to exacting standards ensured by ISO 9001 registration at all Landoll manufacturing facilities. Operator’s Manual Repair Parts Catalog Seedbed Mulch Tucker T6, SMT6 and T8, SMT8 Re-Order Part Number 6K600 LANDOLL COMPANY, LLC...
