EX12#-TFJ16-B
Setting (continue)
• Transmission speed setting switch : "B RATE"
Setting Transmission speed
0 156kbps
1 625kbps
Set transmission speed within the
2 2.5Mbps
range of 0 to 4.
3 5Mbps
4 10Mbps
• Station number setting switch : "STATION NO."
Set station number within the range of 01 to 64.
(Overlapped station number setting is not allowed.)
"×10" is to set the tens digit of a station number.
"×1" is to set the units digit of a station number.

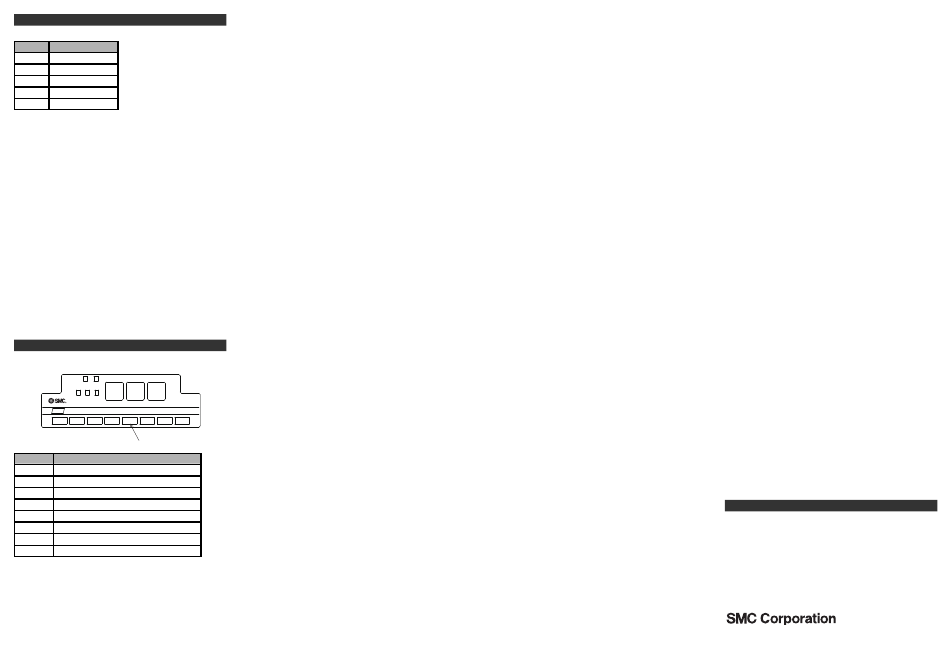

Internal Circuit and Wiring
Terminal block for external wiring
SERIAL UNIT
SV
MODEL
24V 0V +24V 24G DA DB DG FG
Terminal
Terminal Connect to
24V 24VDC power supply line for solenoid valve
0V 0VDC power supply line for solenoid valve
+24V 24VDC power supply line for communication
24G 0VDC power supply line for communication
DA Communication line DA
DB Communication line DB
DG Communication line DG
FG Grounding conductor
* Terminal screws are M3 thread.
