UNIS THE ADDAMS FAMILY Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THE ADDAMS FAMILY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNIS THE ADDAMS FAMILY

Summary of Contents for UNIS THE ADDAMS FAMILY

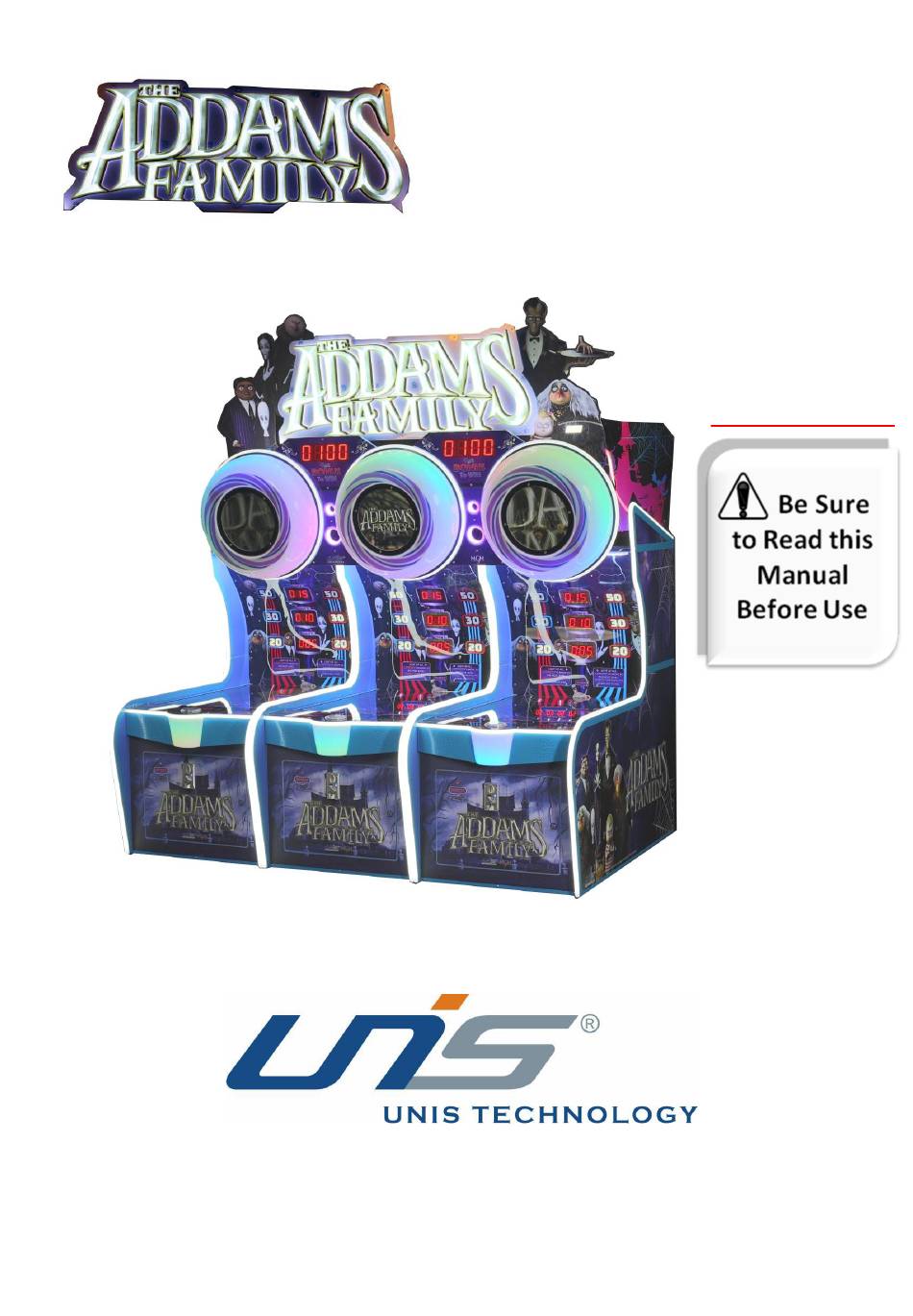

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Addams Family LCD GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Addams Family LCD GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................19 6.

  • Page 4: Important Safety Instructions

    Addams Family LCD GMP Manual Thank you for purchasing Addams Family LCD GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Addams Family LCD GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Addams Family LCD GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 800W Max. Power consumption: 900W Dimension: D1610*W2310*H2650 mm D63.38*W90.94*H104.33 in Weight：Approximately 630kg/1388.91 lb Model No.:A-513 Part No.: A120 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Addams Family LCD GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture A120-0808-00 SJPJ-10 Manual A120-0807-00 SJPJ-09 Power cord A120-0809-00 SJPJ-11 A120-0804-00 SJPJ-05 Fuse A120-0801-00...

  • Page 8: Part Name

    Addams Family LCD GMP Manual 3. PART NAME Key Components Marquee Display Round monitor Play field Play instruction Button 05/17/2024...

  • Page 9: Set Up & Installation

    Addams Family LCD GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...

  • Page 10: Machine Installation

    Addams Family LCD GMP Manual 4.3 Machine Installation Step 1 Locate Bottom cabinet. Loosen screws on the upper side. Step 2 Place Upper cabinet to the Bottom cabinet. Utilize screws to secure. Upper cabinet Screw Bottom cabinet 05/17/2024...
  • Page 11 Addams Family LCD GMP Manual Step 3 Route these connectors to the bottom cabinet through the hole. Connect the connectors as shown below. Step 4 Place Side fixing plate to the Cabinet. Utilize screws to secure. Note: It is the same installation(Step 1-4) of the other side. Side fixing plate 05/17/2024...
  • Page 12 Addams Family LCD GMP Manual Step 5 Place 3 cabinets together. Cabinet Cabinet Step 6 Open the front door. Utilize screws to secure 3 cabinets. Screw 05/17/2024...
  • Page 13 Addams Family LCD GMP Manual Step 7 Utilize screws to secure 3 cabinets. Screw Screw Step 8 Route the L&R cabinet connector to the middle cabinet. Connect the connectors as shown below. 05/17/2024...
  • Page 14 Addams Family LCD GMP Manual Step 9 Install L&R side upper plate to the top of the cabinet. Utilize fixing plate and screws to secure. L&R side upper plate Screws L&R side upper plate Screws 05/17/2024...
  • Page 15 Addams Family LCD GMP Manual Step 10 Install Bonus assy, to the top of the marquee. Connect the connectors. Note: Three monitor assy connectors need to connect. Bonus assy Connector Step 11 Install Logo acrylic and L&R character acrylic. Connect the connectors. L&R acrylic LOGO acrylic L&R acrylic...
  • Page 16 Addams Family LCD GMP Manual LOGO marquee connector position: Connector Step 12 Install Side PC to the fixing plate. Side PC Fixing plate 1 Fixing plate 2 05/17/2024...
  • Page 17 Addams Family LCD GMP Manual Step 13 Install side PC. Step 14 Install 4 spotlights as shown below. 05/17/2024...
  • Page 18 Addams Family LCD GMP Manual 4 spotlights positions: Notice: Bonus assy, 2 spotlights have been installed before shipping,no need to install again. Bonus spotlight Bonus spotlight Step 15 Route the spotlight connectors to the L&R cabinet inside through the hole. Connect the connector.
  • Page 19 Addams Family LCD GMP Manual Step 16 Route the LOGO marquee connectors to the Left cabinet inside through the hole and connect. Spotlight connector LOGO marquee Left cabinet Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.

  • Page 20: How To Play

    Addams Family LCD GMP Manual 5. HOW TO PLAY 5.1 Insert coins or Tap/Swipe card to play. 5.2 Rotate to aim and Tap button to shoot the tokens. 5.3 Shoot tokens through the gates to earn points, and light up the character. 5.4 Light up each ADDAMS to move up the levels and win more points.

  • Page 21: Game Option

    Addams Family LCD GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Volume Coins Tickets Settings button to enter the setting menu. Bookkeeping (+) Settings Exit Test(-) Options Description Settings Enter Setting menu/Select options/Confirm Exit...
  • Page 22 Addams Family LCD GMP Manual 6.2 Game Settings Options Adjustable Meanings Default Note Display value Refer to manual 6.2.1 Tickets Tokens per game 1-20 Payout Do not recommend to change Scores per ticket 1-10 here. Default is 1 score 1 ticket. Refer to manual 6.2.1 Tickets Ticket patterns Payout...
  • Page 23 Addams Family LCD GMP Manual 6.2.1 Tickets Payout Default Tickets Payout is under Condition of 1 COIN 2 TOKENS & Display Bonus: 500 Pattern 2 (about 20-28 tickets payout per coin) Left Gate holes Right Gate holes Display Bonus Level 3 bonus: 50 tickets Level 3 bonus: 50 tickets Thing Bonus: 150 Level 2 bonus: 30 tickets...
  • Page 24 Addams Family LCD GMP Manual Pattern 3 (about 13-18 tickets payout per coin) Left Gate holes Right Gate holes Display Bonus Level 3 bonus: 50 tickets Thing Bonus: 200 Level 3 bonus: 50 tickets Level 2 bonus: 30 tickets Thing Bonus: 150 Level 2 bonus: 30 tickets Level 1 bonus: 20 tickets Level 1 bonus: 20 tickets...
  • Page 25 Addams Family LCD GMP Manual Under Condition of 1 COIN 1 TOKEN & Display Bonus: 800 Pattern 1 (about 6-9 tickets payout per coin) Left Gate holes Right Gate holes Display Bonus Level 3 bonus: 50 tickets Thing Bonus: 100 Level 3 bonus: 50 tickets Level 2 bonus: 30 tickets Level 2 bonus: 30 tickets...
  • Page 26 Addams Family LCD GMP Manual Pattern 5 (about 20-25 tickets payout per coin) Left Gate holes Right Gate holes Display Bonus Level 3 bonus: 50 tickets Thing Bonus: 300 Level 3 bonus: 50 tickets Level 2 bonus: 30 tickets Thing Bonus: 200 Level 2 bonus: 30 tickets Level 1 bonus: 20 tickets Level 1 bonus: 20 tickets...
  • Page 27 Addams Family LCD GMP Manual Pattern 4 (about 18-22 tickets payout per coin) Left Gate holes Right Gate holes Display Bonus Level 3 bonus: 50 tickets Thing Bonus: 300 Level 3 bonus: 50 tickets Level 2 bonus: 30 tickets Thing Bonus: 200 Level 2 bonus: 30 tickets Level 1 bonus: 20 tickets Level 1 bonus: 20 tickets...
  • Page 28 Addams Family LCD GMP Manual Pattern 3 (about 17-22 tickets payout per coin) Left Gate holes Right Gate holes Display Bonus Level 3 bonus: 50 tickets Thing Bonus: 200 Level 3 bonus: 50 tickets Level 2 bonus: 30 tickets Thing Bonus: 150 Level 2 bonus: 30 tickets Level 1 bonus: 20 tickets Level 1 bonus: 20 tickets...
  • Page 29 Addams Family LCD GMP Manual Pattern 2 (about 16-22 tickets payout per coin) Left Gate holes Right Gate holes Display Bonus Level 3 bonus: 50 tickets Thing Bonus: 150 Level 3 bonus: 50 tickets Level 2 bonus: 30 tickets Thing Bonus: 100 Level 2 bonus: 30 tickets Level 1 bonus: 20 tickets Level 1 bonus: 20 tickets...
  • Page 30 Addams Family LCD GMP Manual If 1 COIN to shoot 4 TOKENS, then each Pattern’s evaluated tickets payout value*4 If 1 COIN to shoot 5 TOKENS, then each Pattern’s evaluated tickets payout value*5 6.3 Test: Testing Machine Options Meanings Description Shoot tokens test Press Start button to test Ticket out test...

  • Page 31: Troubleshooting

    Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Card reader not The connector is loose. Check connector. working Card reader fault.
  • Page 32 Addams Family LCD GMP Manual Display Meanings Possible Cause Recommended action Coins enter the hole, which Replace the hole The hole sensor is faulty. cannot be detected. sensor. The hole flash automatically There is a coin stuck in Open the back door to and tickets out.
  • Page 33 Addams Family LCD GMP Manual 7.2 How To Download New Program & Update Note: Please contact with UNIS before update Step 1. Copy “Downloader” software to the desk; Step 2. Double click the“Downloader” software, will see below interface, click circled words which is to connect the programmer;...
  • Page 34 Addams Family LCD GMP Manual Step 4. Connect the programmer with computer via connection cable, press No.2 blue button for several seconds until below image is showed on screen; Step 5. Click “Get image file from cloud”, download complete; 05/17/2024...
  • Page 35 Addams Family LCD GMP Manual Step 6. Powering on programmer with an adapter or charger, connect it with main board via programming cable as below picture shows, No.1 and No.2 blue button is to select correct program, No.3 blue button is to do programming. 7.3 How To Replace Playfield Glass Step 1 Power off the machine.

  • Page 36: Maintenance & Inspection

    Addams Family LCD GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 37: Overall Construction

    Addams Family LCD GMP Manual 9. OVERALL CONSTRUCTION 9.1 Playfield Glass Part No. Code No. Name A120-0152-00 XSY20240419-052 Glass fixing plate 1 A120-0736-00 ZQ-YDS-36 Rubber round tube A120-0727-00 ZQ-YDS-27 Glass A120-0154-00 XSY20240419-054 Glass front support plate A120-0151-00 XSY20240419-051 Glass fixing plate 2 9.2 Control Panel Assembly 05/17/2024...
  • Page 38 Addams Family LCD GMP Manual Part No. Code No. Name A120-0713-00 ZQ-YDS-13 Button A120-0603-00 YH-YDS-003 Control panel acrylic A120-0147-00 XSY20240419-047 Control panel plate A120-0620-00 YH-YDS-020 Control panel white plastic A A120-0621-00 YH-YDS-021 Control panel white plastic B(L&R) A120-0621-00 YH-YDS-021 Control panel white plastic B(L&R) A120-0622-00 YH-YDS-022 Control panel white plastic C...
  • Page 39 Addams Family LCD GMP Manual 9.4 Background Assembly Part No. Code No. Name A120-0614-00 YH-YDS-014 L back PC A120-0643-00 YH-YDS-014 R back PC A120-0101-00 XSY20240419-001 L PVC fixing plate A120-0179-00 XSY20240419-001 R PVC fixing plate A120-0102-00 XSY20240419-002 L PVC fixing plate 2 A120-0180-00 XSY20240419-002 R PVC fixing plate 2...
  • Page 40 Addams Family LCD GMP Manual 9.5 Belt Assembly Part No. Code No. Name A120-0723-00 ZQ-YDS-23 Belt with decal A120-0207-00 XZH240419007 Motor front rolling nylon A120-0209-00 XZH240419009 Mid rolling nylon A120-0208-00 XZH240419008 Back rolling nylon A120-0722-00 ZQ-YDS-22 Bearing(204) A120-0721-00 ZQ-YDS-21 Bearing(203) A120-0175-00 XSY20240419-075 Belt base fixing bracket...
  • Page 41 Addams Family LCD GMP Manual 9.6 Up-coin Assembly Part No. Code No. Name A120-0712-00 ZQ-YDS-12 Up-coin motor A120-0738-00 ZQ-YDS-38 Spring A120-0204-00 XZH240419004 White nylon A120-0201-00 XZH240419001 Bearing base plate A120-0715-00 ZQ-YDS-15 Bearing(6000ZZ) A120-0205-00 XZH240419005 Base plate Cu A120-0165-00 XSY20240419-065 Motor fixing bracket A120-0735-00 ZQ-YDS-35 L&R motor...
  • Page 42 Addams Family LCD GMP Manual 9.7 Upper Monitor Assembly Part No. Code No. Name A120-0105-00 XSY20240419-005 Upper monitor back fixing cover 1 A120-0106-00 XSY20240419-006 Upper monitor back fixing cover 2 A120-0118-00 XSY20240419-018 Angle U type plate A120-0117-00 XSY20240419-017 Fixing plate A120-0104-00 XSY20240419-004 Back fixing plate...
  • Page 43 Addams Family LCD GMP Manual 9.8 Upper Monitor Connect Assembly Part No. Code No. Name A120-0549-00 20240413D049 Speaker board A120-0111-00 XSY20240419-011 Speaker box angle plate A120-0115-00 XSY20240419-015 Speaker box angle plate 2 A120-0706-00 ZQ-YDS-06 Speaker A120-0116-00 XSY20240419-016 Display cover plate A120-0301-00 ZJ240419-001 Bonus display...
  • Page 44 Addams Family LCD GMP Manual 9.9 Wooden Case Assembly 05/17/2024...
  • Page 45 Addams Family LCD GMP Manual Part No. Code No. Name A120-0541-00 20240413D041 R bottom case R side board A120-0540-00 R bottom case L side board 20240413D040 A120-0536-00 20240413D036 Mid bottom case R side board A120-0535-00 20240413D035 Mid bottom case L side board A120-0502-00 20240413D002 R bottom case R side board...
  • Page 46 Addams Family LCD GMP Manual 05/17/2024...
  • Page 47 Addams Family LCD GMP Manual Part No. Code No. Name A120-0505-00 20240413D005 Bottom case back door board A120-0507-00 Bottom case base board 20240413D007 A120-0516-00 20240413D016 Front door A120-0515-00 20240413D015 Front door frame board A120-0514-00 20240413D014 Console connect back board A120-0517-00 20240413D017 Hinge board A120-0520-00...
  • Page 48 Addams Family LCD GMP Manual Part No. Code No. Name A120-0545-00 20240413D045 R heighten board A120-0546-00 20240413D046 L heighten board A120-0547-00 20240413D047 Upper monitor fixing board A120-0548-00 20240413D048 Speaker fixing board A120-0549-00 20240413D049 Speaker board Part No. Code No. Name 20240413D050 A120-0550-00 LOGO marquee fixing board...
  • Page 49 Addams Family LCD GMP Manual Part No. Code No. Name A120-0538-00 20240413D038 Mid upper case R side board A120-0537-00 20240413D037 Mid upper case L side board A120-0539-00 20240413D039 Mid upper case top board A120-0544-00 20240413D044 R upper case top board A120-0543-00 20240413D043 R upper case R side board...
  • Page 50 Addams Family LCD GMP Manual 9.10 Decals Part No. Code No. Name A120-0643-00 YH-YDS-014 R back PC A120-0613-00 YH-YDS-013 R character PC A120-0601-00 YH-YDS-001 LOGO character A120-0602-00 YH-YDS-002 LOGO marquee back PC A120-0612-00 YH-YDS-012 L character PC A120-0614-00 YH-YDS-014 L back PC A120-0607-00 YH-YDS-007 Upper monitor round cover...
  • Page 51 Addams Family LCD GMP Manual 05/17/2024...
  • Page 52 Addams Family LCD GMP Manual Part No. Code No. Name A120-0603-00 YH-YDS-003 Control panel acrylic A120-0632-00 YH-YDS-032 R side decal A A120-0634-00 YH-YDS-034 R side decal B A120-0636-00 YH-YDS-036 R side decal C A120-0723-00 ZQ-YDS-23 Belt with decal A120-0631-00 YH-YDS-031 L side decal A A120-0633-00 YH-YDS-033...

  • Page 53: Electrical Components

    Addams Family LCD GMP Manual 9.11 Electrical Components Part No. Code No. Name A120-0401-00 YDS-GMP-LED01 Round white light A120-0402-00 YDS-GMP-LED02 Bottom cabinet L&R side white light A120-0403-00 YDS-GMP-LED03 Top side white light A120-0404-00 YDS-GMP-LED04 Mid cabinet L&R side white light A120-0405-00 YDS-GMP-LED05 Panel mid colorful light...
  • Page 54 Addams Family LCD GMP Manual Part No. Code No. Name A120-0735-00 ZQ-YDS-35 L&R motor A120-0716-00 ZQ-YDS-16 White wheel A120-0717-00 ZQ-YDS-17 Black wheel A120-0718-00 ZQ-YDS-18 L&R sensor A120-0712-00 ZQ-YDS-12 Up-coin motor 05/17/2024...
  • Page 55 Addams Family LCD GMP Manual Part No. Code No. Name A120-0704-00 ZQ-YDS-04 Red button A120-0705-00 ZQ-YDS-05 Counter Ticket dispenser A120-0711-00 ZQ-YDS-11 A120-0709-00 ZQ-YDS-09 Coin mechanism 05/17/2024...
  • Page 56 Addams Family LCD GMP Manual Part No. Code No. Name A120-0731-00 ZQ-YDS-31 Power supply(12V) A120-0733-00 ZQ-YDS-33 Power supply(24V+5V) A120-0732-00 ZQ-YDS-32 Power supply 2(12V) Goal sensor board A120-0309-00 ZJ240419-009 A120-0310-00 ZJ240419-010 Main control board A120-0306-00 ZJ240419-006 Motor drive board A120-0728-00 ZQ-YDS-28 Relay A120-0707-00 ZQ-YDS-07...
  • Page 57 Addams Family LCD GMP Manual 05/17/2024...
  • Page 58 Addams Family LCD GMP Manual Part No. Code No. Name A120-0304-00 ZJ240419-004 Level display A120-0305-00 ZJ240419-005 Level light board A120-0303-00 ZJ240419-003 Thing display A120-0302-00 ZJ240419-002 Character light board A120-0309-00 ZJ240419-009 Goal sensor board A120-0734-00 ZQ-YDS-34 Belt motor A120-0730-00 ZQ-YDS-30 Filter A120-0719-00 ZQ-YDS-19 Door interlock...
  • Page 59 Addams Family LCD GMP Manual Part No. Code No. Name A120-0713-00 ZQ-YDS-13 Button A120-0706-00 ZQ-YDS-06 4'' speaker A120-0307-00 ZJ240419-007 Control panel display(coin) A120-0308-00 ZJ240419-008 Control panel display(ticket) 3 A120-0301-00 ZJ240419-001 BONUS display www.unistechnology.com 05/17/2024...
