UNIS Lane Master Operation Manual

Hide thumbs Also See for Lane Master:

Advertisement

Table of Contents

IMPORTANT
www.universal-space.com
NOTE: Some portions of assembly may require additional assistance.
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lane Master and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS Lane Master

Summary of Contents for UNIS Lane Master

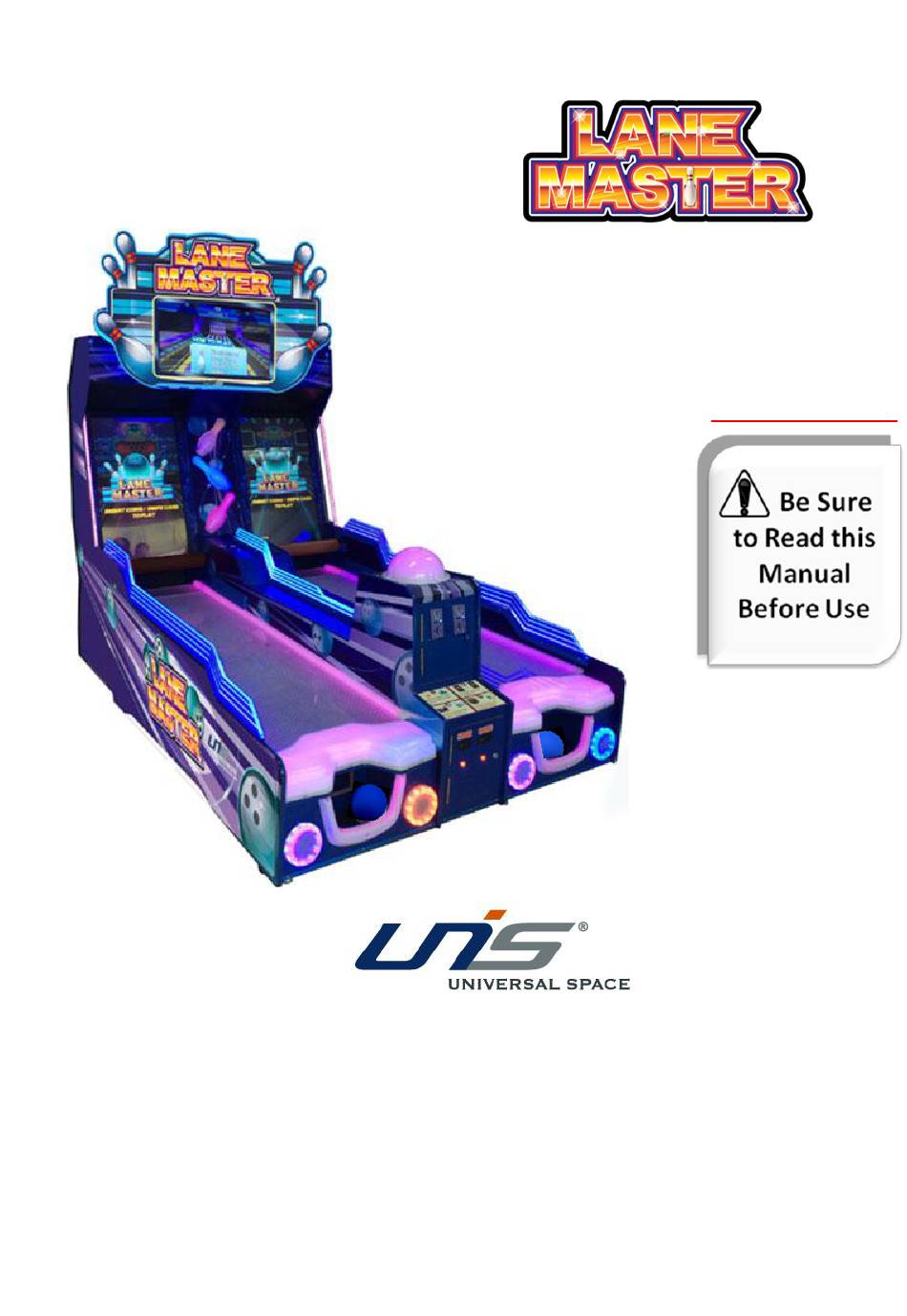

  • Page 1 IMPORTANT www.universal-space.com NOTE: Some portions of assembly may require additional assistance. Operation Manual...
  • Page 2 Lane Master Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com 10/16/2019...

  • Page 3: Table Of Contents

    Lane Master Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ..............3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................9 4. SET UP & INSTALLATION ..................10 5. HOW TO PLAY ...................... 17 6. GAME OPTION ..................... 18 7.

  • Page 4: Important Safety Instructions

    Lane Master Manual Thank you for purchasing Lane Master. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Lane Master Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Lane Master Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz Min. Power consumption: 520W Max. Power consumption: 580W Dimension: W65×D116×H105 in W1650×D2921×H2651 (mm) Weight：Approximately 1150 lb Part No: L113 Model No: C-489 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Lane Master Manual This machine will be divided into two parts during transportation. Back Cabinet: W65×D28.8×H85.7 in W1650×D720×H2148 mm Ally part: W64.34×D87.21×H40.12 in W1650×D2235×H1030 mm Note: Game specifications are subject to change without notice. 10/16/2019...

  • Page 8: Contents Of The Accessory Kit

    Lane Master Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture 1 L113-801-000 25300172002 2 L113-802-000 25300171002 3 L113-803-000 23301010020 Power cord 4 L113-804-000 41440000173...
  • Page 9 Lane Master Manual 2. Component & hardware for installation. Part No. Code Name Picture Cross recessed hexagon screw 8 L113-808-000 20101020145 9 L113-809-000 20211605037 Fixed connected rod Hexagon flat round head 20101040007 screws 10 L113-810-000 26000053000 Black Washer 20113000055 C flat washer...

  • Page 10: Part Name

    Lane Master Manual 3. PART NAME Key Components Marquee Assy. 32” display 43” LED Display Back cabinet Lane Coin Assy. Lane with coin and ticket dispenser Ticket dispenser Ball exit 10/16/2019...

  • Page 11: Set Up & Installation

    Lane Master Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 12 Lane Master Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 13 Lane Master Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Use for Phillips screwdriver For Marquee Installation& Connect Wrench Lane Assembly Connect Lane Assembly Allen hexagon wrenches & Display Assembly 4.4.1 Marquee Installation Step 1 Lift the marquee into place and Step 2 Attach support bracket.
  • Page 14 Lane Master Manual Step 3 Install the bolts as indicated in the green area. Part No. Code No. Name Picture Cross recessed hexagon screw L113-808-000 20101020145 L113-809-000 20211605037 Fixed connected rod Cross recessed Cross recessed hexagon screw hexagon screw (4 pcs)
  • Page 15 Lane Master Manual 4.4.2 Connect Lane Assembly Part No. Code No. Name Picture Cross recessed hexagon 20104023002 screw 1 L113-813-000 20113040060 C flat washer Step 1 4 pcs Open the coin door and the ticket door to bolt the lanes together utilizing the hardware indicated by the red arrows.
  • Page 16 Lane Master Manual 4.4.3 Install the Bowling light cover Install Bowling light cover with four screws. Part No. Code No. Name Picture 20101040007 Hexagon flat round head screws 26000053000 Black Washer L113-810-000 20113000055 C flat washer L113-806-000 20611605003A Bowling light cover 4.4.4 Connect Lane Assembly &...
  • Page 17 Lane Master Manual Step 3 Align the back cabinet with the lanes. Alignment hole Back of the Lane Assembly Step 4 Use the Allen hexagon wrench (Provided) to lock the back box with the lanes as indicated. Step 5 Lower leg levelers into place for initial leveling of the back box and the lanes if the floor is uneven.

  • Page 18: How To Play

    Lane Master Manual 5. HOW TO PLAY 5.1 Insert coin(s)/Swipe/ tap card to play. 5.2 For competition, insert coin(s)/swipe/ tap card to active each lane. 5.3 Roll the ball down the lane to hit the pins. 5.4 Enjoy your entertainment bowling experience! 5.5 Game scenes...

  • Page 19: Game Option

    Lane Master Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter into the setting menu. Settings Test Reset 6.2 Setting menu 6.2.2 Basic Setting 6.2.1 Main menu...
  • Page 20 Lane Master Manual 6.2.4Input Test OFF/ON 1P Coin 2P Infrared1 OFF/ON OFF/ON 1P Lane Sensor 2P Infrared2 OFF/ON OFF/ON 1P Ball Detect 2P Infrared3 OFF/ON OFF/ON 1P Ball Signal 2P Infrared4 OFF/ON 0/100 1P Ball Location 2P Infrared5 OFF/ON 0/100...
  • Page 21 Lane Master Manual 6.2.5 Output Test 6.2.6 Game Reset Factory Restore CANCEL/CLEAR 1P Ball Release Test Reset Basic Setting CANCEL/CLEAR 2P Ball Release Test Reset Customized Setting CANCEL/CLEAR 1P Ticket Test Clear All Records CANCEL/CLEAR 2P Ticket Test Clear Owed Ticket...
  • Page 22 Lane Master Manual 6.3 Display Advertisement Operation In Version 1.05 or higher version for Lane Master, operator can put advertisement to the machine and display on the top monitor. Please note that the advertisement video format has to be AVI.
  • Page 23 Lane Master Manual 3.Click” GameDGho” 4.Click ”Videos” 5.Copy the AVI file from memory stick into “Videos” folder. Step 3 Unplug the memory stick. Power off and restart the machine. The advertisement video will be shown on the top screen. If the video format is not AVI. It will show an error as below.
  • Page 24 Lane Master Manual 6.4 Linking setting Kits for linking Part No. Name Picture Note Network L113-807-000 For two sets linking cable(5M) Switch For three sets linking For two sets linking: Step 1 For two sets linking, please connect the network ports of two machines with Network cable(5M).
  • Page 25 Lane Master Manual For three sets linking: Step 1 For three sets linking, please Step 2 For three machines linking, please For three sets linking: connect the Network cable (5M) to the connect all the network cables (5M) to the network port on the power outlet.

  • Page 26: Trouble Shootings

    Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. The connector is loose. Check connector. Card reader not working Card reader fault.
  • Page 27 Lane Master Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose ports of the PC or IO IO board and PC are loose.
  • Page 28 Lane Master Manual Display Possible Cause Recommended action Loose connection of Check and reconnect the loose the send ball cables of send ball assembly. assembly. Check the connection, if the Send ball assembly problem remains unresolved, is broken. please call the service department for assistance.

  • Page 29: Maintenance & Inspection

    Lane Master Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.
  • Page 30 Lane Master Manual 8.3.2 Disassemble the lane sensor Loosen 5 screws to remove the sensor cover. Sensors can be changed individually or you can remove the screws at two sides to take out the whole sensor mounting plate to change the sensor.
  • Page 31 Lane Master Manual If liquid poured on the front plastic, there is a hose under the front plastic which can drain the liquid out of the cabinet. The hose 8.5 Display maintenance 8.5.1 Disassemble displays Loosen 4 metal plates in order 1-2-3-4 NOTE: PLEASE UTILIZE ASSISTANCE FOR THIS PROCEDURE.
  • Page 32 Lane Master Manual Metal plate 1 (3 screws) Metal plate 2&3 (2 screws) Metal plate 4 (2 screws) Note: Please hold the plastic of the display when removing metal plate 4 or it may drop down. Please reassemble display part reversed order.
  • Page 33 Lane Master Manual 8.5.3 Cleaning display After disassemble the display part, clean the display with approved cleaning product. 8.5.4 Disassemble Lane Plate Before processing with disassembly assure you have the following tools. Name Picture Phillips screwdriver 1) Remove the bowling light cover.
  • Page 34 Lane Master Manual 2-3) Remove lane board. Remove screws on surface on lane board. Remove screws on the metal. 10/16/2019...

  • Page 35: Overall Construction

    Lane Master Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name L113-003-000 29911605D009 Marquee Assy. L113-142-000 20104020002 Cross recessed hexagon screw kit 10 2 L113-001-000 29911605D001 Display Assy. 3 L113-002-000 29911605A008 Lane Assy. 10/16/2019...
  • Page 36 Lane Master Manual 9.2 Display Assy. Part No. Code No. Name L113-234-000 20611605028 Light plastic fixed plate L113-102-000 20101000036 Cross recessed pan head screw set 12 L113-245-000 20611605002 Light plate L113-108-000 20101010006 Hexagon flat round head screws 3 L113-004-000 29911605D002 Display Wood frame Assy.
  • Page 37 Lane Master Manual Part No. Code No. Name L113-237-000 20211605016 Damping foam fixed bar L113-102-000 20101000036 Cross recessed pan head screw set 8 L113-233-000 20611605016 Side light board L113-131-000 20101108019 Hexagon flat round head screws L113-235-000 20611605017 Side light board 2...
  • Page 38 Lane Master Manual Part No. Code No. Name 1 L113-321-000 26000064000 U disk fixed plate 2 L113-318-000 26000055000 Dongle holder L113-441-000 20311605D012 PC connected board L113-315-000 26000012000 Shake proof screw A L113-320-000 26000061000 PC power fixed bracket L113-250-000 20211605076 Video card fixed bar...
  • Page 39 Lane Master Manual 9.3 Display Frame Part No. Code No. Name 1 L113-214-000 20211605001 Marquee reinforced board 2 L113-221-000 20211605042 Up mid connected plate 3 L113-218-000 20211605041 Mid connected plate 2 L113-219-000 20211605003 Rear R Lane reinforced board L113-140-000 20104000002 Cross recessed hexagon screw kit 16...
  • Page 40 Lane Master Manual Part No. Code No. Name 1 L113-412-000 20311605D069 Front up board 2 L113-411-000 20311605D055 Top board 3 L113-410-000 20311605D054 Fan board 4 L113-409-000 20311605D053 Rear up board 5 L113-438-000 20311605D011 Up door fixed plate 6 L113-434-000 20311605D064...
  • Page 41 Lane Master Manual Part No. Code No. Name 14 L113-425-000 20311605D008 Lane board 15 L113-402-000 20311605D001 Front bed board 16 L113-415-000 20311605D004 Rear Lane bed board 2 17 L113-417-000 20311605D046 Rear Lane board 18 L113-416-000 20311605D005 Rear Lane back board 2...
  • Page 42 Lane Master Manual Part No. Code No. Name 1 L113-431-000 20311605D062 Top mid connected board 2 L113-428-000 20311605D059 Up mid connected board 3 L113-429-000 20311605D060 Down mid connected board 1 4 L113-401-000 20311605D067A Side board 5 L113-430-000 20311605D061 Bottom short connected plate 1...
  • Page 43 Lane Master Manual 9.4 Lane Assy. Part No. Code No. Name L113-277-000 20211605026 Sensor cover L113-108-000 20101010006 Hexagon flat round head screws L113-007-000 29911605012 L sensor Assy. L113-116-000 20101030018 Cross recessed sunk head screw L113-009-001 29911605A008B Ball out system L113-119-000 20101030179...
  • Page 44 Lane Master Manual Part No. Code No. Name L113-319-000 26000057001 Speaker net light cover L113-150-000 20101040007 Hexagon flat round head screws 14 L113-311-000 20251301065 Speaker net light bracket 15 L113-006-000 29911605A010 R Lane frame Assy. L113-811-000 20611605003A Bowling light cover...
  • Page 45 Lane Master Manual Part No. Code No. Name 1 L113-290-000 20211605067 Dual meter bracket 2 L113-280-000 20211605027A Coin box 3 L113-312-000 26000007000 Ticket box 120 4 L113-317-000 26000051000 Ticket cover 5 L113-322-000 26000065000 Out of ticket light cover 2 DBV door...
  • Page 46 Lane Master Manual Part No. Code No. Name L113-212-000 20211605D005 R side reinforced plate L113-213-000 20211605D006 L side reinforced plate L113-808-000 20101020145 Hexagon flat round head screws 4 L113-143-000 20113040051 C flat washer L113-202-000 20211605D001A Connecting plate(vertical) L113-203-000 20211605D002A Connecting plate 2 (vertical)
  • Page 47 Lane Master Manual Part No. Code No. Name 1 L113-449-000 20311605D047 Lane board 2 L113-830-000 20311605A009 Side board 3 L113-462-000 20311605D084 Up front connected board 4 L113-472-001 20311605G009A Connected side board 5 L113-463-000 20311605D085 Up front cantboard 6 L113-464-000 20311605D086...
  • Page 48 Lane Master Manual Part No. Code No. Name 1 L113-458-000 20311605D083 Groove side board 2 L113-455-000 20311605D081 Bottom-Lane front board 3 L113-446-000 20311605D079 Baffle 4 L113-460-000 20311605D022 Cabinet fence(S) 5 L113-471-000 20311605D024 Cabinet fence(L) 6 L113-452-000 20311605D017 Door fixed plate...
  • Page 49 Lane Master Manual Part No. Code No. Name 1 L113-480-000 20311605D096 Side board L113-453-000 20311605D018 Bottom-Lane front side board L113-255-000 20611605030 Lane damping foam 1 L113-482-000 20311605D033A R bottom lane front plate L113-257-000 20611605037 Lane foam L113-483-000 20311605D034 Side fender 1...
  • Page 50 Lane Master Manual Part No. Code No. Name 1 L113-490-000 20311605D040 Debris removal stick L113-484-000 20311605D035 L drawer L113-491-000 20311605D041 R drawer L113-479-000 20311605D031 Side fender 1 L113-208-000 20611605D002 Lane side foam 2 4 L113-477-000 20311605D029 Drawer reinforced plate 2 1...
  • Page 51 Lane Master Manual Part No. Code No. Name L113-258-000 20211605019 Sensor fixed plate L113-136-000 20102020034 Non-metallic hexagon lock nut L113-113-000 20101020159 Cross recessed pan head screw set 5 L113-259-000 20211605021 Sensor fixed plate 2 L113-136-000 20102020034 Non-metallic hexagon lock nut L113-113-000 20101020159 Cross recessed pan head screw set 5 9.5 Ball out Assy.
  • Page 52 Lane Master Manual 9.6 Ball out assy. frame Part No. Code No. Name 1 L113-265-000 20211605048 Cantboard 1 2 L113-263-000 20211605046 Side board B 1 3 L113-262-000 20211605045 Side board A 1 4 L113-264-002 20211605047B Bed board 9.7 Ball basket light Assy.
  • Page 53 Lane Master Manual 9.8 Marquee Assy. Part No. Code No. Name L113-306-001 20611605033C light plastic 2 L113-307-001 20611605034A Light plastic 3 2 L113-305-001 20611605032A Light plastic 1 L113-309-001 20611605036A Light plastic 5 L113-308-001 20611605035C light plastic 4 4 L113-304-000 20211605038...
  • Page 54 Lane Master Manual Part No. Code No. Name L113-825-000 20611605051 Light strip pad 4 L113-817-000 20101100101 Cross recessed pan head screw 12 L113-818-000 20102030010 Hexagon flange nut L113-824-000 20611605050 Light strip pad 3 L113-817-000 20101100101 Cross recessed pan head screw 16...
  • Page 55 Lane Master Manual Part No. Code No. Name L113-895-000 20211605034 Marquee fixed plate L113-149-000 20104020002 Cross recessed hexagon screw kit L113-897-000 20211605035 Marquee connected rod L113-108-000 20101020145 Cross recessed pan head screw set 8 L113-899-000 20211605037 Fixed connected rod L113-108-000 20101020145 Cross recessed pan head screw set 8...
  • Page 56 Lane Master Manual 9.9 Decals Part No. Code No. Name L113-729-000 20511605A003 L top side decal L113-730-000 20511605A004 R top side decal 2 L113-736-000 20511605A018 LOGO decal 3 L113-734-000 20511605014 Display frame decal 4 L113-741-000 20511605A023 Sensor L cover decal...
  • Page 57 Lane Master Manual Part No. Code No. Name 1 L113-747-000 25600000036 Warning label S 2 L113-738-000 20511605A020 Meter label 3 L113-707-000 20511605D010A Ball number label L113-742-000 26601100283 Recovery U disk label L113-754-000 25600000093 Dongle label 5 L113-756-000 25600000096 Service label (S)
  • Page 58 Lane Master Manual Part No. Code No. Name 1 L113-737-000 20511605A019 Notice label 2 L113-715-000 20511605D026 Sensor label 3 L113-708-000 20511605D016A Lock notice label 1 4 L113-759-000 20511605A040 Power supply label 5 L113-719-000 20511605D033 AAMA port label 6 L113-709-000 20511605D017A...
  • Page 59 Lane Master Manual 9.10 Electrical components Part No. Code No. Name 1 L113-513-002 22002011004 BG2835W light strip-white 2 L113-504-002 21201032018 32" display assy. 3 L113-505-002 21201043003 43" display L113-515-002 22002015017 BG5050B light strip-blue L113-516-002 22002015018 BG5050R light strip-red L113-517-001 2200201604 5050 soft light band(purple)
  • Page 60 Lane Master Manual Part No. Code No. Name 1 L113-542-000 23307000015 DVI-DVI cable 1 2 L113-546-000 23307060001 DVI-DVI cable 1 3 L113-544-000 23307010002 Cable 4 L113-545-001 23307020001C DVI-DVI cable 1 5 L113-543-000 23307000018 DP-DVI cable 1 10/16/2019...
  • Page 61 Lane Master Manual Part No. Code No. Name L113-521-000 22301000002 Coin mech. L113-520-000 22201000028 12V white light socket 2 L113-520-000 22003000018 LED light bulb 2 L113-532-000 23100000005 Ticket dispenser 3 L113-518-000 22003000003 LED light bulb(12V) 4 L113-531-000 23000000005 Meter L113-525-000 22403000001...
  • Page 62 Lane Master Manual Part No. Code No. Name L113-502-000 21102000051 PC assy.(TUV) L113-502-001 21107220008 Main board L113-502-002 21107190017 L113-502-003 21107090013 Memory(4G) L113-502-004 21107060004 Hard disk L113-502-005 21107170012 Power supply L113-502-006 21107070007 CPU fan L113-502-007 21107070008 Cabinet fan L113-502-008 21107270004 PC cabinet...
  • Page 63 Lane Master Manual Part No. Code No. Name 9 L113-549-000 29710826003 PCB board 10 L113-550-001 21714000148E Fuseboard01(Green fuse holder, UL) 1 11 L113-510-00021602000001A Power box (UL) 12 L113-554-000 29791300001 M3 main board 13 L113-547-000 23309000233 Cable set Part No. Code No.
  • Page 64 Lane Master Manual AC110 Part No. Code No. Name 1 L113-526-000 22601000005 Rocket SW (S) L113-501-000 21902000006 Fuse socket L113-817-000 21901000013 Fuse L113-527-000 22702000010 Fan net L113-528-000 22702010025 DC fan 4 L113-533-000 23201000001A Filter(UL) L113-537-000 23302000011 Network cable L113-536-000 23302000001 Network cable bracket 1...

  • Page 65: Wiring Diagram

    Lane Master Manual 10. WIRING DIAGRAM 10/16/2019...
