IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JETBALL ALLEY and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS JETBALL ALLEY

Summary of Contents for UNIS JETBALL ALLEY

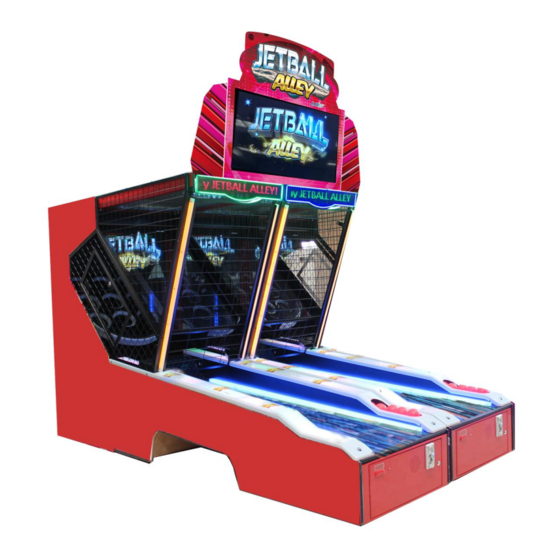

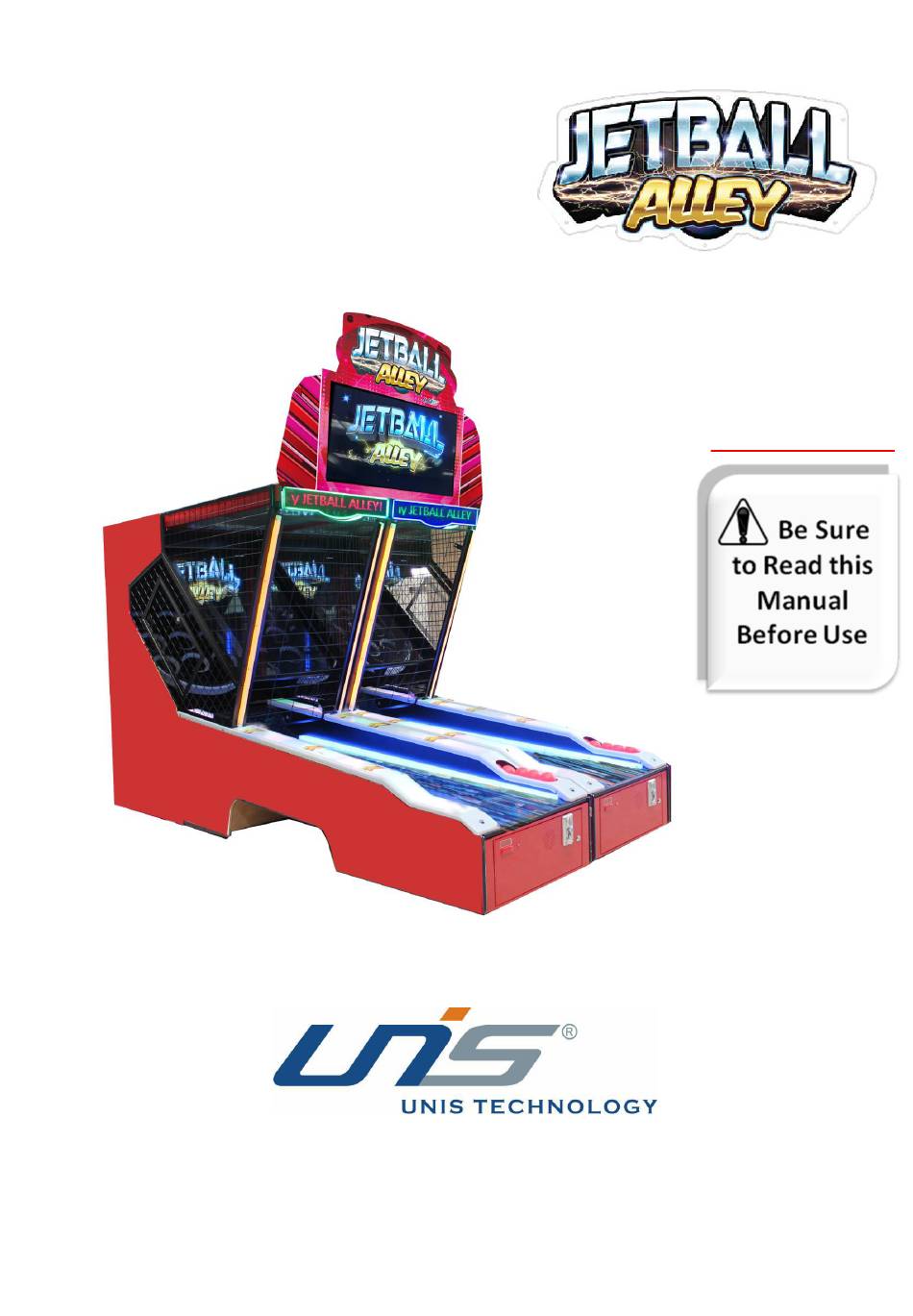

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Jetball Alley 2P GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Jetball Alley Single GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5.HOW TO PLAY ....................... 19 6.

  • Page 4: Important Safety Instructions

    Jetball Alley 2P GMP Manual Thank you for purchasing Jetball Alley 2P. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Jetball Alley Single GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Jetball Alley 2P GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V~ 50/60Hz; AC220V-240V~ 50/60Hz Min. Power consumption: 750W Max. Power consumption: 800W Dimension: W57.66×D122.11×H111.23in W1464.4×D3101.5×H2825.2 (mm) Weight：Approximately 1269.8 lb/576kg Model No: C-594 Part No: J128 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Jetball Alley Single GMP Manual This machine will be divided into two parts during transportation. Back Cabinet: W28.44×D42.88×H70.04 in W722.4 ×D1089 ×H1779 mm Ally part: W28.15×D85.63×H26.62 in W715 ×D2175 ×H676 mm Note: Game specifications are subject to change without notice.

  • Page 8: Contents Of The Accessory Kit

    Jetball Alley 2P GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code Name SPEC Picture 1 J128-801-000 41440000292D Manual 2 J128-802-000 25300171002 3 J128-803-000 25300172002...

  • Page 9: Part Name

    Jetball Alley Single GMP Manual 3. PART NAME Key Components Marquee Assembly Monitor Monitor Display Lane Ball Exit Ticket Dispenser Coin Mechanism 11/02/2019...

  • Page 10: Set Up & Installation

    Jetball Alley 2P GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 11 Jetball Alley Single GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 12 Net A(8 pcs); Net B(2 pcs); L marquee(1 pcs); R Marquee(1 pcs); Middle Marquee(1 pcs); Marquee vertical metal plate(2 pcs); Marquee horizontal metal plate(1 pcs); Marquee metal plate(1 pcs); Please contact UNIS Service in case of any abnormality. Main cabinet...
  • Page 13 Jetball Alley Single GMP Manual Marquee metal plate Marquee Marquee horizontal vertical metal metal plate L marquee R marquee Middle marquee Step 1 Turn the Monitor assembly horizontal as shown below. Turn the Glass frame to the position shown below.
  • Page 14 Jetball Alley 2P GMP Manual Step 3 Place the Baffle plates horizontally beneath the Monitor assembly and install the side indicated by oval to the Monitor assembly as shown below. 4 ends of the Baffle plates are with erection columns. Stick 2 erection columns in 2 mounting metal plates.
  • Page 15 Jetball Alley Single GMP Manual Step 6 Install 4 Nets on the machine. Utilize Phillips screwdriver to tighten screws to secure the Nets. Note: Here is the number of screws used on one side, the other side is the same.
  • Page 16 Jetball Alley 2P GMP Manual Machines Connection Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Ladder Allen wrench Step 1 Align two machines. Open 2 front doors. Connect L machine Cables through the hole to the PC on the R machine. Connect the cable and Audio cable as shown below.
  • Page 17 Jetball Alley Single GMP Manual Step 3 Utilize Phillips screwdriver to tighten 6 screws to secure Marquee vertical metal plate on the cabinet. Marquee vertical Screw hole metal plate Cross recessed Name hexagon screw set Spec. M6X16 Step 4 Utilize Phillips screwdriver to tighten 6 screws to secure Marquee horizontal metal plate to Marquee vertical metal plates.
  • Page 18 Jetball Alley 2P GMP Manual Step 5 Utilize Phillips screwdriver to tighten 1 screw to secure Marquee metal plate to Marquee horizontal metal plate. Utilize Phillips screwdriver to secure 2 screws to the machine. Marquee metal plate Screw hole Upper back door...
  • Page 19 Jetball Alley Single GMP Manual Step 7 Place Marquee on the machine. Utilize Phillips screwdriver to tighten 8 screws on the machine. Note: Staffs need to hold the Marquee during the installation. Screw hole Marquee Name Cross recessed sunk head screw Spec.

  • Page 20: How To Play

    Jetball Alley 2P GMP Manual 5.HOW TO PLAY 5.2 Roll the ball to hit the hole. The ball 5.1 Insert coins to play/Swipe card/ hits the hole and the player gets score. Insert cash to play. 5.3 Hit different holes and achieve different combinations(Combo;High Score Combo;Highest Score Combo).

  • Page 21: Game Option

    Jetball Alley Single GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to - Volume+ ON-OFF enter the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu 6.2.2 Basic Setting...
  • Page 22 Jetball Alley 2P GMP Manual 6.2.3 Customized Setting Options Adjustment Value Instruction Photo Restore ON/OFF Save photo or not Photo Time 1_3_5_10 Game Time 30_45_60_75_90 Basic Score 10_20_30_40_50 Game start hole score Bottom Hole Score Base bottom hole score Combo Multiple...
  • Page 23 Jetball Alley Single GMP Manual 6.2.4.1 Normal Ticket Setting Options Adjustment Value Ticket Mode Base On Point_Fixed Ticket_Base On Stage Mercy Ticket 0_1_2_3_4_5 10_20_30_40_50_100_150_200_250_300_350_400_450_500_ Score Per Ticket 600_700_800_900_1000 1_2_3_4_5_6_7_8_9_10_20_30_40_50_60_70_80_90_100_15 Fixed Ticket 0_200_250_300_350_400_450_500_600_700_800_900_1000 Stage 1 Point Range 50_100_500_1000_1500_2000_3000_4000_5000 Stage 1 Ticket...
  • Page 24 Jetball Alley 2P GMP Manual 6.2.5 Calibration Options Adjustment Value Flip Horizontally Screen Flip Horizontally Flip Vertically Screen Flip Vertically Marquee Monitor Flip Horizontally Marquee Monitor Flip Vertically Monitor Calibration Web Cam Calibration Back&Save Back 6.2.6 Input Test Options Adjustment Value...
  • Page 25 Jetball Alley Single GMP Manual 6.2.8 Game Reset 6.2.9 Date/Time Setting Options Options Year Factory Restore Month Reset Basic Setting Reset Customized Setting Hour(24) Clear All Records Minute Second Clear Owed Ticket Back&Save Clear Unused Coin Back Back 6.2.11 Daily Record 6.2.10 Bookkeeping...

  • Page 26: Troubleshooting

    Jetball Alley 2P GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 27 Jetball Alley Single GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose ports of the PC or IO IO board and PC are loose.
  • Page 28 Jetball Alley 2P GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 29: Maintenance & Inspection

    Jetball Alley Single GMP Manual 8.MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 30 Jetball Alley 2P GMP Manual 2.Locate Sensor light board. Utilize Phillips screwdriver to loosen 2 screws on the Sensor metal plate. Take Sensor metal plate off. Note: It is the same installation method on the other three Sensor metal plates.
  • Page 31 Jetball Alley Single GMP Manual 8.5 Motor Replacement Instruction 1. Power off the machine. Utilize Keys to open the Ball track cover. 2. Locate the Motor assembly. Unplug the motor connector. Utilize Phillips screwdriver to loosen the screws to remove Motor assembly.
  • Page 32 Jetball Alley 2P GMP Manual 4. Loosen the screw to remove Motor mounting plate. Motor mounting plate Screw 5.Loosen 4 screws to remove Motor fixing plate. Motor fixing Screw plate Motor 6.Replace with a new Motor and install it in reversed order.
  • Page 33 Jetball Alley Single GMP Manual 2. Locate the Sensor. Unplug Sensor connector. Twist the sensor to remove sensor as arrow direction. Connector Sensor 3. Replace with the new Sensor and install it in reversed order. 11/02/2019...

  • Page 34: Overall Construction

    Jetball Alley 2P GMP Manual 9.OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name 1 J128-106-000 20211904005 L up net 1×2 J128-104-000 20211904002 L bottom net 1×2 J128-406-000 25300171001 171 Lock 1×2 3 J128-107-000 20211904007 L triangle plate 1×2...
  • Page 35 Jetball Alley Single GMP Manual 9.2 Lane Assembly Part No. Code No. Name 1 J128-199-000 20211904082 Sensor fixing plate B 1×2 2 J128-187-000 20211904059 R supporting plate 1×2 3 J128-196-000 20211904063 Protective plate G 1×2 4 J128-161-000 20211904081 Blocking plate 1×2...
  • Page 36 Jetball Alley 2P GMP Manual Part No. Code No. Name 16 J128-702-000 20511904004A Lane plastic 1×2 17 J128-194-000 20211904061A Ball plate 1×2 18 J128-414-000 25105000014 Sliding rail 3×2 J128-188-000 20611904004 Ball track cover 1×2 J128-406-000 25300171001 171 Lock 2×2 20 J128-160-000 20611904010A Lane side plastic 1 2×2 21 J128-192-000 20611904008 Lane front plate 1×2...
  • Page 37 Jetball Alley Single GMP Manual Part No. Code No. Name 7 J128-228-000 26000001000D Power supply bracket 1×2 8 J128-144-000 20211904031 Protective plate A 3×2 J128-231-000 26000042001B Wiring box 1×2 J128-232-000 26000042002B Wiring box cover 1×2 10 J128-102-000 20211605043 Power supply fixing plate 1×2...
  • Page 38 Jetball Alley 2P GMP Manual 9.5 Ball Hole Assembly Part No. Code No. Name 1 J128-133-000 20211904024 Sensor protect cover 18×2 2 J128-125-000 20611904034 Circle rubber 9×2 3 J128-128-000 20611904001A Top rod 36×2 4 J128-126-000 20211904022 Sensor fixing plate 1×2 5 J128-156-000 20211904037 Hole plate fixing plate 4×2...
  • Page 39 Jetball Alley Single GMP Manual 9.6 L Baffle Plate Part No. Code No. Name 1 J128-115-000 20611904009 Light strip plastic 1×2 2 J128-119-000 20211904016 Light strip pressing plate 2 1×2 3 J128-113-000 20211904012 Bottom support plate 1×2 4 J128-111-000 20211904010 Upper support plate 1×2...
  • Page 40 Jetball Alley 2P GMP Manual 9.7 R Baffle Plate Part No. Code No. Name 1 J128-115-000 20611904009 Light strip plastic 1×2 2 J128-114-000 20211904013 Light strip pressing plate 1 1×2 3 J128-113-000 20211904012 Bottom support plate 1×2 4 J128-111-000 20211904010 Upper support plate 1×2...
  • Page 41 Jetball Alley Single GMP Manual 9.8 Back Upper Door Part No. Code No. Name 1 J128-147-000 20611904016 Back upper door foam 1×2 J128-505-000 20311904024A Back board 1 1×2 J128-406-000 25300171001 171 Lock 1×2 3 J128-506-000 20311904025A Back board 2 1×2 4 J128-123-000 20211904020 Back door side plate 1 1×2...
  • Page 42 Jetball Alley 2P GMP Manual 9.9 Front Door & Electrical Plate Assembly Part No. Code No. Name 1 J128-547-000 20311904047 Mounting plate 1×2 2 J128-229-000 26000007000 Ticket box 1×2 3 J128-210-000 20211904B011 Base plate 1×2 4 J128-235-000 26000064000 Recovery stick plate 1×2 5 J128-168-000 20211904046 Front door frame 1×2...
  • Page 43 Jetball Alley Single GMP Manual 9.10 Motor Assembly Part No. Code No. Name 1 J128-175-000 20211904051 Motor metal plate 1×2 2 J128-183-000 20211904056 Blocking rod plate 1×2 3 J128-184-000 20611904027 Rubber 1×2 4 J128-182-000 20611904026A Axle 1×2 5 J128-180-000 20611904026 Axle sleeve 7×2...
  • Page 44 Jetball Alley 2P GMP Manual 9.11 Net B Part No. Code No. Name 1 J128-120-000 20211904017 Net B fixing plate 1 1×2 2 J128-121-000 20211904018 Net B fixing plate 2 1×2 3 J128-122-000 20211904019 Net B 1×2 9.12 Glass Part No.
  • Page 45 Jetball Alley Single GMP Manual 9.13 Display Assembly Part No. Code No. Name 1 J128-701-000 20511904003 Display plastic 1×2 2 J128-201-000 20611904013 Display light strip plastic 1×2 3 J128-203-000 20211904066 Display fixing plate 1×2 4 J128-200-000 20211904064 Display frame 1×2 5 J128-202-000 20211904065 Display frame fixing plate 2×2...
  • Page 46 Jetball Alley 2P GMP Manual Part No. Code No. Name 1 J128-207-000 20211904B001 Marquee metal plate 2 J128-226-000 20211904B009 Marquee door hinge 3 J128-208-000 20211904B002 Marquee fixing plate J128-224-000 20211904B007 Marquee door J128-406-000 25300171001 171 Lock 5 J128-209-000 20211904B003 Marquee vertical metal plate 2...
  • Page 47 Jetball Alley Single GMP Manual 9.15 Lane Wooden Assembly Part No. Code No. Name 1 J128-529-000 20311904009 Back blanking board 1×2 2 J128-546-000 20311904046B Side board 1×2 3 J128-536-000 20311904012 Back base board 1×2 4 J128-535-000 20311904011 Cabinet fence(L) 1×2 5 J128-537-000 20311904042 Back bottom connected board 1×2...
  • Page 48 Jetball Alley 2P GMP Manual Part No. Code No. Name 1 J128-545-000 20311904045A Support board 3×2 2 J128-533-000 20311904018A Connective board 1×2 3 J128-531-000 20311904041 Ball out cover board 6×2 4 J128-543-000 20311904016 Lane cover board 2×2 J128-528-000 20311904039B No.2 Lane R side board J128-553-000 20311904B006A No.1 Lane R side board(with hole) 1...
  • Page 49 Jetball Alley Single GMP Manual 9.16 Cabinet Wooden Assembly Part No. Code No. Name 1 J128-518-000 20311904034A Front top board 1×2 J128-503-000 20311904022A No.1 L side board J128-550-000 20311904B003 No.2 L side board(with hole) 3 J128-514-000 20311904032A Top cover board 1×2...
  • Page 50 Jetball Alley 2P GMP Manual Part No. Code No. Name 12 J128-516-000 20311904003 Door locating board 2×2 13 J128-504-000 20311904023A Power supply board 1×2 14 J128-526-000 20311904008 Connect board 1×2 15 J128-510-000 20311904002 Base board 1×2 16 J128-523-000 20311904036 Front blocking board 1×2...
  • Page 51 Jetball Alley Single GMP Manual Part No. Code No. Name 1 J128-554-000 20311904B007 L side marquee 2 J128-712-000 20511904B003 L side POP decal 3 J128-211-000 20611904B001 L side marquee light strip plastic(Upper) 1 4 J128-212-000 20611904B002 L side marquee light strip plastic(Bottom) 1 9.18 R Marquee Assembly...
  • Page 52 Jetball Alley 2P GMP Manual 9.19 Decals Part No. Code No. Name 1 J128-712-000 20511904B003 L side POP decal 1 2 J128-713-000 20511904B004 R side POP decal 1 3 J128-702-000 20511904004A Lane plastic 1×2 4 J128-719-000 25600000108 Ticket decal 1×2...
  • Page 53 Jetball Alley Single GMP Manual Part No. Code No. Name 1 J128-704-000 20511904015 Counter decal 2 J128-722-000 25600000036 High voltage label(S) 4 3 J128-718-000 20511904B009 Wiring decal 4 J128-724-000 25600000042A Service label(green) 2 5 J128-731-000 25600000095A Service label(L) 6 J128-725-000 25600000067A Service label(yellow) 2...
  • Page 54 Jetball Alley 2P GMP Manual 19 J128-709-000 20511904020 Lock decal 2 20 J128-727-000 25600000072 220V decal 21 J128-721-000 25600000016 Power switch decal 22 J128-726-000 25600000071 110V decal 23 J128-720-000 25600000116 Recovery stick decal 1 11/02/2019...
  • Page 55 Jetball Alley Single GMP Manual 9.20 Electrical Component 9× Part No. Code No. Name 1 J128-441-000 22002015019 BG5050W white light strip 98.48in(240cm) 2 J128-438-000 22002015021 BG5050RGB light strip 149.6in(380cm) 3 J128-438-000 22002015021 BG5050RGB light strip 76.77×2in(195cm×2) 4 J128-438-000 22002015021 BG5050RGB light strip 41.33×2in(105cm×2)
  • Page 56 Jetball Alley 2P GMP Manual Part No. Code No. Name 1 J128-421-000 21602020006 Power supply 1×2 2 J128-437-000 21714000148D Fuse board(UL) 1×2 J128-444-000 21603000027 AC adapter 1×2 J128-417-000 23301050002 Power cord 1×2 4 J128-416-000 21501000004 Sensor 1×2 5 J128-436-000 23309000348A Cable set 6 J128-427-000 21602000122 Power supply 1×2...
  • Page 57 Jetball Alley Single GMP Manual Part No. Code No. Name J128-432-000 21102000110 J128-481-000 21107220014 Main board J128-482-000 21107190005 J128-483-000 21107290003 Memory J128-484-000 26601090505 Hard disk J128-485-000 26601090506 Video card J128-486-000 21107170015 Power supply 2 J128-461-000 23304000019 Cable 3 J128-456-000 23304030004 Extension cable 1×2...
  • Page 58 Jetball Alley 2P GMP Manual Part No. Code No. Name 1 J128-435-000 29711904001 LED light board 9×2 2 J128-447-000 21501000044 Sensor 1×2 3 J128-443-000 41300000007 Recovery stick J128-458-000 21107020036 Dongle J128-469-000 23304000018 Cable 11/02/2019...
  • Page 59 Jetball Alley Single GMP Manual Part No. Code No. Name 1 J128-479-000 26601101654 Chassis assembly of 49'' monitor 1 2 J128-478-000 26601090397 Power board 3 J128-480-000 26601090407 7-key board 4 J128-477-000 26601090396 Driver board 5 J128-429-000 23307020003B DVI cable 1×3...
  • Page 60 Jetball Alley 2P GMP Manual Part No. Code No. Name 1 J128-425-000 22301000002 Coin mechanism 1×2 2 J128-463-000 22801000085 Speaker 1×2 3 J128-445-000 23100000005 Ticket dispenser 1×2 4 J128-460-000 29790700002 Ticket converted board 1×2 Part No. Code No. Name 1 J128-465-000 21602000114 Power supply 1...

  • Page 61: Wiring Diagram

    Jetball Alley Single GMP Manual 10.WIRING DIAGRAM AC IN AC IN 11/02/2019...
  • Page 62 Jetball Alley 2P GMP Manual AC IN 11/02/2019...
