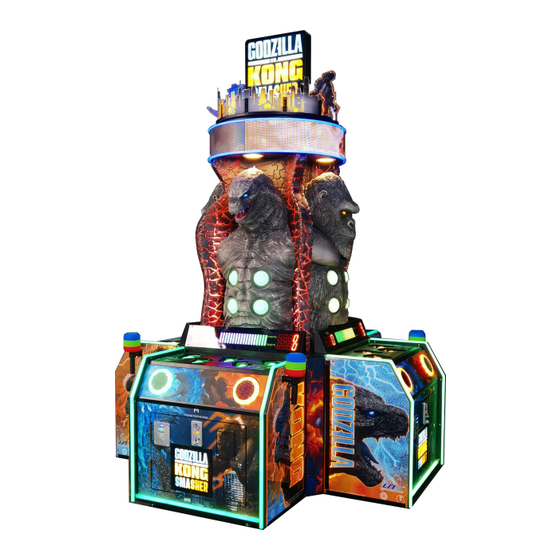

UNIS GODZILLA VS. KONG SMASHER Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

loading

Related Manuals for UNIS GODZILLA VS. KONG SMASHER

Summary of Contents for UNIS GODZILLA VS. KONG SMASHER

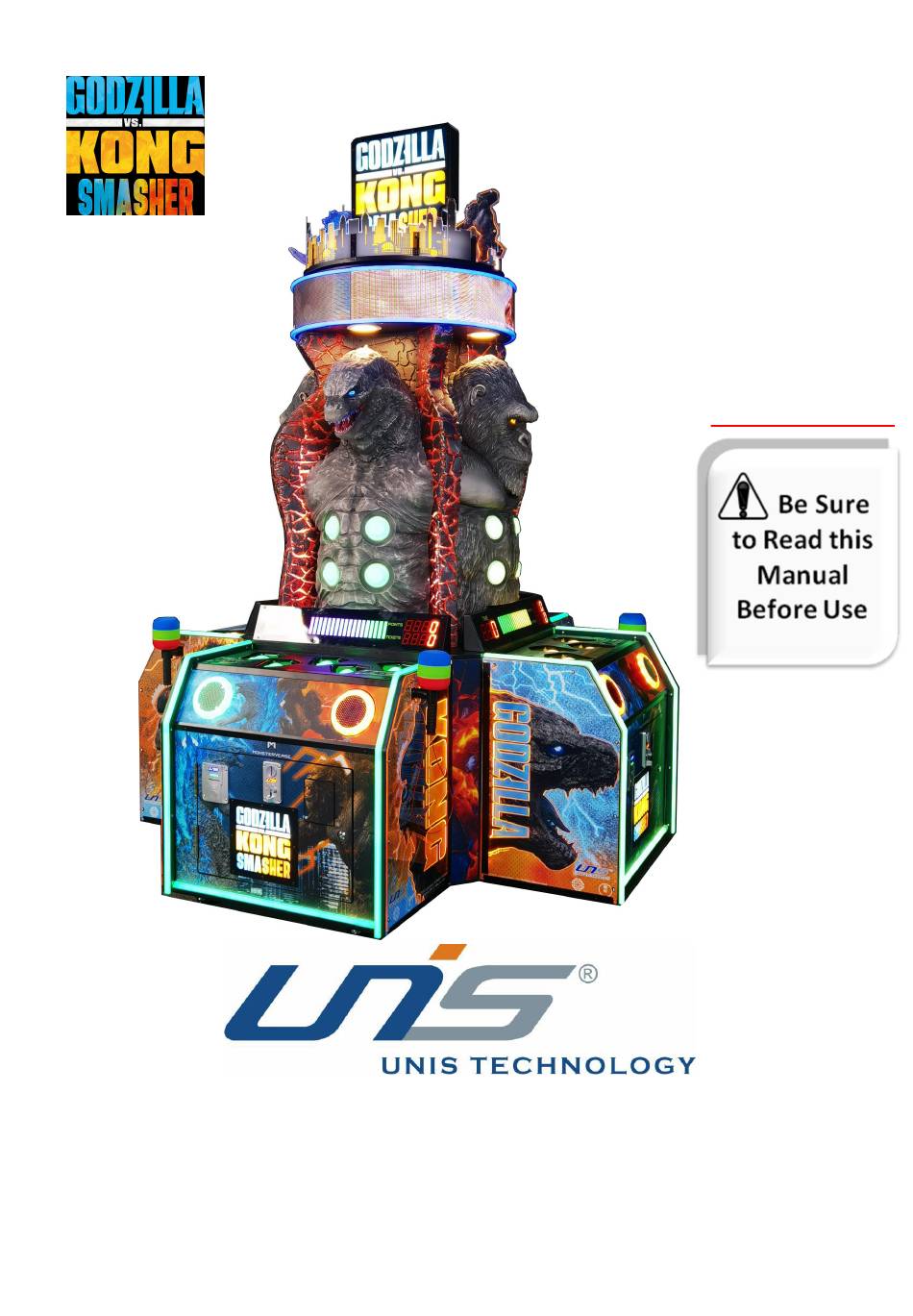

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 GvK Smasher GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    GvK Smasher GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................13 6. TROUBLESHOOTING ....................14 7.MAINTENANCE &...

  • Page 4: Important Safety Instructions

    GvK Smasher GMP Manual Thank you for purchasing GvK Smasher GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 GvK Smasher GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    GvK Smasher GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 580W Max. Power consumption: 900W Dimension: H103.85×W74.01×D74.01 in H2638×W1880 ×D1880 mm Weight：Approximately 859.80 lb/390 KG Model No: A-515 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    GvK Smasher GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Code No. Name/SPEC Picture Power cord 2.33.01.010020 3×16AWG 1.8M Fuse(T5A) 2 2.19.01.000004A Ф5×20mm T5A 250VAC (PSE) 2.53.00171002 171A key 2.53.00172002 171B key...

  • Page 8: Part Name

    GvK Smasher GMP Manual 3. PART NAME Key Components 10/31/2023...

  • Page 9: Set Up & Installation

    GvK Smasher GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 10 GvK Smasher GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Play area: 20 in NOTICE Your unit must be leveled to operate properly. 10/31/2023...
  • Page 11 GvK Smasher GMP Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Step 1 Locate top of the Loops assembly. Loosen 4 screws as shown below. Screws Step 2 Locate Marquee assembly. Loosen screws to remove LOGO marquee. LOGO marquee Screws...
  • Page 12 GvK Smasher GMP Manual Step 3-1 Place Marquee assembly to the top of the loops assembly. Utilize screws to secure. Step 3-2 Install LOGO marquee to the marquee. Connect the connectors. LOGO marquee Marquee Loops Step 4 Loosen 4 screws on the 4 positions. Mind the Control panel and Main cabinet label.
  • Page 13 GvK Smasher GMP Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage. Important: This game is pre-wired to AAMA standards. It is highly recommended to utilize this wiring for Card reader installation.

  • Page 14: How To Play

    GvK Smasher GMP Manual 5. HOW TO PLAY 5.1 Insert coins/Tap/swipe card to play. Use Hammer to hit the skull crawlers and build up the meter bar. 5.2 When the meter bar is full, get ready to fight Kong/Godzilla. 5.3 Use hammer to attack the weak points and reduce the meter/health bar. 5.4 Defeat KONG/Godzilla within the time limit to adcance to the nest stage (4 total stages) 10/31/2023...

  • Page 15: Troubleshooting

    Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Card reader not The connector is loose. Check connector. working Card reader fault.

  • Page 16: Maintenance & Inspection

    GvK Smasher GMP Manual 7.MAINTENANCE & INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
