Summary of Contents for UNIS Fantastic Prize

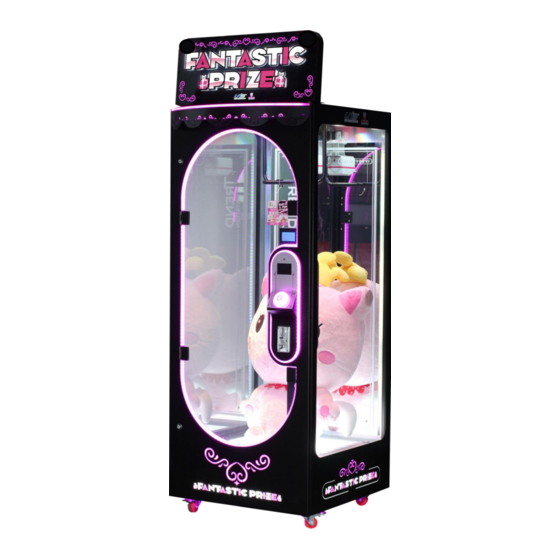

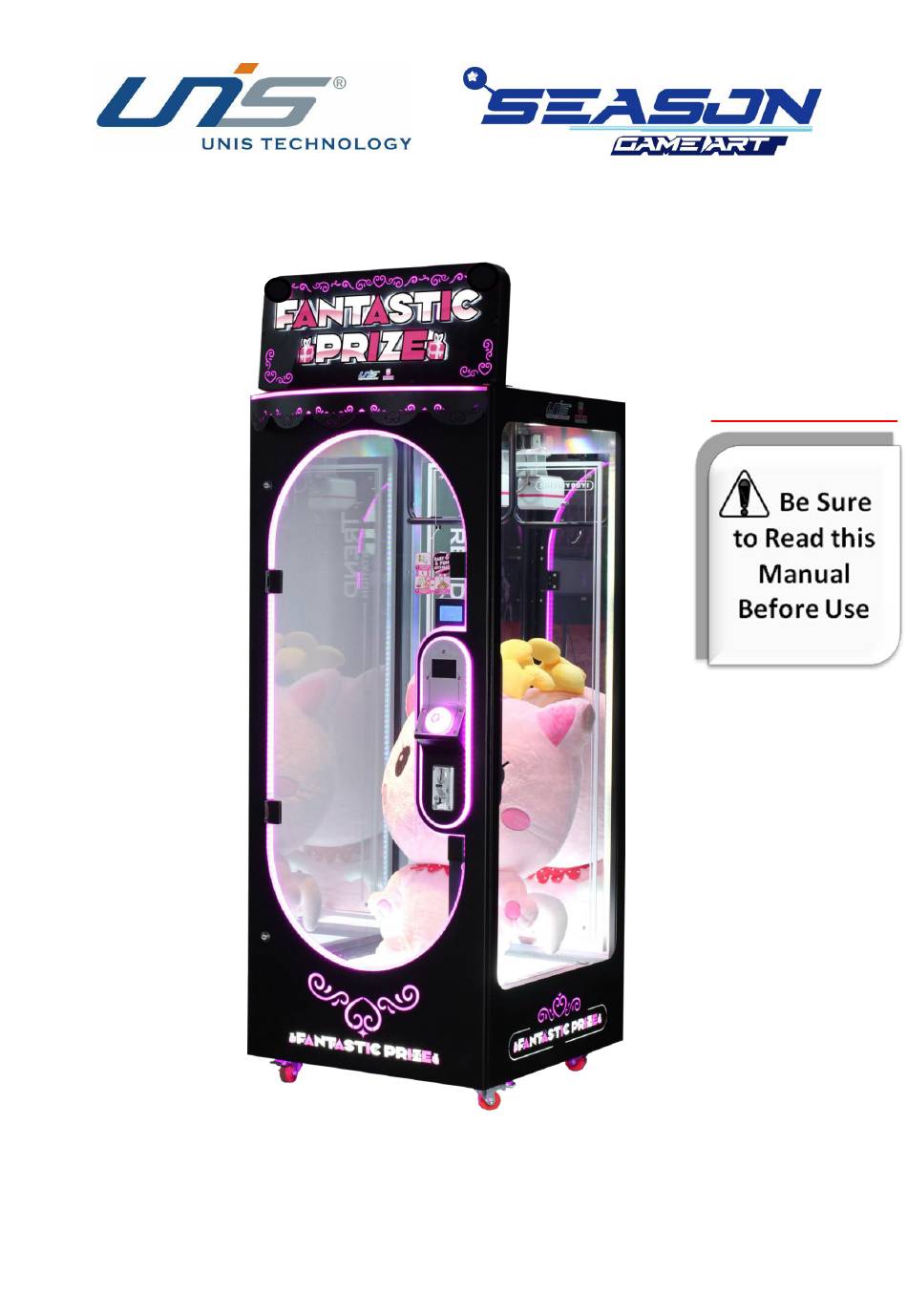

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Fantastic Prize GMP(Skill) Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Fantastic Prize GMP(Skill) Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. LOCATION OPERATION INSTRUCTIONS ............11 6.

  • Page 4: Important Safety Instructions

    Fantastic Prize GMP(Skill) Manual Thank you for purchasing Fantastic Prize GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Fantastic Prize GMP(Skill) Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Fantastic Prize GMP(Skill) Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 260W Max. Power consumption: 350W Dimension: W31.73×D37.36×H77.77+12.99(Marquee) in W806 ×D949 ×H1975.5+330(Marquee) mm Weight：Approximately 458.56 lb/ 208kg Model No: C-716 Part No: F160 37.36 in (31.37 in) 31.73 in...

  • Page 7: Contents Of The Accessory Kit

    Fantastic Prize GMP(Skill) Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Drawing No. Name/SPEC Picture F160-0327-00 Key switch key(blue) F160-0301-00 TYJ0078 Door key(red) F160-0302-00 TYJ0077 Coin box key(yellow)

  • Page 8: Part Name

    Fantastic Prize GMP(Skill) Manual 3. PART NAME Key Components Marquee Assembly Scissor Button Coin mechanism 08/09/2022...

  • Page 9: Set Up & Installation

    Fantastic Prize GMP(Skill) Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Fantastic Prize GMP(Skill) Manual 4.3 Machine Installation Step 1 Take out the marquee from the cabinet inside; Step 2 Loosen 4 screws on the top ; Step 3 Place the marquee on the top, connect 2 connectors for marquee, and tighten 4 screws;...
  • Page 11 Fantastic Prize GMP(Skill) Manual Step 4 Marquee installation completed↓ FINISH! 08/09/2022...

  • Page 12: Location Operation Instructions

    Fantastic Prize GMP(Skill) Manual 5. LOCATION OPERATION INSTRUCTIONS 5.1 First Power On Operation Step 1. When first power on the machine, only need to confirm and adjust below parameter ↓ Open front Prize door with door key, there is a Keyboard near the Coin box.
  • Page 13 Fantastic Prize GMP(Skill) Manual Step 2. Tie one end of String to the Hook and the other end of String to the Prize; The String must be tied inside the middle lowest point of Hook, and must be fixed straight;...

  • Page 14: Game Option

    Fantastic Prize GMP(Skill) Manual 7. GAME OPTION 7.1 Keyboard instruction Open front Prize door with door key, there is a Keyboard near the Coin box. Press “Program” button to enter the setting menu. After entering the menu, use the keyboard to control mini screen cursor to up, down, left and right to choose, press “Confirm”...
  • Page 15 Fantastic Prize GMP(Skill) Manual 7.2.2 Accounts: operation records are included as below Options Description Coins The total number of coins inserted. Games The number of games Gifts The total number of prize out. Linking total accounts(In No.1 machine) Options Description Coins The total number for all cabinets of coins.
  • Page 16 Advance set up (Special for Factory Service Usage) NOTICE Do not recommend to change here without consulting UNIS factory Change settings may cause the machine to be faulty. servicing center. Factory settings already set these data with a proper default, therefore do not recommend.
  • Page 17 Fantastic Prize GMP(Skill) Manual 7.2.5 Test Options Description Test Test the electrical components. Cut Test Test the crane to cut the string. Exit test Back to the front page 7.2.5.1 Test Options Description Win signal Test the Prize sensor. Coin signal Test the coin mechanism.

  • Page 18: Troubleshooting

    Fantastic Prize GMP(Skill) Manual 8. TROUBLESHOOTING 8.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Check connector. Game will not loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 19 Fantastic Prize GMP(Skill) Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action The prize door is not been Close the prize door closed. 2 Door is Open The prize door lock is faulty.
  • Page 20 Fantastic Prize GMP(Skill) Manual 8.2 System Update Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Insert the SD card into the SD card socket of the mainboard. 2. Restart machine; The system will automatically start update.

  • Page 21: Maintenance & Inspection

    Fantastic Prize GMP(Skill) Manual 9. MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 22 Fantastic Prize GMP(Skill) Manual Step 4 Pay attention to the L scissor and the string distance. Stop adjust the scissors when the L scissor is 0.01 inch (0.3mm) away from the string. Step 5 Press Confirm button to Save the scissors calibration.

  • Page 23: Overall Construction

    Fantastic Prize GMP(Skill) Manual 10. OVERALL CONSTRUCTION 10.1 General Assembly 08/09/2022...
  • Page 24 Fantastic Prize GMP(Skill) Manual Part No. Drawing No. Name F160-0180-00 WJWL0076 Main cabinet bracket F160-0181-00 WJWL0077 Back glass mirror F160-0228-00 HC0441 Screw set F160-0229-00 HC0442 Rubber set F160-0182-00 WJ0195 Side glass F160-0183-00 WJWL0078 Front door F160-0118-00 TYJ0247 Front door lock...
  • Page 25 Fantastic Prize GMP(Skill) Manual 10.2 Decal Part 08/09/2022...
  • Page 26 Fantastic Prize GMP(Skill) Manual Part No. Drawing No. Name F160-0201-00 Letter plastic F160-0202-00 Marquee decoration acrylic F160-0206-00 110V nameplate F160-0204-00 Bottom decal F160-0203-00 Side decal Part No. Drawing No. Name F160-0207-00 DBV label F160-0208-00 How to play instruction decal 08/09/2022...
  • Page 27 Fantastic Prize GMP(Skill) Manual 08/09/2022...
  • Page 28 Fantastic Prize GMP(Skill) Manual Part No. Drawing No. Name F160-0210-00 Maintenance warning label F160-0211-00 Caster decal F160-0212-00 Restart notice decal F160-0220-00 Socket label F160-0221-00 Indoor use decal F160-0213-00 High voltage label F160-0214-00 Maintenance label Part No. Drawing No. Name F160-0320-00...
  • Page 29 Fantastic Prize GMP(Skill) Manual 10.3 Electrical Components 08/09/2022...
  • Page 30 Fantastic Prize GMP(Skill) Manual Part No. Drawing No. Name F160-0109-00 DG0047 Prize light card F160-0108-00 DG0048 48W driver F160-0116-00 TYJ0246 Power supply(12V) F160-0128-00 TYJ0059 F160-0129-00 TYJ0058 Fan net F160-0133-00 TYJ0049 Filter F160-0112-00 DG0044 Light driver F160-0134-00 TYJ0047 Counter F160-0313-00 TVJ0054...
  • Page 31 Fantastic Prize GMP(Skill) Manual Part No. Drawing No. Name F160-0102-00 DZ0050 Display F160-0111-00 DG0045 Yellow light F160-0110-00 DG0046 White light F160-0115-00 DG0108 White light board F160-0153-00 DZ0043 Hook SW F160-0152-00 DZ0047 Crane 08/09/2022...
  • Page 32 Fantastic Prize GMP(Skill) Manual Part No. Drawing No. Name F160-0323-00 TYJ0389 Key switch F160-0319-00 DZ0272 Emergency button 08/09/2022...

  • Page 33: Appendix: Linking Instructions

    Fantastic Prize GMP(Skill) Manual Appendix: Linking Instructions(For 3-12 Fantastic Prize machines only) Warning: Do not change any Settings expect “Machine No.” in Set Up (Password “4321”). Change Settings randomly may cause the machine to be faulty. 1. Linking Installation Instruction Notice: Less than 3 machines cannot be connected.
