Summary of Contents for UNIS PONG Arcade

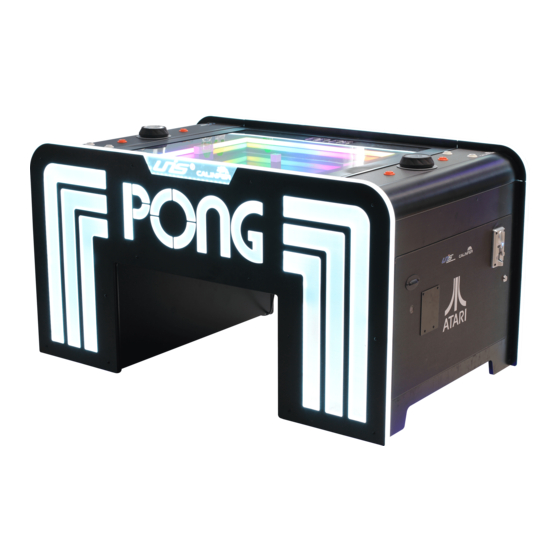

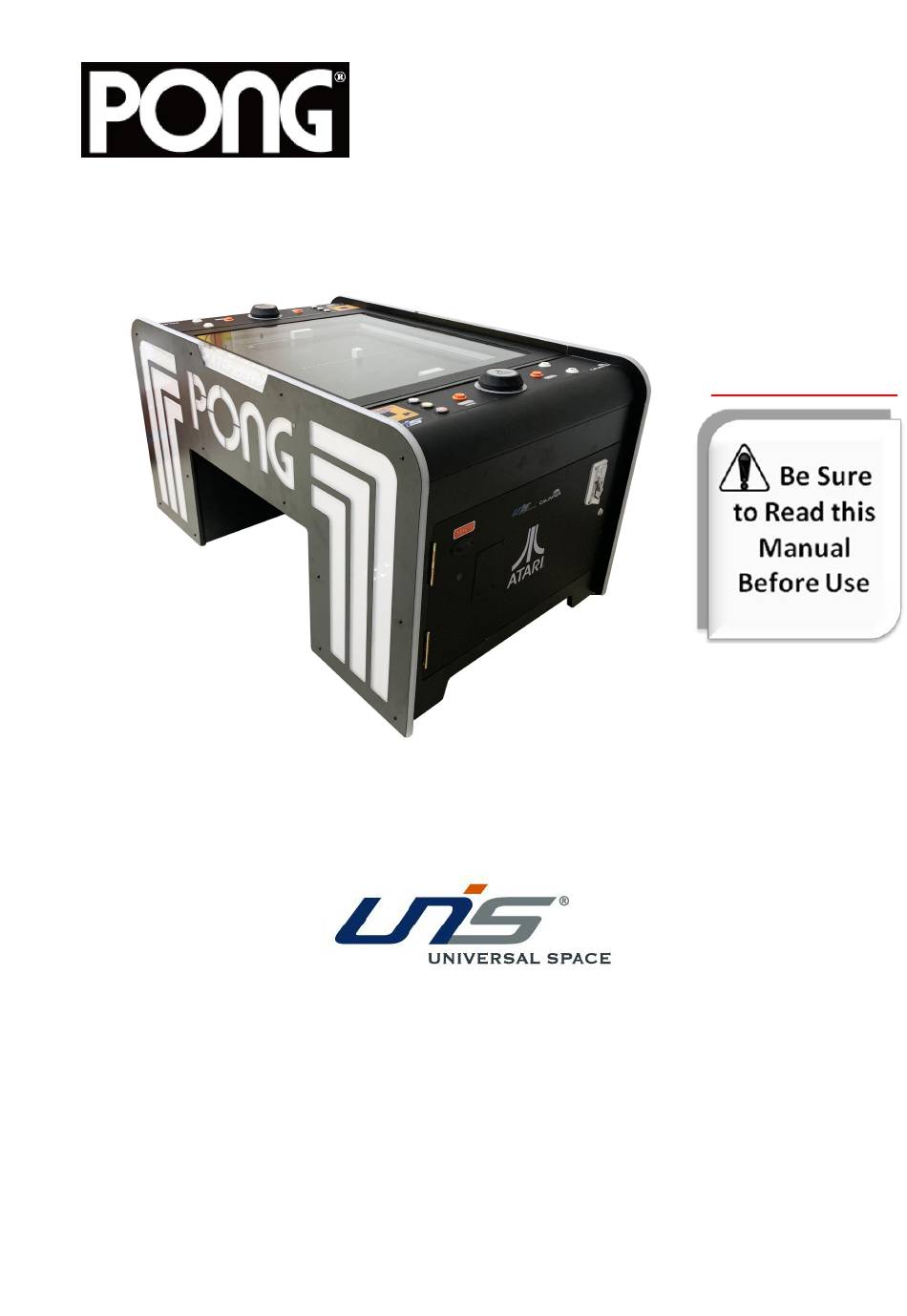

  • Page 1 Arcade version IMPORTANT www.universal-space.com Operation Manual...
  • Page 2 PONG Arcade Ver. Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    PONG Arcade Ver. Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION..................8 5. HOW TO PLAY ...................... 10 6. GAME OPTION ..................... 11 7.

  • Page 4: Important Safety Instructions

    PONG Arcade Ver. Manual Thank you for purchasing PONG. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 PONG Arcade Ver. Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    PONG Arcade Ver. Manual 1. SPECIFICATIONS Rated power supply: AC110V~50/60Hz; AC220V~50/60Hz; Min. Power consumption: 200W Max. Power consumption: 280W Dimension: W 55.91×D 34.10×H 31.67 in W 1420×D 866×H 804.3 mm Weight: Approximately 353 lb Part No: P148 Model: A-427 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    PONG Arcade Ver. Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture P152-801-000 23301010020 Power cord P152-436-000 21901000010 Fuse P152-806-000 41440000247E Manual P152-180-000 20211707045A Adjust plate A...

  • Page 8: Part Name

    PONG Arcade Ver. Manual 3. PART NAME Key Components Paddle Paddle Paddle Paddle Ball Ball Ball Ball Display Display Display Display Coin Coin mechanism mechanism Power switch Power switch Power switch Power switch Ticket dispenser 08/13/2019...

  • Page 9: Set Up & Installation

    PONG Arcade Ver. Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 10 PONG Arcade Ver. Manual 4.2 Voltage Conversion Locate the Power supply. Loosen the power supply cover screws and take it off. Toggle the switches to 115V or 230V according to your need. 4.3 Card Reader Installation Safety Notice Take precaution to assure that all wring voltages are confirmed prior to installation of card reader.

  • Page 11: How To Play

    PONG Arcade Ver. Manual 5. HOW TO PLAY 5.1 Press 1P Start button or 2P Start button, then choose Easy/Normal/Hard mode to start the game. Move the jog to control the paddle, press the orange button to shoot. (Same function as the two orange buttons)

  • Page 12: Game Option

    PONG Arcade Ver. Manual 6. GAME OPTION Enter into the setting menu Step 1 Locate the Player 1 side(the side near Power switch) and open the coin door. Step 2 Press Settings button to move the Ball to the middle and press the Settings button again, then you’ll see “CONF”...
  • Page 13 PONG Arcade Ver. Manual 6.1 Setting Menu When SERVICE MODE is active, you will see CONF in the scoreboard by default. Spinning the JOG will switch spelling between configuration (CONF) and checks (CHEC) BACK exits SERVICE MODE and SET selects the active option.
  • Page 14 PONG Arcade Ver. Manual VALUES: # RANGE: 0..99 DEFULT: 30 VALUES: # RANGE: 0..99 DEFULT: 99 VALUES: # RANGE: 0..99 DEFULT: 99 VALUES: CL DEFULT: VALUES: CL This option only applies to units fitted with coin mechanism. Choose FREE PLAY...
  • Page 15 PONG Arcade Ver. Manual VALUES: # RANGE: 0..04 DEFAULT: 02 VALUES: # RANGE: 3..39 DEFAULT: 05 VALUES: # EASY GAME RANGE: 0..6 SPEED Game Speed: DEFAULT: 0 0-----0.3175m/s VALUES: # NORMAL GAME 1-----0.4978m/s RANGE: 0..6 SPEED 2-----0.6782m/s DEFAULT: 03 3-----0.8585m/s...
  • Page 16 PONG Arcade Ver. Manual VALUES: # RANGE: 0..99 DEFAULT: 50 VALUES: # RANGE: 0..90 DEFAULT: 03 (Note: 00=30s) Motors tests. ( Press SET and BACK to exit.) Inputs tests. ( Press SET and BACK to exit.) LEDS, Motors and AUTO Inputs auto tests.
  • Page 17 PONG Arcade Ver. Manual (Press SET & BACK buttons) P1 EASY pressed P1 NORMAL pressed P1 HARD pressed P2 EASY pressed P2 NORMAL pressed P2 HARD pressed After powering on the machine, the display will show the Program Version(the left two characters) and the Music File Version(the right two characters).

  • Page 18: Troubleshooting

    PONG Arcade Ver. Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly is faulty. Contact UNIS Service. Turn on power SW again. If appeared...

  • Page 19: Maintenance & Inspection

    PONG Arcade Ver. Manual Motor of Ball Motor of Ball Motor of P2 Motor of P1 X axle X axle Paddle Paddle Sensor of P2 Sensor of P1 Paddle Paddle Sensor of Ball X axle Sensor of Ball Y axle Motor of Ball Y axle 8.
  • Page 20 PONG Arcade Ver. Manual 8.3 How To Clean The Playfield Step 1 Power off the game. Insert the key to the lock and turn 90 ° clockwise or counterclockwise. Press the glass pressing plate slightly to make the lock pop up. (The method is the same on both two locks.)
  • Page 21 PONG Arcade Ver. Manual 8.6 How To Access Movement Mechanism Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Step 1 Power off the game and open the coin door on Player 1 side (the side near the power switch).
  • Page 22 PONG Arcade Ver. Manual Step 4 Remove the screw covers and loosen the screws shown in the picture. Step 5 Remove the playfield. Note: please avoid the Paddles and Ball sticking together. Step 6 Proceed to the movement mechanism. CAUTION: Do not leave the game unattended with the playfield removed.
  • Page 23 PONG Arcade Ver. Manual 8.7 Belt Tension Adjustment Instruction for Y Axle If noise is heard from the tracks inside the machine, one of the reasons is that the belt has loosened. Here is the process to tighten the belt.
  • Page 24 PONG Arcade Ver. Manual 8.8 Belt Tension Adjustment Instruction for X Axles Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Wrench(8mm) Kit list: Name Picture Block Step 1 Follow the 8.6 steps to remove the playfield. Move Y axle to motor side.
  • Page 25 PONG Arcade Ver. Manual Step 3 Check if the block is slightly above the X axle (within 0.04inch). If it is, don’t adjust the belt; if it touches the X axle, adjust the belt. √ × Need to adjust. Step 4 To adjust: Utilize Phillips screwdriver to loosen the screws a bit.
  • Page 26 PONG Arcade Ver. Manual 8.9 How to Replace the Side Light Strips Before processing with assembly assure you have the following tools. Name Picture Allen wrench(3mm) Step 1 Power off the game and open the coin door. Step 2 Insert the key to the lock and turn 90°clockwise or counterclockwise. Press the glass pressing plate slightly to make the lock pop up.
  • Page 27 PONG Arcade Ver. Manual Step 4 There are three light strips indicated by arrows on each side that can be replaced. Pull the plug from the hole to locate the connector behind the coin door and unplug it. Remove the light strip.

  • Page 28: Overall Construction

    PONG Arcade Ver. Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code Name 1 P152-197-000 26000051000 Ticket cover 2 P152-113-000 20211707K006 DBV panel 3 P152-200-000 26000065000 Out of ticket light cover 2 4 P152-112-000 20211707K005 DBV cover 5 P152-107-001 20611707K001A...
  • Page 29 PONG Arcade Ver. Manual Part No. Code Name 16 P152-193-000 26000006000 Ticket box 17 P152-116-000 20611707K009 Power supply cover 18 P152-102-000 20211707K002 SW plate 19 P152-115-000 20211707K022 Power supply pressing plate P152-203-000 20211707k026 Counter bracket A(with POT hole) 1 P152-204-000 20211707k025...
  • Page 30 PONG Arcade Ver. Manual 9.3 Movement Mechanism Part No. Code Name 1 P152-144-000 20211707032A Idle wheel A P152-145-000 20211707047B Idle wheel axle P152-305-000 20102000022 Non-metallic hexagon lock nut P152-301-000 20113000055 C flat washer P152-146-000 20211707054 Wheel sleeve 3 P152-143-000 20211707017B...
  • Page 31 PONG Arcade Ver. Manual Part No. Code Name 19 P152-177-000 20211707052A Long sensor SW bracket 20 P152-178-000 20211707043A Fix plate A 21 P152-182-000 20211707049A Short fix bar 22 P152-147-000 20211707058 Axle plate 23 P152-148-000 20211707059 Limit bracket Part No. Code...
  • Page 32 PONG Arcade Ver. Manual Part No. Code Name 13 P152-158-000 20211707002B Y axle bracket 14 P152-153-000 20211707033A Driving wheel 15 P152-156-000 20211707034A Idle wheel B 16 P152-157-000 20211707007B Axle 17 P152-155-000 20211707021A 57 motor bracket B 18 P152-614-000 23406000031 Hybrid stepping motor 1...
  • Page 33 PONG Arcade Ver. Manual 9.5 Wooden Assembly Part No. Code Name 1 P152-502-001 20311707K013A L&R side plate P152-207-000 20211707K027 Control panel plate P152-205-000 20611707K013 Waterproof foam A(long) 4 P152-206-000 20611707K014 Waterproof foam B(short) 4 3 P152-509-001 20311707K006A Sideways plate 4 P152-503-001 20311707K002A...
  • Page 34 PONG Arcade Ver. Manual 9.6 Jog Assembly Part No. Code Name 1 P152-715-000 20511707002 ATARL Logo 1×2 2 P152-188-000 20611707008 Jog shell 1×2 3 P152-187-000 20611707009 1×2 4 P152-190-000 20211707008B Axle 1×2 5 P152-122-000 20211707K011 Decoration panel 1×2 6 P152-189-000 20211707013A BR bracket 1×2...
  • Page 35 PONG Arcade Ver. Manual 9.7 Inner Frame Assembly Part No. Code Name 1 P152-126-000 20211707K012 Steel 2 P152-128-000 20611707K008 U block 3 P152-513-000 20311707K014 Inside pad 4 P152-623-000 25101210028 Spring 5 P152-127-000 20611707K011 Batten 9.8 Paddle Assembly Part No. Code...
  • Page 36 PONG Arcade Ver. Manual 9.10 Right Light Plate Assembly Part No. Code Name 1 P152-702-001 20511707K002A Left L light plate 2 P152-135-001 20211707K018A Right plate 3 P152-701-000 20511707K001 Middle light plate 4 P152-703-001 20511707K003A Right L light plate 9.11 Left Light Plate Assembly Part No.
  • Page 37 PONG Arcade Ver. Manual 9.12 Decals Part No. Code Name 1 P152-714-000 20511707001C Playfield glass 2 P152-707-003 20511707K007C Control panel arc decal 1 3 P152-708-001 20511707K008A Front door decal 4 P152-715-000 20511707002 ATARL Logo 5 P152-706-001 20511707K006A Button decal 6 P152-704-001 20511707K004A...
  • Page 38 PONG Arcade Ver. Manual Part No. Code Name 1 P152-729-000 25600000071 110V label 2 P152-726-000 25600000017 Power SW label 3 P152-730-000 25600000073 Fuse T3A/250V 4 P152-739-000 20511707K019 Counter decal 5 P152-740-000 20511605A040 Adapter decal 6 P152-727-000 25600000036 Warning label 7 P152-720-000 20511707019 Belt direction label...
  • Page 39 PONG Arcade Ver. Manual Part No. Code Name 1 P152-733-001 20511707K013A 220V nameplate 2 P152-734-001 20511707K014A TUV 220V nameplate 1 3 P152-735-000 20511707K015 AAMA port label 4 P152-736-000 20511707K016 AAMA cable label 5 P152-705-002 20511707K005B Wiring label 1 6 P152-737-000 20511707K017...
  • Page 40 PONG Arcade Ver. Manual 9.13 Electrical Components Part No. Code Name 1 P152-402-000 23407030001 Coder P152-405-000 22401170004 Orange button P152-401-000 22604000006 Micro SW P152-403-000 22401170002 White button 1P P152-404-000 22401170003 White button 2P P152-401-000 22604000006 Micro SW 4 P152-410-000 22002020001...
  • Page 41 PONG Arcade Ver. Manual Part No. Code Name 1 P152-612-000 23407010007 Motor driver 2 P152-611-000 23407010006 Stepping motor driver 3 P152-446-001 29711707009B Main board 4 P152-418-000 22803010008A Amplifier board P152-433-000 21702000022 Multimedia board P152-434-000 23305000022 Audio cable 6 P152-419-000 22807000002...
  • Page 42 PONG Arcade Ver. Manual Part No. Code Name 1 P152-438-000 20711006006 2 P152-426-000 21714000148A Fuse board 3 P152-417-000 23000000005 Counter 4 P152-416-000 21714000148 Fuse board P152-437-000 21602000106 Power supply P152-414-000 23301018004 Power cord P152-209-000 20211707K028 Cover fix plate 6 P152-406-000 21602000105...
  • Page 43 PONG Arcade Ver. Manual Part No. Code Name P152-413-000 23201000005 Filter P152-436-000 21901000010 Fuse Part No. Code Name 1 P152-429-000 23301040022 DC Power cord 2 P152-428-000 21603020001A AC adapter P152-420-000 22702000010 Fan net P152-409-000 22702010025 4 P152-431-000 29791400001 POT connect board...
  • Page 44 PONG Arcade Ver. Manual Part No. Code Name 1 P152-425-000 22301000002 Coin mechanism 2 P152-447-000 29790700002 Ticket converted board 3 P152-439-000 23100000005 Ticket dispenser P152-443-000 22003000003 LED(12V) light bulb P152-444-000 22201000028 12Vwhite light bracket Back side Front side Part No.

  • Page 45: Wiring Diagram

    PONG Arcade Ver. Manual 10. WIRING DIAGRAM 08/13/2019...
  • Page 46 PONG Arcade Ver. Manual 08/13/2019...
  • Page 47 PONG Arcade Ver. Manual 08/13/2019...
  • Page 48 PONG Arcade Ver. Manual MAINTENANCE LIST The items listed below should be reviewed as required. Ball OK/NG Sign Check quarterly. If the bottom of the Ball has dirt, utilize the non-woven fabric with distilled water to clean. If the bottom of the Ball is damaged, replace the Teflon tape on the ball.
