Summary of Contents for Neuation iRUPT JR

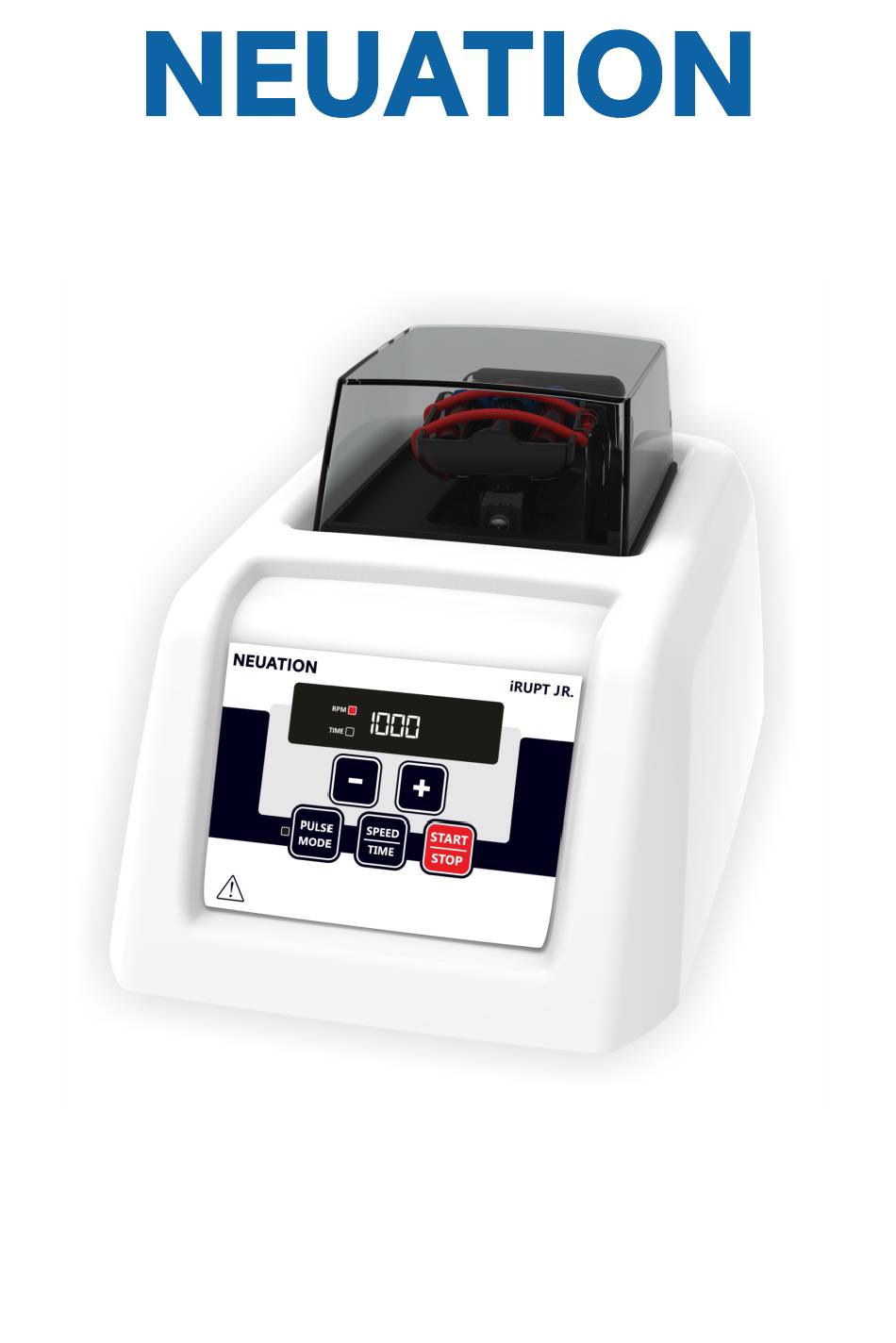

- Page 1 JR. PRODUCT USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION INTENDED USE FEATURES STANDARD ACCESSORIES OPTIONAL ACCESSORIES TECHNICAL SPECIFICATIONS SAFETY PRECAUTIONS INSTALLATION STANDARD PARTS LISTING USER INTERFACE AND DISPLAY OPERATING THE INSTRUMENT MAINTENANCE AND CLEANING TROUBLESHOOTING WARRANTY STATEMENT PRODUCT DISPOSAL... -
Page 4: Introduction
1. INTRODUCTION This manual provides important safety information for this homogenizer. It should be kept near the homogenizer for quick & easy reference. This homogenizer is equipped with a powerful & reliable motor, a large digital display & a simple interface for silent &... -
Page 5: Optional Accessories
3 additional tension springs · 5. OPTIONAL ACCESSORIES 2ml screw cap tubes, Power adapter · Homogenizing beads · 6. TECHNICAL SPECIFICATIONS Capacity 3 x 2 ml Speed 2800 to 4000 RPM Run Time 3 to 180 Sec Pulse Mode Pulse Mode On Time 3 to 99 Sec Pulse Mode Off Time 3 to 99 Sec... - Page 6 Never move the homogenizer while operational. · The tube holder and holder lid must always be securely fastened. If the · homogenizer makes unusual noise during operation, the tube holder or tube holder lid fit needs to be checked. Switch OFF the device immediately by pressing STOP, check tube holder fit &...
-
Page 7: Installation
corrosion or mechanical damage should not be used, contact your local supplier or mfg for replacement tube holder & parts. Do not fill tubes while they are in the holders. Liquid spillage may harm the · device. In the event of contamination caused by aggressive agents, the holder& inner ·... -
Page 8: Standard Parts Listing
supply as shown in the figure below. Insert the power cord at the back of instrument in power input socket (shown · in picture). Ensure the power switch is OFF while connecting the power adapter. If matched correctly the plug will go in easily without much force (do not try to ·... - Page 9 Button No Function Indication Start To start program Stop To stop running program Pulse To turn on/off Pulse mode Mode To set speed in rpm, it can be adjusted from Speed 2800 to 4000 rpm in 50 rpm increment To set run time in seconds. It can be set from Time 3 To 180 sec.
-
Page 10: Operating The Instrument
11. OPERATING THE INSTRUMENT START UP: Press power button located on the back of the instrument near power input to turn the machine ON/OFF. The instrument keys works only when the lid is closed with last run program on the display. -
Page 11: Pulse Mode
To Set & run program with speed 3500 rpm, run time 90 sec, No pulse mode condition. Switch on Instrument by pressing ON/OFF switch near power supply. · Set test samples, lock the tubes with O-Ring & Close the lid. ·... -
Page 12: Maintenance And Cleaning
12. MAINTENANCE AND CLEANING The tube adapter and the outside of the instrument should be cleaned regularly with a moist cloth. Ensure that while cleaning the unit it is not plugged in. Wear protective gloves and safety glasses while operating and cleaning the device. -
Page 13: Important Note
Poblem Possible cause Action Faulty Controller Instrument Faulty Motor Contact suppliers cannot run Faulty hall sensor Abnormal Faulty Bearing or spring Contact suppliers running noise Pulg connector loose Contact suppliers Keys do not Faulty key Work Faulty hall sensor Lid Open Close lid Lid not properly closed Close lid properly... -
Page 14: Product Disposal
charges must be paid. Note: Some states do not allow limitation on the length of implied warranties or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights. This warranty is given expressly in lieu of all other warranties, expressed or implied. The purchaser agrees that there is no warranty of merchant-ability or of fitness for any intended purpose and there are no other remedies or warranties, implied, which extend beyond the description on the face of the agreement. - Page 16 Accumax Lab Devices Private Limited Plot No. 15, 16 & 32 GIDC Electronic Park SEZ, Sector 26, Gandhinagar, Gujarat, India - 382026. Website: www.accumaxlab.com...
