Summary of Contents for Wampat W01A3181B

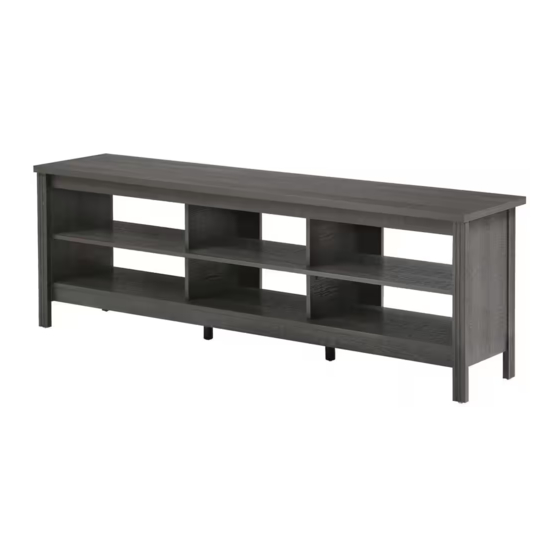

- Page 1 Assembly Instructions W01A3181B W01A3184E W01A3182O...
- Page 3 １...
- Page 4 x 38 x 38 x 16 x 12 Cam bolt Cam lock Wooden dowel JCBCW Screw Sticker x 26 M4 Allen key PVC nail with pin Screw L-iron Philips screwdriverr Slotted screwdriver Hammer Tools Required(Not included) ２...
- Page 5 · Gently screw cam bolts (A) into panels (3,4,5,6). ３...
- Page 6 · Insert dowels (C) into panel (2). · Attach panels (4,6) to panel (2). · Insert and secure cam locks (B) to panel (2) to lock it. ４...
- Page 7 · Insert dowels (C) into panel (1). · Attach panels (3,5) to panel (1). · Insert and secure cam locks (B) to panel (1) to lock it. ５...
- Page 8 x 14 · Gently screw cam bolts (A) into panels (1,2,5,6). ６...
- Page 9 L1<L2 · Attach panels (10) to panel (8) with screws (D). ７...
- Page 10 · Gently screw cam bolts (A) into panel (8). ８...
- Page 11 · Attach panels (11) to panel (8). · Insert and secure cam locks (B) to panels (11) to lock it. ９...
- Page 12 · Attach parts (I) to panels (12) with screws (H). １０...
- Page 13 x 14 · Attach panels (12) to panel (9) with screws (H). · Attach parts (J) to panel (9) with screws (H) correctly. １１...
- Page 14 L1<L2 · Attach panel (9) to panels (11) with screws (D) correctly. １２...
- Page 15 · Insert dowels (C) into panels (8,9). · Attach left side panel to panels (8,9,12). · Insert and secure cam locks (B) to panels (8,9,12) to lock it. １3...
- Page 16 Finished edge · Insert dowels (C) into panels (8,9). · Attach panel (12) to left side panel correctly. · Attach right side panel to panels (8,9,12). · Insert and secure cam locks (B) to panels (8,9,12) to lock it. １４...
- Page 17 x 12 · Knock pins (G) into panels (3,4,5,6). · Gently screw cam bolts (A) into panel (7). １５...
- Page 18 · Attach panel (7) to panels (1,2,10). · Insert and secure cam locks (B) to panels (1,2,10) to lock it. １６...
- Page 19 · Attach panels (13) to panel (7). · Insert and secure cam locks (B) to panels (13) to lock it. · Attach panels (13) to panels (8,9) with screws (D). １７...
- Page 20 · Attach panel (12) to panel (7) with screws (H). １9...
- Page 21 x 12 · Stick stickers (E) on cam locks (B). · Adjust legs (J) to level the unit.
