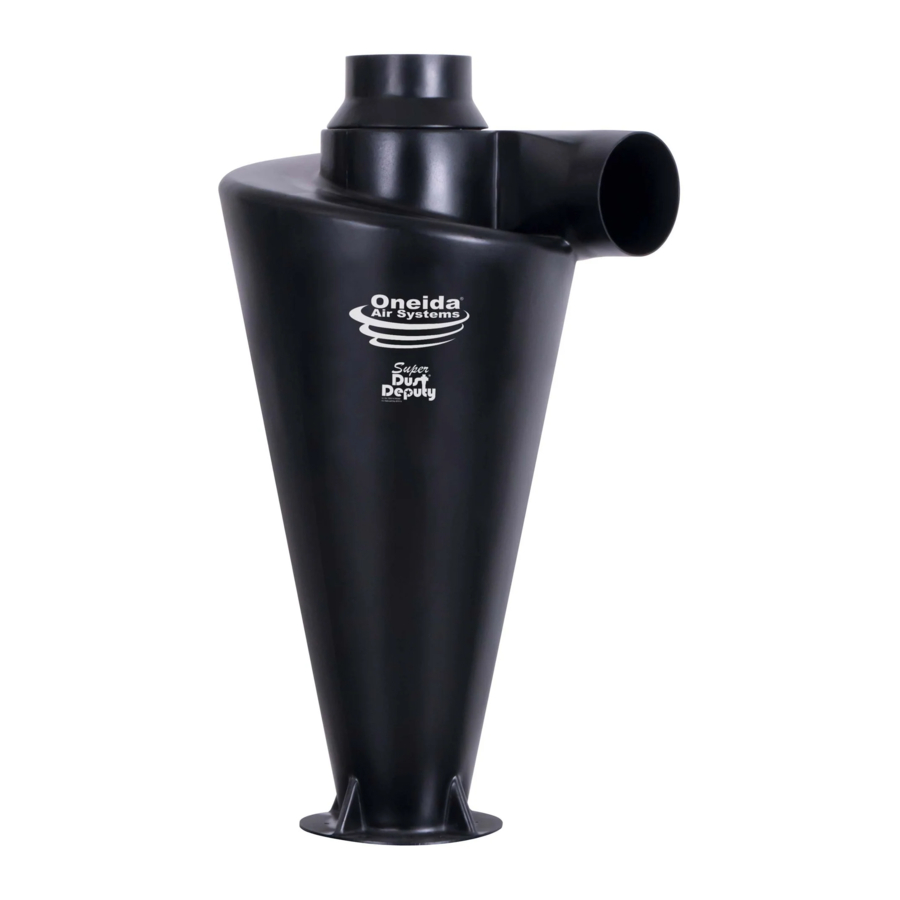

Oneida Air Systems Super Dust Deputy / XL / Deluxe 4 Manual

Troubleshooting

  • Product is not separating well

(Only a tiny amount of dust should reach the collector.)
Air leak. Check cyclone flange / drum lid / barrel. Even small leaks will affect performance.

  • Low air volume

Vacuum filter clogged. Blockage in hose.

  • Material swirls in cyclone and won't drop down into drum.
    Air leak in bottom of cyclone / drum lid or dust drum.
    Large, bulkier material might swirl. Restart or temporarily cut off air flow to drop material down.
  • Air leak around top outlet

Too much torque from the outlet hose on outlet. Support hose weight to relieve pressure on outlet.

Examples of Product Set-Ups

These are examples of actual customer set-ups that they made using their Super Dust Deputys. As long as your dust drum is strong enough so it will not collapse, and it will make an air-tight seal, you are only limited by your imagination!
Examples of Product Set-Ups - Example 1
Examples of Product Set-Ups - Example 2

Kit Contents

Super Dust Deputy Deluxe 4" - AXD002040A
Contents:

  • Drum Cyclone 19" Cyclone
  • 15 Gal. Fiber Drum w/ Clamp
  • Reducer
  • Gasket for Drum Lid
  • Owner's Manual - ZBM000036SDDXLA

Super Kit Contents
Super Dust Deputy - AXD002030A /
Super Dust Deputy XL - AXD002030AXL

Contents:

  • Drum Cyclone 16" Cyclone - VXC160001A (1) or
  • Drum Cyclone 18" Cyclone - VXC180001A (1)
  • Roll of Gasket - 24" x 1/4" x 1/4" RGZ250250(1)
  • Bolts 1/4-20x 3/4" Hex Head - AFS015920 (6)
  • Washer Flat 1/4" - AFW025000 (12)
  • Whiz Lock Nut 1/4" - AFT000005 (6)
  • Owner's Manual - ZBM000036SDDXLA

Dimensions

AXD002040A
Super Deluxe 4 Dimensions - Part 1
Super Deluxe 4 Dimensions - Part 2

Super Dust Deputy 5 & 6 Dimensions

Accessories

for 5" & 6" only


Adapter
May be needed to connect 6" Flex Hose to outlet.

Part # Description
DAO060000 6" Adapter


Reducers
You may need reducers depending on the size of the dust ports on your machines.

Part # Description
DRL060500 6" to 5"
DRL060400 6" to 4"
DRL001205 5" to 4"
DRL050300 5" to 3"


Dust Drums
Other drums are available also. Please check the website.

Part # Description
SXK170601 17 Gal. Steel Drum Kit


Flex Hose
Sold in pre-cut lengths of 5' / 10' / 25'
Other lengths may be available.

Part # Description
DHF030000 3" Dia.
DHF040000 4" Dia.
DHF050000 5" Dia.
DHF060000 6" Dia.


Heavy Duty Plastic Bags
Sold in packs of ten.

Part # Description
AXD600300 1.5 mil. 16"x 14"x 36"


Side Braces

Part # Description
AHX000004 Braces


HEPA Filter Retrofit Kit for Single Stage Collectors.
Collector Not Included.

Part # Description
FXK011820 HEPA Filter Retrofit Kit

Keep your shop clean by preventing ultra-fine dust from blowing out of your single-stage bag collector and into your shop air.
Add a best-in-filtration GE H12 HEPA filter to your current single stage dust collector.


Super Cartridge Filter Retrofit Kit

  • Catches the micro-fine dust.
  • Small footprint.
  • Quick clean out dust pan.
Part # Description
FXK010039 39" L x 13" D / 7" Inlet / 95 Sq. Ft.
FXK010000 62" L x 18" D / 8" Inlet / 130 Sq. Ft.


Filter Media
ASHRAE Tested
  • High Efficiency Axtar Spun-Bonded Media
  • Teflon-Like Coating to Facilitate Dust Cake Release
  • Filter Media Captures 99.9% ot Test Material from 0.2 - 2 Microns @ 11 FPM Accredited, Independent Lab Tested
Included
  • High Efficiency Filter Cartridge / Dust Drum
  • Filter Cap with Holes for Hanging Hardware
Optional May be required for installation:
  • Elbows / Reducers
  • Flex Hose / Duct Hanger / Pipe Hangers

*Oneida reserves the right to change or modify specs and system appearance without notice. Actual system appearance may vary.

General Assembly Instructions

For Deluxe 4" only

Deluxe 4
Apply strip gasket material on perimeter of bottom of cyclone lid. (Ill. 1)

Deluxe 4
Place cyclone on drum. (III.2)
Place clamp in place and snap closed. Install reducer in top outlet hole.

Firmly insert reducer in place.
(Sealant may be required - Not Included)
Install your 4 inch flex hoses from your machines to the inlet and from the cyclone outlet to your dust collector using a suitable hose clamp.
For best performance, keep hoses as straight and as short as practical.
Empty your drum when 2/3 full, check often. Any air leaks in drum or seal between lid and drum will diminish separation performance.
Never allow sparks or material that may possibly be smoldering or burning to enter the system.
Read and observe all safety instructions stated elsewhere in this manual as well as for your dust collector and machinery generating dust.

*Do not let the hose weight over torque the top outlet. Small leaks may occur.

For 5" & 6" only

  1. Apply gasket around the flange bottom of the cyclone, making sure that the gasket goes inside the bolt holes and around the fin indentions for the regular Super Dust Deputy (Fig. 1) and outside the bolt holes and around the fin indentions for the XL version (Fig.2). An air tight seal is extremely important for good dust collection. Make sure ends of gasket butt together and there are no gaps.
  2. Turn cyclone upside-down and place it on the floor or other flat surface. Turn drum lid over and align bolt holes in lid with bolt holes in cyclone base. Put bolt through washer, then put bolt and washer through lid from the underside of lid, one more washer for under the nut and attach with whiz nut. Tighten nut and repeat with all six bolts. Thoroughly tighten hardware to eliminate air leaks. (Fig.4A & 4B)
    Assembly Instructions for 5
  3. Put cyclone and lid on top of optional dust drum then attach and seal with clamp ring. (Fig.3)
  4. When you attach the hose from your tool to the inlet, you may need to use a reducer depending on the size of your tools' dust collection outlet.
  5. Attach 6" hose to the Super Dust Deputy's or the XL's top outlet with a hose clamp, then connect the other end to your collectors' fan blower as shown in the diagram below.(Fig.5)
    Do not let the hose weight over torque the top outlet. Small leaks may occur.
    Assembly Instructions for 5
  6. Make sure there are no air leaks at the connections. Make sure to check your dust drum frequently so you do not overfill it.
  7. You may need to use an adapter to connect the 6" flex hose to outlet. See accessories page. (Fig. 6)
    #DAO060000

System Start-Up Information

Safety Instructions to be Strictly Followed

Read the installation and maintenance instructions as well as the recommended safety practices in this manual and your shop vacuum or dust collector's owner's manual before assembling and using the Super Dust Deputy.

  • Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes or any hot substance!
  • Do not vacuum, or use this Super Dust Deputy near flammable or combustible liquids, gases, or explosive dusts, such as gasoline or other fuels, lighter fluid, cleaners, oil-based paints, natural gas, hydrogen, coal dust, magnesium dust, grain dust, aluminum dust, sugar dust, flour dust or gun powder.
  • To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials unless a HEPA filter is used. Do not use or store near hazardous materials.
  • The Super Dust Deputy is made from static dissipating plastic. Additional grounding may be necessary in certain applications. Call Oneida with any questions.
  • Wood dust mixtures are highly flammable and can be explosive.
    NEVER introduce sparks or sources of ignition into collector
    1. Dump drum after each use.
    2. Ground system if necessary
  • NEVER leave wood dust in a building or vehicle.
  • Keep fire extinguishers handy at all times.
  • Can be used for collecting non-flammable liquids.
  • Always read your shop vacuum or dust collector's owner's manual for safety procedures regarding the operation of your shop vacuum.
  • Dispose of waste in a FIRE SAFE AREA.


WARNING/SAFETY
Some dusts are highly flammable or explosive. Learn/know what you are dealing with. Follow all local, state, federal & NFPA codes and guide lines.

Fire Hazards and Codes


Explosion and fire hazard! Never vacuum flammable fluids or gas, oil, alcohol, solvents, etc. Do not operate near flammable fluids or gas. Never vacuum warm fluids or materials at more than 140 deg F (60 deg C), such as burning cigarettes, ashes, glowing coals, etc


Do not vacuum hazardous/carcinogenic dust unless a HEPA filter is installed.
Always keep filter cartridge clean so the vacuum operates properly.
Empty Dust Deputy waste can frequently. Never leave flammable material in your Dust Deputy or shop vacuum

1.800.732.4065
www.oneida-air.com
